Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1320E/1500E/1680E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000 to $200,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box

Description
Weight: 18T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Dimension(l*w*h): 7500*4600*2260mm
Type: Die-cutting Machine,Paper Cutting Machine Computerized: Yes
Power(w): 20KW Name: Die Cutting Machine
High Light:

420mm sheet Die Cutting Stripping Machine

,

Feeder Die Cutting Stripping Machine

,

5000s/h cardboard box die cutting machine

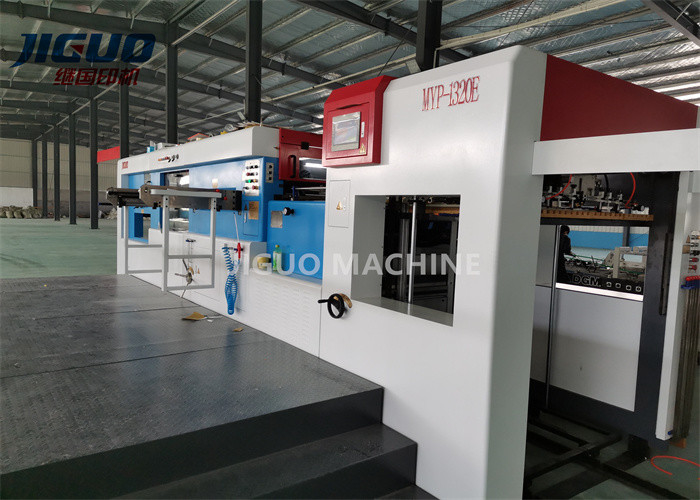

MYP-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Stripping Machine



Main Features


1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Feeder feeding paper. The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is. Equipped with light-adjusted device and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper aligning.
4. Automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly. Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.
5. Pneumatic take samples when machine working, can check the die cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.



Products Description​

PARAMETER
Model MYP-1320E MYP-1500E MYP-1680E
Max. sheet size 1320X960(mm) 1500X1105(mm) 1680X1235(mm)
Min. sheet size 450X400(mm) 500X420(mm) 580X500(mm)
Max. die cutting size 1300X940(mm) 1480X1090(mm) 1660X1220(mm)
Max.cutting speed 6000s/h 5000s/h 4500s/h
Die cutting precision ±0.15mm ±0.18mm ±0.2mm
Sheet thickness

200-2000g/㎡(Cardboard)

≤8mm(corrugated board)

250-2500g/㎡(Cardboard)

≤8mm(corrugated board)

250-2500g/㎡(Cardboard)

≤8mm(corrugated board)

Max.pressure 380T 400T 480T
Total power 20kw 20kw 20kw
Net weight 18T 20T 23T
Overall dimension 7500X4600X2260mm 7990X5100X2260mm 8900X5450X2500mm
Air requirements 0.8Mpa,>0.36m³/min 0.8Mpa,>0.36m³/min 0.8Mpa,>0.36m³/min



Advantage

  • Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
  • Automatic pressure control make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.
  • Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.
  • It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.
  • Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.



420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 0



420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 1



420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 2



420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 3



420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 4

420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 5420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 6420mm Sheet Die Cutting Stripping Machine Feeder 5000s/H Cardboard Box 7

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
