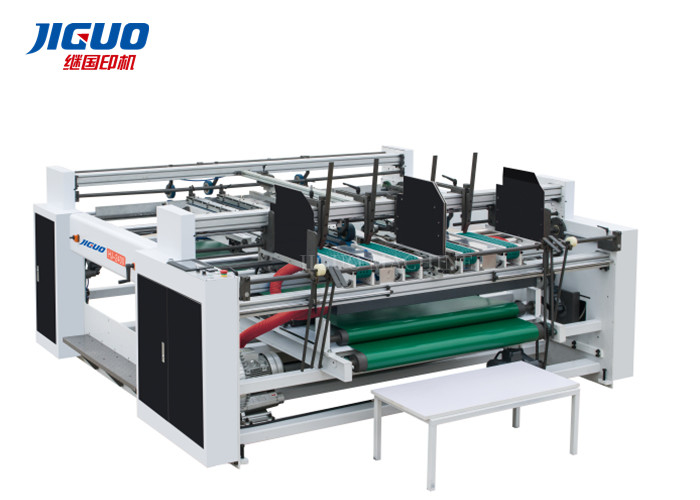

Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper

Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper
Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper

Large Image :  Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper

Product Details:
Place of Origin: China
Brand Name: JIGUO
Model Number: AF-2300B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD40000~50000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper

Description
Certification: CE Certificate,CE ISO9001 Max.paper Size: 1150*1060mm
Min.paper Size: 470*260mm Sheet Thickness: A-E Corrugated Board, 5 Layer
Automatic Grade: Semi-automatic Total Weight: El2000KGectric
Machine Dimension: 3000*3050*1460mm Box Type:: Cardbaord Box
Product Name:: Folder Gluer Machine Product Keywords:: Carton Box Folding Glue Machine
High Light:

1150x1060mm paper semi automatic carton gluing machine

,

corrugated box carton gluing machine

,

1060mm box folding and gluing machine

AF-2300B semi automatic carton folder gluer machine for corrugated box

Features



High speed semi-auto folder gluer suit for AA, AB two piece box and single piece box. It instead manual glue, reduce labor intensity. Machine Features: high degree of automatic, reduce labour, improve product quality and effective, reduce work cost. Only need two workers operate it, one worker feed sheet and collect finished boxes, another worker fold and rectify boxes. Reduce space for machine. Working range of sheet: A-E flute.



Machine adopt double variable-frequency motor, PLC centralize control, drive and control precision.

High-power adsorption device for feed system, feed single and double piece of sheet. Independ servo motor for left and right feed wheel for double pieces sheet feeding. When sheet to out place stop feed.



When make two piece box, sheets can be glued during feed( hot-melt glue in the middle), three side pneumatic fix position, top pneumatic press, two piece sheets adhesive to one, glue firmly.



Press part is final set. After glue to one-piece fold by manual and rectify problem of line and flute cross. Go to press belt to finish product.

Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper 0



Specifications

PARAMETER
Model AF-2300B
Max.paper size
1150*1060mm
Min.paper size 470*260mm
Max. working speed 3000s/h
Power 11KW
Sheet thickness A-E Corrugated board, 5 layer
Total Weight 2000KG
Machine Dimension
3000*3050*1460mm



Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper 1

Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper 2



Semi Automatic Corrugated Box Carton Gluing Machine 1150x1060mm Paper 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
