Die Cutting Stripping Machine
Created with Pixso. Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine

Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine

Brand Name: JIGUO
Model Number: MYP-1060E/1080E
MOQ: 1 set
Price: $80,000 to $150,000/1 Set
Delivery Time: 45 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE
Weight:
16T
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Dimension(l*w*h):
(5100+1450)*(2280+1850)*(2230+670)mm
Type:
Die-cutting Machine,Paper Cutting Machine
Computerized:
Yes
Power(w):
18KW
Name:
Die Cutting Machine
Packaging Details:
Wrap film or box
Supply Ability:
50 set
Highlight:

1060mm carton waste stripping machine

,

760mm carton waste stripping machine

,

760mm cardboard die cutting machine

Product Description
MYP-1060E/1080E Automatic flatbed die cutting and stripping machine

JIGUO 1080E Automatic Die Cutting and Stripping Machine is the main equipment for making high-grade color box, plug and different shapes of ink cartons.The machine adopts Anchuan servo system, Gogol four axes motion controller, non-pressure feeding system, high strength gripper teeth row, whole swing front guide, automatic pushing guide, high precision interval structure, pneumatic locking plate. Pneumatic clutch, overload protector, automatic paper collecting, makes our machine has a short paper feeding distance, positioning correctly, paper collecting in order, can also do non-gripper die cutting.Computer control makes the whole machine running automatically, man-machine interface display the working condition and trouble dealing method. Key components, control systems and fasteners are imported and carefully assembled to ensure the safety and reliability of the machine. With many sensors and protection devices to ensure machine working and workers safety.


Products Description​



    PARAMETER
Model MYP-1060E/MYP-1080E
Max. sheet size

1060X760(mm)/

1080X780(mm)

Min. sheet size 400X370(mm)
Max. die cutting size 1030X750(mm)
Max.cutting speed 7500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~3mm

Max.pressure 320T
Total power 18kw
Net weight 16T
Overall dimension 6400 x 3950 x 2360mm
Air requirements 0.8Mpa,>0.36m³/min

1. Automatic vacuum paper, orderly and clean
2. Non-stop delivery gate plate can improve efficiency. When the paper stack is high enough, we can pull out the collect cardboard and push-in another piece deceive paper gate plate to change at the same time, thus achieved the non-stop delivery.
3. Pneumatic sampling, which are accessible at any time to check the die cutting paper, very convenient.

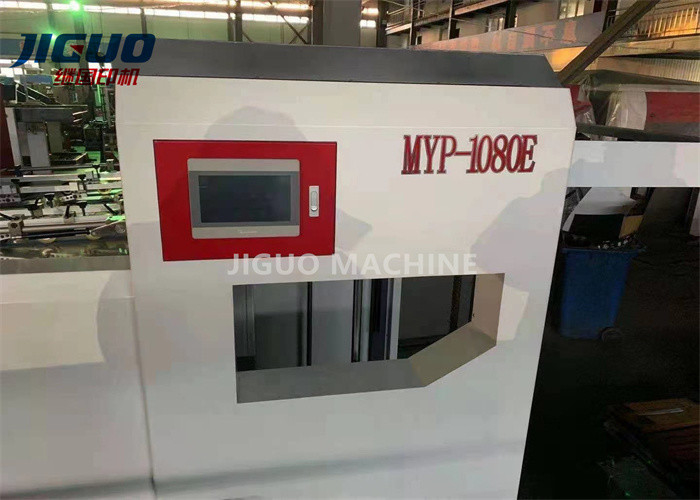

Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine 0



Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine 1

Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine 2Automatic Carton Waste Stripping Machine Cardboard Die Cutting Machine 3



FAQ

1.Q:Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q:What is your delivery time ?

A:Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q:How was your machine warranty ?

A:our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q:How can you do after sales service ?

A:beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q:What’s your payment terms ?

A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
