Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine

Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine
Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine

Large Image :  Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: AFS-2500A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD150000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine

Description
Max. Paper Width: 1000mm Min. Paper Width: 300mm
Machine Width: 4.2m Stitching Speed(Nails/Min): 1100
Paste Speed: 130 Meter/Min Automatic Grade: Automatic
Driven Type: Electric Packaging Type: Cartons
Certification: CE Certificate,CE ISO9001 Warranty: 1 Year
Name: Corrugated Carton Folder Gluer Machine,auto Box Folder Gluer Machine/box Folding Gluing Machine,Cheap Carton Box Fully Automatic Paperboard Folder Gluer Machine Box Forming: Either Side Folds; Both Sides Fold; Bottom Fold,4/6 Corner Box,Folder Gluer
Highlight:

1000mm Folder Gluer Machine

,

Wire Touching Pasting Folder Gluer Machine

,

Pasting carton gluing machine

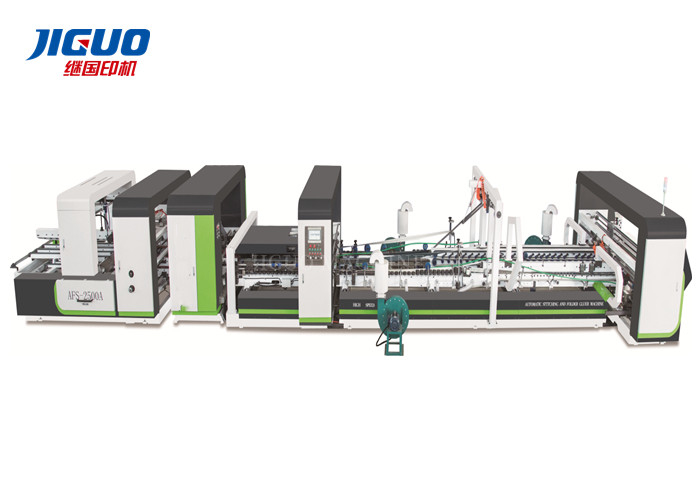

AFS-2500AP Digital High-Speed Wire-Touching And Pasting Machine Folder Gluer Machine



This seried folding gluing machine is packet type machine, adopts advanced domestic technology,two-purpose machine, adopts electrical regulating board, PLC, imported electronic components,feeding section adopt mechanic continuously variable, stable and easy to control and operate.



The machine is especially designed for all kinds of cardboard, corrugated packaging boxes,has correction function, make corrugated boxes perfectly meet the requirements of auto packaging together. (we can design according to the customer's

intention.)



Perfect solution to work in the heavy packaging industry.Wide range of accessories that allows to different kinds of designs.Fast, steady and precise machine, easy to set up and operate.


All sections with independent motor driving system.Motorized carrier movement with high precision linear guides.Able to produce complex carton structures, straigh line, lock bottom and more.



Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 0



Specifications

PARAMETER
Model AFS-2500AP
Max. Paper Width 1000mm
Min. Paper Width 300mm
Machine Width 4.2m
Machine Length 16m
Max. Paper Length 2500mm
Min. Paper Length 880mm
Max. TS Width 40mm
Power Required 28.5Kw
Installation Area 16000×4200mm
Stitching Speed(Nails/Min) 1100
Machine Weight 12.5T
Pitch of Nails for Single Nail and Double Nails (Min.-Max.) 30-90mm
Pitch of Nails for Intensive Nail(Min.-Max.) 30-70mm
Paste Speed 130 Meter/Min
Air Pressure 0.6-0.8Mpa





Production Component



Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 1 Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 2
Feed section
With nine pieces of 50mm width air sucking feeding belts. The metal plate of 10mm thickness can be adjusted horizontally for different width.

Aligner section

Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.

























Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 3 Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 4

Main drive
Standard lower glue pos. each left and right side.

Optional electronic gluing system

Rectify folding section
Paper Correction: Equipped with auto- conection device to correct the obliquity and ensure the correct feeding.

Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 5 Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 6

collecting sections

1.Adjust the pressure easily and reliably to ensure the gluing quality; Equipped with pneumatic counting device which makes the counting conveniently.

2.The press is equipped with independent speeder. The operator can set the collecting speed according to the packing speed.

Transmission

1.Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.Press has two functions:

2.1/waiting, when feeding is paused, press will auto enter into waiting station,



Product display



Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 7

Digital Folder Gluer Machine Wire Touching Pasting Carton Gluing Machine 8







FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
