Product Details:
|
| Weight: | 21T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 8250*5300*2500mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Semi-automatic |
| Power(w): | 16.5KW | Name: | Semi Automatic Die Cutting Machine |
| High Light: | JIGUO die cutting stripping machine,Semi Automatic die cutting stripping machine,cardboard box die cutting machine |
||

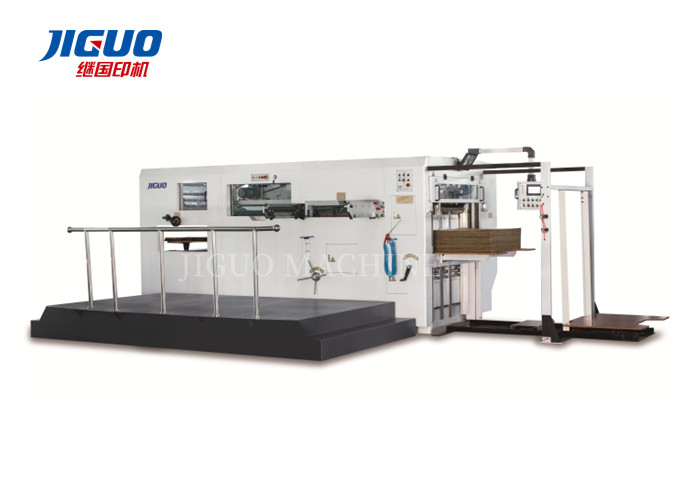

Applications
Our die cutting machine is an indispensable piece of post press equipment which is widely
used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing
boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the
desired material into large numbers of the same shape.
Features
1. Our die cut machine is manufactured using high quality material for high strength
2. It adopts a 3-step helical gear mechanism, resulting in stable operation, large cutting force,
and low noise.
3. Single disc electromagnetic clutch ensures agile, reliable operation
4. Reasonably designed operational altitude, moving bed with a large open angle
5. Electrical system is designed in accordance with IEC standard.
6. Single sheet die cutting, continuous die cutting operations, adjustable delay range
7. Reliable safety system ensures operator safety.
| PARAMETER | |
| Model | BMY-1680P |
| Max. sheet size | 1680X1235(mm) |
| Min. sheet size | 580X500(mm) |
| Max. die cutting size | 1660X1220(mm) |
| Max.cutting speed | 4200s/h |
| Sheet thickness |
250-2500g/㎡(Card paper) ＜8mm(corrugated paper) |
| Max.pressure | 480T |
| Total power | 16.5kw |
| Net weight | 21T |
| Overall dimension | 8250X5300X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Advantages
1. Our die cutting machine uses centralized lubrication pump system
2. It adopts world famous brand electrical components
3. Strengthened construction ensures smooth operation and long service life.
