Product Details:
|
| Weight: | 18T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7650*4850*2260mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Semi-automatic |
| Power(w): | 15KW | Name: | Semi Automatic Die Cutting Machine |
| High Light: | Semi Automatic Die Cutting Machine,Semi Automatic Die Cutting Machine,Three Stripping paper die cutting machine |
||
Detail Product Description

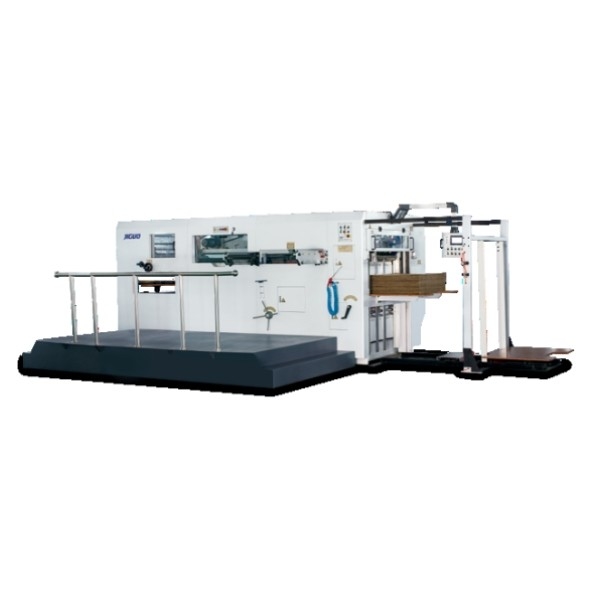

1.Semi-automatic die-cutting and stripping machine It suits for 250-2500g/m²
cardboard, corrugated paper below 8mm.
2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section.
And it can finish feeding,die cutting,stripping and collecting work cycle automatically.
3.The feeder suction and conveyor ESD system can transport the plastic sheet smoothly.
It adopts to import heated galvanic and temperature control system,which adjust 12 stages
independently,and it also ensure the temperature stability,that solve the white edge of
die cutting plastic material and burr phenomenon.
4.The machine is equipped with automatic lubrication system.And the swing rod and
copper tile are all reworked by hand .we scrap the surface and make it full of criss-cross
scrath. the groove hold more oil that can ensure smooth going of the operation,
and the precision of the pattern.
| PARAMETER | |
| Model | BMY-1500P |
| Max. sheet size | 1500X1105(mm) |
| Min. sheet size | 500X420(mm) |
| Max. die cutting size | 1480X1090(mm) |
| Max.cutting speed | 5000s/h |
| Sheet thickness |
250-2500g/㎡(Card paper) ＜8mm(corrugated paper) |
| Max.pressure | 400T |
| Total power | 15kw |
| Net weight | 18T |
| Overall dimension | 7650X4850X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Description
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
