Machine Introduction

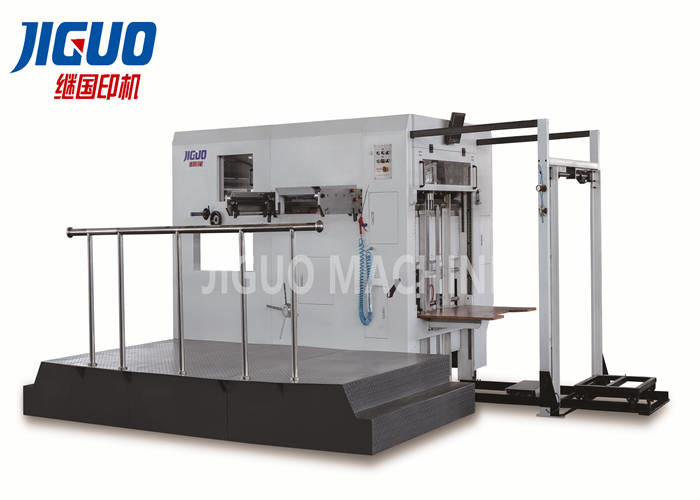

The BMY-1320A Semi-Automatic Die Cutting and Creasing Machine is the main equipment
for making color box, carton and paper trademark.
Our machine equip with the high intensity gripper open teeth, overall swing front guide,
automatic pushing guide, high precision interval structure, pneumatic lock plate, pneumatic
clutch, overload protection and automatic paper collecting, makes the paper feeding
distance shorter, positioning precision high, die cutting steady, paper collecting orderliness,
can also do non-gripper die cutting.
| PARAMETER | |
| Model | BMY-1320A |
| Max. sheet size | 1320X960(mm) |
| Min. sheet size | 450X400(mm) |
| Max. die cutting size | 1300X940(mm) |
| Max.cutting speed | 6000s/h |
| Sheet thickness |
200-2000g/㎡(Card paper) ＜8mm(corrugated paper) |
| Max.pressure | 380T |
| Total power | 14kw |
| Net weight | 14.5T |
| Overall dimension | 5800X4530X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Components and Features
1.Paper feeding part :Pre code paper, paper feeding platform, pneumatic bench
Pre code paper:Cylinder sliding angle aluminum, easy and fast to operate. The operator
needs to put the processed paper into the pre-code paper trolley, and put the trolley back to
paper feeding platform to continue the next working when the paper sets the lower limit.
Paper feeding platform: Automatic rising step distance can be set according to the paper
amount, the operation is easy and fast. With the characteristics of shorter feeding distance
and low labor intensity.
Pneumatic bench: The operator stand on the working platform, pneumatic adjusting the
height of machine according to different height of operator, easy to operate, saving time
and effort.
2. Positioning part: the front guide, the side guide.
Front guide: The overall swing front swinging side guide have a small impact on the paper
edge, high positioning precision, with four sets of precision fiber switch(Taiwan Riko brand) to
check paper in place and avoid paper wasting.
Side guide: You can choose side guide based on different products, no need to replace
components, easy and quickly to adjust.
3. Die cutting part: transmission structure, intermittent structure, pneumatic clutch brake.
Transmission structure: New transmission design makes the high speed precision die cutting.
The main drive adopts worm gear and specialized designed crankshaft connecting rod structure,
the bearing bush connection will reduce the movement space, avoid the impacting of worm gear
and worm, high die-cutting pressure, have the function of high pressure. The 4 corners of moving
platform is equipped with decompression buffer spring and reduce machine wearing, makes the
machine running more steady.
Intermittent structure: Using high precision parallel ternary cam indexing structure, cam curve is
special designed, big traverse angle, take the gripper running more steady.
Pneumatic clutch brake: Control transmitting torque by adjusting the air pressure, low noise, good
braking performance. Automatic off the machine when the machine overload protection to avoid the
accident happening.
4. Electric control part: Motor, PLC and man-machine interface, electronic control system,
all kinds of safety protection device.
Motor: With imported Fuji inverter stepless speed control motor,makes the main motor saving energy,
low noise. The paper feeding and collecting reducer motor choose imported Taiwan electromagnetic
braking deceleration motor, with high safety performance, long service life and low running noise.
PLC and human-machine interface: Digital display the machine working speed and status,
the main motor is controlled by frequency converter, stepless speed controlling makes the running
more steady. Man-machine interface display system can display all kinds of working conditions,
fault location timely and proposed solutions.
Electrical control system: Microcomputer control process of automatic control and real-time
detection from to paper feeding, paper transmitting, die cutting, paper collecting.
All kinds of safety protection device: Horn alarm when problems happened, and off the
machine automatically to ensure human safety.
