Product Details:
|
| Weight: | 28T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | Type: | Die-cutting And Stripping Machine |
| Computerized: | Yes | Application: | Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers |
| Power: | 38KW | Overall Dimension: | 9900X5450X2500mm |
| Name: | JIGUO | Place Of Origin: | Hebei,China |
| High Light: | 4500s/h cardboard die cutting machine,480T pressure cardboard die cutting machine,480T paper stripping machine |
||

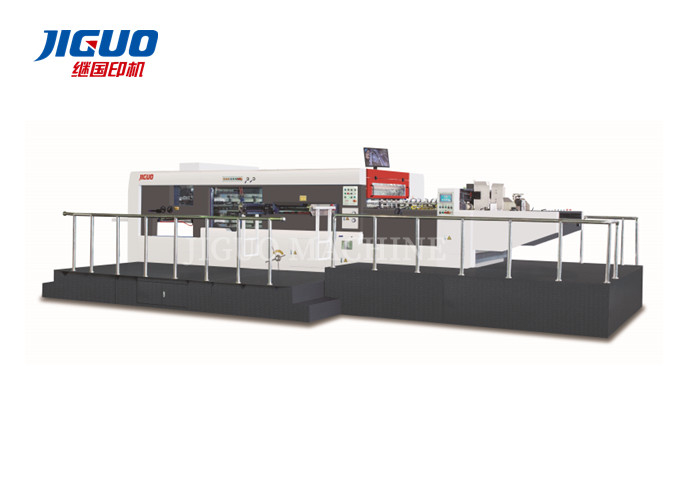

Products Description
| PARAMETER | |
| Model | MYP-1680Q |
| Max. sheet size | 1680X1235(mm) |
| Min. sheet size | 580X500(mm) |
| Max. die cutting size | 1660X1220(mm) |
| Max.cutting speed | 4500s/h |
| Die cutting precision | ±0.25mm |
| Sheet thickness |
<10mm |
| Max.pressure | 480T |
| Total power | 38kw |
| Net weight | 28T |
| Overall dimension |
9900X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Feeding Parts
Lead edge feeder
* Independent servo-type leading edge, paper feeding mode can adjust the transfer length
arbitrarily, maximizing reduce the damage to the strength of corrugated board
* Left and right baffle can be electrically adjusted
* Use high-power high-pressure fan to ensure smooth delivery of warped cardboard, air
volume can be adjusted by micro-machine to adapt to 3-9mm corrugated paper
Feeding table
* Adjustable brush and platen roller ensure accurate delivery of cardboard to front and side
gauges
* Advanced push gauge and pull gauge can accurately put the cardboard into the accurate
die-cutting position and enter the die-cutting section
* Taiwan Ruike photoelectric sensor can effectively prevent paper misplacement from entering
the machine, thus reducing the scrap rate and improving the die cutting accuracy
* The paper pressing part is controlled by the cylinder, which makes lifting easier
company information referance
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us.
