580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

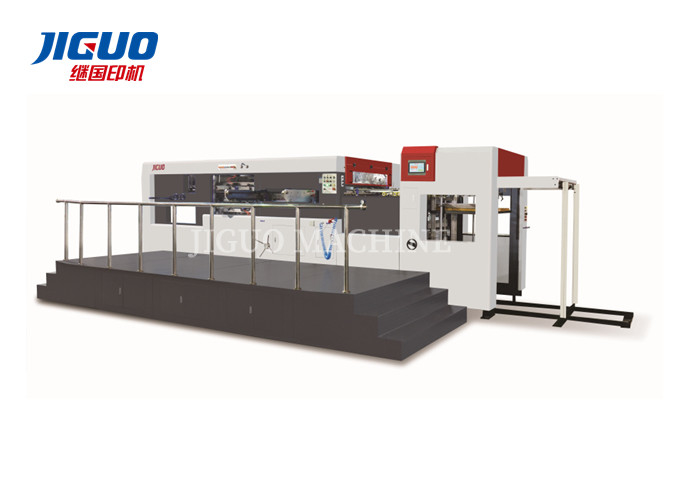

580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine

580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine
580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine

Large Image :  580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1680E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000 to $800,000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine

Description
Weight: 27T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Die-cutting Machine
Computerized: Yes Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Power: 20KW Overall Dimension: 10400X5450X2500mm
Name: JIGUO Machine Type: Flat Die Cutting
Place Of Origin: Hebei,China
High Light:

4500s/h Automatic Paper Die Cutting Machine

,

580mm Automatic Paper Die Cutting Machine

,

500mm paper emboss machine

MYP-1680E Automatic Die Cutting And Stripping Machine For Big Size Corrugated Paper



Product Description:
1. Complete design, accurate installation, high stability, high safety and low noise.


2. High-strength gripper, advanced gripper device can be applied to all kinds of corrugated paper. Positioning device ensures cutting accuracy.


3. The worm, the worm gear and the specially designed crankshaft connection device are linked through the bearing bush to reduce the movement gap and avoid the collision between the worm and the worm gear. Smooth operation and high cutting pressure. With high point pressure holding function. The worm gear is made of high wear-resistant aluminum bronze for durability.


4. Non-stop feeding device, shorten auxiliary time and improve efficiency.


5. Adopt leading edge feeding and secondary positioning mechanism to reduce the requirements for paper. During this process, workers' hands should be kept away from the cutting part to ensure safety.


6. Pneumatic clamping mechanism, mold change, material preparation is more convenient, the mold base is more firmly fixed, more accurate, and time-saving.


7. Programmable controller and man-machine interface.


8. Electronic control module design, using imported electronic components to ensure accuracy and reliability.


9. The front and rear cutting pressure can be adjusted separately, and the hand wheel is convenient.


10. 3 The waste removal frame works together, humanized design, and the waste removal board is easy to install and disassemble.


11. Automatic waste removal device, convenient for waste removal

580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 0



Products Description​

PARAMETER
Model MYP-1680E
Max. sheet size 1680X1235(mm)
Min. sheet size 580X500(mm)
Max. die cutting size 1660X1220(mm)
Max.cutting speed 4500s/h
Die cutting precision ±0.2mm
Sheet thickness

250-2500g/㎡(Card paper)

<8mm(corrugated paper)

Max.pressure 480T
Total power 20kw
Net weight 27T
Overall dimension

10400X5450X2500mm

Air requirements 0.8Mpa,>0.36m³/min



Local Details

580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 1



580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 2





580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 3



580mm X 500mm Automatic Paper Die Cutting Machine Stripping Paper Emboss Machine 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
