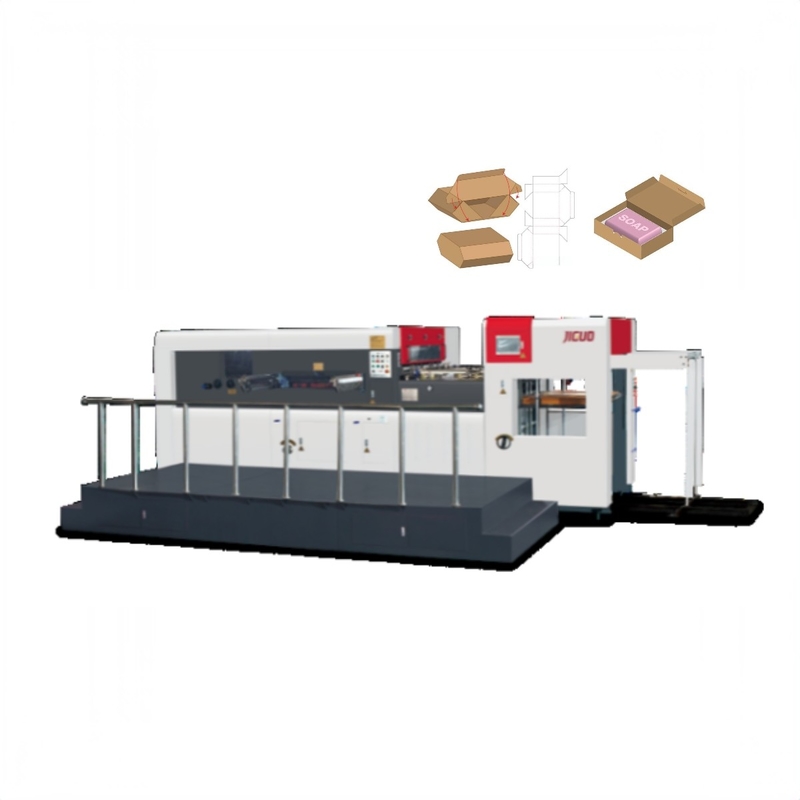

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard
JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard

Large Image :  JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1320E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $200,000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard

Description
Weight: 20T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Die-cutting Machine
Computerized: Yes Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Power: 20KW Overall Dimension: 8750X4600X2260mm
Name: JIGUO Machine Type: Flat Die Cutting
Place Of Origin: Hebei,China
High Light:

JIGUO Die Cutting Stripping Machine

,

Flatbed Die Cutting Stripping Machine

,

Corrugated Cardboard waste paper stripping machine

MYP-1320E Automatic Die Cutting Machine With Stripping Flat Bed Corrugated Cardboard Paper

Product description:
1.Complete design, accurate installation, high stability, high security, low noise.



2.High strength gripper, advanced gripper device can apply all kinds of corrugated paper. Positioning device ensure the cutting precision.


3.Worm, worm gear and special designed crankshaft connecting device is linked by bearing bush, reduce the movement clearance, avoid impact between worm and worm gear. Run steadily, high cutting pressure. It has a function of high point pressure hold. Worm gear is made of high wear-resisting aluminum bronze, it has long durability.


4.Non-stop feeding and delivery device can shorten the auxiliary time, improve the efficiency.


5.Adopt lead edge feeding, apply secondary positioning mechanism, lower the requirement about paper. During the process, keep the workers hands far away from the cutting section, ensure the safety.


6.Pneumatic die locking mechanism makes changing of die, make ready more convenient, die frame fix firmer, more accurate, time saving.


7.Programmable controller and man-machine interface.


8.Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.


9.Front and rear cutting pressure can be adjust separately, manual wheel makes it convenient.


10.3 waste stripping frames work together, human-friendly design, easy to install and uninstall the waste stripping plate.


11.Automatic waste stripping device can remove the waste easily.

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard 0



Products Description​

PARAMETER
Model MYP-1320E
Max. sheet size 1320X960(mm)
Min. sheet size 450X400(mm)
Max. die cutting size 1300X940(mm)
Max.cutting speed 6000s/h
Die cutting precision ±0.15mm
Sheet thickness

200-2000g/㎡(Card paper)

<8mm(corrugated paper)

Max.pressure 380T
Total power 20kw
Net weight 20T
Overall dimension

8750X4600X2260mm

Air requirements 0.8Mpa,>0.36m³/min



Local Details

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard 1



Application

This automatic die-cutting machine can be equipped with a waste removal function, which

is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper

Boxes,Corrugated Boxes,Adhensive Stickers,etc.

JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard 2





JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard 3



JIGUO Waste Paper Die Cutting Stripping Machine Flatbed Corrugated Cardboard 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us.
