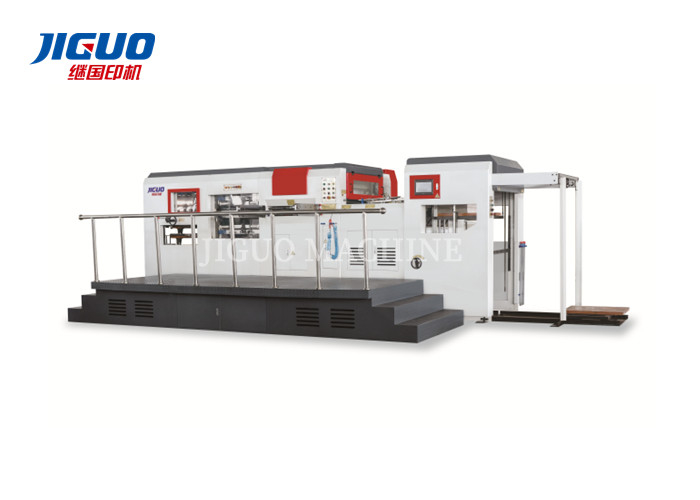

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes
7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes
7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes

Large Image :  7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes

Product Details:
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1080E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $110000 to $120000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes

Description
Place Of Origin: Hebei,China Max. Cutting Speed: 7500s/h
Weight: 18.5T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Die-cutting Machine
Computerized: Yes Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Power: 18KW Overall Dimension: 7500X3950X2360mm
Name: JIGUO Machine Type: Flat Die Cutting
High Light:

7500s/h creasing and die cutting machine

,

Stripping creasing and die cutting machine

,

7500s/h Automatic Die Cutting Machine

MYP-1080E Automatic Die Cutting Machine With Stripping Storage Wrap Package Carton Cardboard Craft Paper Boxes

Instruction :



JIGUO MYP-1080E,is a high-speed automatic die cutting machine ,the base,upper and lower platforms are made of ductile iron,performance is stable and it can withstand the pressure of 250-300t without any change in precision.The crankshaft is made of 40Cr material and ground by a high precision crankshaft grinder after the tempering treatment ,so it is of good material, high hardness, high precision, withstand heavy load and durable.The turbine and bearing shell are made of copper alloy and processed by advanced technology, high-precision equipment ,it is suitable for wear resistance under heavy load, and guarantee the service life of equipment.The rod of pendulum, bearing shell and the turbine all adopt the traditional hand scraping method, ensure that the lubricating effect and precision of the equipment are unchanged and durable even in the high speed and long time use .Bearing adopts imported high quality NSK and SKF brands.The chain and batch box uses the imported with original pack aging,which is of high precision and long life.The electrical appliances adopts Panasonic Plc and servo drive motor,pneumatic components adopts Airtac. With high configuration, high precision, wide application range and long life, this machine is a high cost-effective equipment , which can meet the needs of high and middle-end packaging enterprise .



Characteristics:



1.Pre-loading device,micro-adjustment function for the platform ,can save the time and improve the efficiency.



2.the paper transfer bridge adopts servo motor drive system,it can do the continuous feeding and sheet feeding,it can make the corrugated paper feed without overlapping and flatten.



3.The front guide and side guide make the location,and the push guide is used alternately to satisfy the different thickness paper.



4.The original German feeder chain, high precision and strong strength;thickened aluminum alloy gripper,which is with anode gasification treatment, strong rigidity ,small inertia and long life, it can meet the request of high-speed and accurate transfer of paper.



5.Die cutting station,the core part of the die-cutting machine,which is made of ductile iron casting and composed of high-precision machining parts, is of high precision and high pressure,it can satisfy the die cutting of dense mesh pattern, and the pressure can reach more than 250T.



6.Taiwan intermittent gearbox ,has high accuracy, no noise and long life.



7.Advanced automatic electrical control, unique and practical program design, imported electrical components , color touch screen,man-machine interface, it makes the operation much more intuitive, simple and convenient. All of them display the high end, atmosphere, function and quality of the machine.



7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 0



Products Description​

PARAMETER
Model MYP-1080E
Max. sheet size 1080X780(mm)
Min. sheet size 400X370(mm)
Max. die cutting size 1030X750(mm)
Max.cutting speed 7500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Max.pressure 320T
Total power 18kw
Net weight 18.5T
Overall dimension

7500X3950X2360mm

Air requirements 0.8Mpa,>0.36m³/min



Local Details

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 1



Application

This automatic die-cutting machine can be equipped with a waste removal function, which

is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper

Boxes,Corrugated Boxes,Adhensive Stickers,etc.

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 2



Payment & Delivery

Our company has become an internationally famous enterprises with products sold well all

over the country and exported to over 20 countries, including the United States, South

Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.

7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 3



7500s/H Creasing And Die Cutting Machine Stripping Craft Paper Boxes 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
