PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine

PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine
PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine

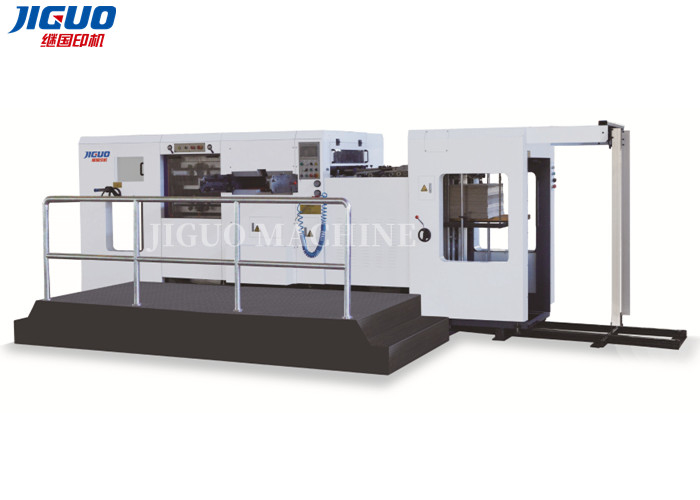

Large Image :  PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-880Fast
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $150,000/1 Set
Packaging Details: Box or as your request
Delivery Time: 35days
Payment Terms: L/C, T/T
Supply Ability: 1~5set

PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine

Description
Weight: 13T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Die-cutting Machine With Stripping
Computerized: Yes Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Power: 15KW Overall Dimension: 6600X3500X2000
Name: JIGUO Machine Type: Flat Die Cutting
Place Of Origin: Hebei,China Speed: 10000s/h
Highlight:

PVC paperboard die cutting machine

,

PP paperboard die cutting machine

,

Blanking Pneumatic Stripping Machine

 MYP-880Fast Automatic Creasing And Die Cutting Machine With Stripping Blanking



Feature



1. This machine is professionally processed and manufactured with scientific structure. Convenient operation, professional safety performance, high cutting pressure and high efficiency.



2. Suitable for cardboard, corrugated cardboard, PP, PVC, embossing printing, etc. Wide application field and long service life.



More features



1. Automatic feeding device: This device adopts powerful suction head with European technology. 4 suction and 5 feeding function, adjustable smooth and stable, can be adjusted according to paper style and different bending angles to obtain a wide range of applications. 2 sets of laser control devices to avoid collision, equipped with non-stop feeding system to improve work efficiency.



2. Die-cutting: The castings are made of high-strength resin sand technology, and the pneumatic clutch drives the high-precision worm and worm gear to ensure that the deformation of the die-cutting stress is small and the high-speed operation is stable. High-speed intermittent device drives German chain, special process aluminum alloy, double positioning to ensure accuracy. The frame, air lock device, and group change overturn device (optional) make it easier for the second mold change, bump cutting, and mold replacement, and also save time and cost. Automatic pressure regulating device (optional), the pressure regulation is easier and more controllable.



3. Feeding: It adopts synchronous conveying, running smoothly, and the feeding rack with air spring is more convenient to operate. There are push-pull dual-purpose side gauges on both sides, the front gauge positioning device is adjustable, and the imported laser positioning device makes the positioning more accurate. It also has empty sheet, slant sheet and double sheet control devices to ensure the accuracy and smoothness of paper feeding and reduce paper waste. The single-point clutch function can separate or synchronize paper feeding and cutting at any time, making the operation easier.



4. Stripping: a stripping device consisting of an upper frame, a middle frame and a lower frame. The three linkage frames transmit power with ease. The axis can do curvilinear motion. It can improve the demolding stability and cooperate with the center line to quickly change the mold. Pre-set shelves (optional) can be pre-typed outside the machine, reducing the time of typesetting. Stripping gas stop device to extend service life.



5. Paper feeding: It adopts mechanical transmission brush pressing device, with bidirectional blowing device, and paper feeding is smooth. Set the speed to slow down or stop feeding when the paper is full, or choose the auxiliary feeding device to feed paper without stopping. Air-controlled sampling, tabulation of any number of sheets, and automatic stop function when set to a fixed sheet.



6. Others: The machine adopts imported electrical components and imported bearings. Internal and external lubrication, internal oil circulation system, external PLC automatic control oil pump system, keeping the machine interface easy to operate, and has a fault display function, which can prompt faults through sound and light alarms and troubleshoot time. A flash drive (USB) makes it easy to upgrade the system.



PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine 0



Products Description​

PARAMETER
Model MYP-880Fast
Max. sheet size 880X610(mm)
Min. sheet size 320X240(mm)
Max. die cutting size 860X590(mm)
Max.cutting speed 10000s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Max.pressure 250T
Total power 15kw
Net weight 13T
Overall dimension 6600X3500X2000mm
Air requirements 0.8Mpa,>0.36m³/min



PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine 1



Application

This automatic die-cutting machine can be equipped with a waste removal function, which is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers,etc.

PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine 2





PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine 3





PVC Paperboard Die Cutting Machine Blanking Pneumatic Stripping Machine 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
