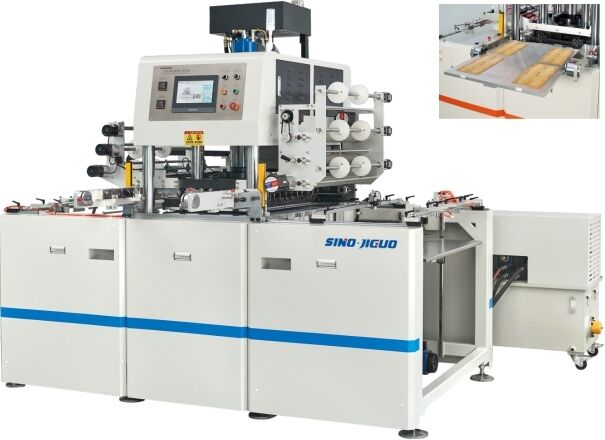

Automatic Hot Foil Stamping Machine | 20 Ton Pressure For Packaging Boxes

Automatic Hot Foil Stamping Machine | 20 Ton Pressure For Packaging Boxes

Brand Name:	SINO JIGUO
Model Number:	YH-1060SCZ
MOQ:	1 set
Price:	$46000to $50000/1 Set
Delivery Time:	30 days
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Max. Paper Size:

1060×720mm

Max.Stamping Area:

875*570mm

Min.Stamping Area:

15*15mm

Max.pressure:

20TON

Needle Gripper Edge:

10mm

Stamping Working Speed:

1200~1500 S/h

Max.delivery Pile:

900mm

Stamping Precision:

0.1 Mm

Usage:

Printing Paper

Total Weight:

4000KG

Packaging Details:

Standard export wooden box

Supply Ability:

25set

Highlight:

20 ton hot foil stamping machine

automatic foil stamping for packaging

hot foil stamping machine for boxes

Product Description

Automatic Hydraulic Hot Foil Stamping Machine

PLC control enables single-operator operation of 2-3 machines at once.
Adjust hot stamping pressure, temperature and time on the fly.
Optimized push rod & positioning gauges for quick alignment.
Pull-out print plate design for easy replacement and positioning.
Bottom suction & paper clamping system secures materials, boosts positioning accuracy and avoids foil offset.
Reinforced heavy-duty frame delivers stable performance under high pressure and continuous running.
Equipped with light curtain and other safety protections.

Automatic Hot Foil Stamping Machine | 20 Ton Pressure For Packaging Boxes 0

Product Specifications

Attribute	Value
Max. Paper Size	1060×720mm
Max. Stamping Area	875×570mm
Min. Stamping Area	15×15mm
Max. Pressure	20TON
Needle Gripper Edge	10mm
Stamping Working Speed	1200~1500s/h
Max. Delivery Pile	900mm
Stamping Precision	0.1 mm
Usage	Printing Paper
Total Weight	4000KG

Machine Components

Paper Feeding Unit

Vacuum dual-feed structure with air blowing & baffles. Independent airflow and speed adjustment prevent double feeding, skew and jams for stable, precise material feeding.
High-performance servo drive ensures accurate paper feeding and delivery.
Versatile feeder works with paper, leather, PVC, PET, cardboard and more.
Feeding table auto-adjusts to different material heights.

Foil Stamping Unit

Automatic Hot Foil Stamping Machine | 20 Ton Pressure For Packaging Boxes 1

Hydraulic heating & pressing system with thick aviation-grade aluminum heating plate for even heat and precise temperature control. Manganese steel base plate offers great wear resistance. Digital adjustment for pressure, temperature and dwell time. Delivers crisp, durable imprints for hot stamping, embossing, debossing and gravure printing.
Dual working modes for flexible production.
Front & side positioning gauges plus downward air suction and paper clamping. Stamping accuracy up to ±0.10mm, easy to calibrate.
180° rotatable pull-out upper plate enables quick template replacement, ideal for multiple stamping plates.

Paper Collecting Unit

Automatic Hot Foil Stamping Machine | 20 Ton Pressure For Packaging Boxes 3

Fully automatic delivery system arranges finished products tidily. Integrated with feeding unit to realize unmanned operation and save manpower.
Three separate stamping shafts enable simultaneous multi-process hot stamping for richer product styles and higher output.
Height-adjustable delivery table allows direct forklift handling, saving time and labor.
Precision foil tension system prevents wrinkles, breaks and jams. It minimizes foil consumption and production downtime.

Industry Applications

Printing: Books, magazines, and publications requiring decorative effects
Packaging: Luxury gift and cosmetic packaging enhancement
Specialty: Paper packaging, wine boxes, pharmaceutical packaging, and PET film stamping

FAQ

Q: What is the brand name of this product?

A: The brand name is SING JIGUO.

Q: What is the model number of this product?

A: The model is YH-960G Automatic hydraulic hot foil stamping machine

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: Does this product have any certifications?

A: Yes, it is certified with CE.

Q: What is the main function of this product?

A: This product is mainly used for automatic die-cutting and stripping.
