Automatic Hot Foil Stamping Machine TMY-1060H for Packaging

Name: Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: TMY-1060H
Price: 105,000.00 USD
Availability: InStock

Brand Name:	JIGUO
Model Number:	TMY-1060H
MOQ:	1 set
Price:	$210000 to $220000/1 Set
Delivery Time:	45 days
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Weight:

18000kg

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation

Dimension(l*w*h):

7600*4050*2500mm

Type:

Die-cutting Machine,Paper Cutting Machine

Computerized:

Yes

Power(w):

70KW

Packaging Details:

Wrap film or box

Supply Ability:

50 set

Highlight:

Automatic hot foil stamping machine for packaging

TMY-1060H foil stamping machine

Hot foil stamping machine with warranty

Product Description

Versatile Automatic Hot Foil Stamping Machine for High-performance and Custom-made Production

Product Specifications

Attribute	Value
Weight	18000kg
Warranty	1 Year
After-sales service	Engineers available to service machinery overseas, Video technical support, Field installation
Dimension (l×w×h)	7600×4050×2500mm
Type	Die-cutting Machine, Paper Cutting Machine
Computerized	Yes
Power	70KW

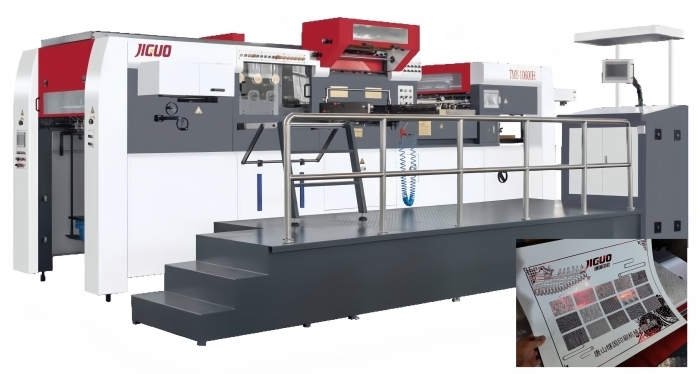

TMY-1060H Automatic Die Cutting & Hot Foil Stamping Machine

This fully automatic dual-unit holographic hot stamping, die-cutting, and stripping machine is designed for large-scale production with exceptional efficiency and precision.

Key Features

High-end efficiency: Performs hot stamping, die-cutting, and stripping in one operation, saving time and labor costs.
Flexible functionality: Optional features include hot stamping, die-cutting, stripping, holographic positioning, and embossing.
Intelligent systems: Non-stop paper feed and delivery system, automatic lubrication system, and hot stamping/stripping switchover system.
Advanced control: 15 optional servo motors ensure accurate positioning and high-speed stability with 12 independent heating zones (0-200°C).

Technical Parameters

Model	TMY-1060H
Max. sheet size	1060×760(mm)
Min. sheet size	400×360(mm)
Max. die cutting size	1040×740(mm)
Max. stamping range	1030×730(mm)
Max. die cutting speed	7500s/h
Sheet thickness	0.1-3mm (Card paper) ≤4mm (corrugated paper)
Die cutting precision	±0.1mm
Stamping temperature	20-200℃
Heating plate zone number	12
No. of foil rollers	3 longitudinal / 2 transversal
Max. feeding pile height	1600mm
Max. delivery pile height	1400mm
Max. pressure	350T
Total power	70kw
Total weight	18T
Overall dimension	7600×4050×2500mm
Air requirements	0.8Mpa, >0.36m³/min

Applications

This hot stamping die-cutting machine is suitable for:

Cigarette boxes
Wine boxes
Plastic boxes
Hang tags
Paper boxes
Corrugated boxes

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name is SING JIGUO.

Q: What is the model number of this product?

A: The model number is MYP-1060H Automatic Die-Cutting & Stripping Machine.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: Does this product have any certifications?

A: Yes, it is certified with CE.

Q: What is the main function of this product?

A: This product is mainly used for automatic die-cutting and stripping.
