Automatic Die Cutting Machine
Created with Pixso. JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h

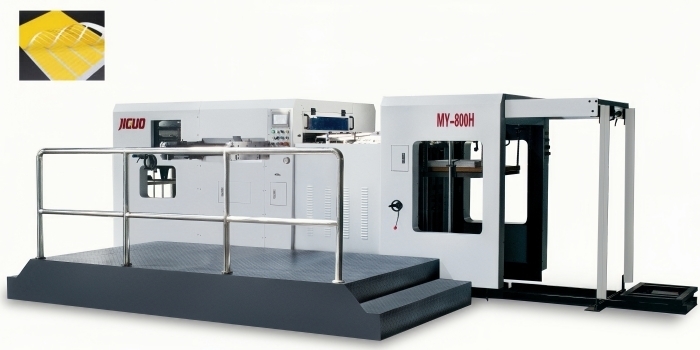

JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h
  • name
  • name
  • name
  • name
  • name

JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h

Brand Name: JIGUO
Model Number: MY-800H
MOQ: 1
Price: $61500-$69500
Delivery Time: 30
Payment Terms: L/C,T/T,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei
Certification:
CE
Packaging Details:
Film winding
Supply Ability:
25
Highlight:

JIGUO MY-800H automatic die cutting machine

,

810x610mm automatic die cutting machine

,

8500s/h high-speed die cutting machine

Product Description
JIGUO MY-800H Automatic Die-cutting & Creasing Machine
The JIGUO MY-800H is designed for high-precision die-cutting and creasing operations in paper packaging applications, featuring exceptional accuracy, speed, and automation capabilities.
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 0
Applications
  • Packaging and Printing: Ideal for clothing hang tags, self-adhesive labels, small gift boxes, and paper packaging products like medicine and wine boxes.
  • Other Paper Processing: Suitable for die-cutting cardboard, corrugated paper, and similar materials.
Key Features
  • High-Precision Die-Cutting: ±0.1mm accuracy with computer-optimized three-axis cam intermittent mechanism
  • High Efficiency: Up to 8,500 sheets per hour with non-stop auxiliary paper delivery
  • Automated Operation: PLC programmable controller for centralized control
  • Reliable Performance: Premium international components including Omron PLC and imported inverters
  • Material Adaptability: Handles various paper materials including board, cardboard, and corrugated paper
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 1
Technical Specifications
Model MY-800H
Max. Paper Size 810×610mm
Min. Paper Size 320×240mm
Max. Cutting Size 780×590mm
Max. Die Cutting Speed 8500 sheets/hour
Sheet Thickness Corrugated board: ≤4mm
Cardboard: 0.1-1.5mm
Die-cutting Accuracy ±0.1mm
Total Power 14.5 Kw
Net Weight 9.5 Tons
Overall Dimensions 5600×3400×2000 mm
Paper Feeding Unit
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 2
  • Automatically separates and conveys paper with stable feeding
  • Adapts to various materials and thicknesses without jams or skew
  • Combination of paper separation nozzle and blower prevents sheet clumping
Paper Conveying Unit
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 3
  • High-precision positioning with detection sensors
  • Wide material compatibility including cardboard and PVC
  • Fully automated PLC-controlled operation
  • Stable feeding with adjustable speed and hold-down mechanism
Die-cutting Unit
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 4
  • High pressure capability for thick materials and complex processes
  • ±0.1mm accuracy with premium components and servo control
  • Touchscreen-controlled automated operation
  • Durable construction with special steel materials
Delivery Unit
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 5
  • Non-stop delivery mechanism for continuous operation
  • Precision delivery with suction and flattening systems
  • Flexible adjustment for various paper sizes
  • German-imported conveyor belt for stable high-speed operation
Automatic Lubrication System
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 6
  • Timed, quantitative lubrication for optimal performance
  • Closed forced spray system with filtration
  • Reduces maintenance and extends equipment life
  • Improves overall machine performance and stability
Product Gallery
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 7 JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 8 JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 9
Our Partners
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 10 JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 11
Production Facility
JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 12 JIGUO MY-800H Automatic Die Cutting Machine 810x610mm 8500s/h 13
Frequently Asked Questions
Q: Can you customize the equipment according to my needs?
A: Yes, specifications, configurations, functions, and appearance are all customizable.
Q: What about quality control and delivery?
A: Each machine undergoes rigorous inspection and debugging before delivery. Typical delivery time is 20-30 days.
Q: Can we provide samples before placing an order?
A: Yes, we can provide samples for evaluation.
Q: What services can we provide?
A: We offer a 12-month warranty and long-term technical support with prompt solutions.
Q: Do we provide engineers for installation and training?
A: Yes, we can arrange for engineers to visit your facility if needed.
Q: How can I get to your company?
A: We're near Beijing Capital International Airport and Tangshan Station, with transportation available upon request.
Accepted Terms: FOB, CFR, CIF, EXW
Accepted Payment Currencies: USD, RMB, EUR
Accepted Payment Methods: T/T, L/C, Cash
