Product Details:
|
| Max.paper Size: | 810*610mm | Min.paper Size: | 320*240mm |
|---|---|---|---|
| Max.diecutting Size: | 780*590mm | Max.running Speed: | 8500s/h |
| Die Cutting Precision: | ±0.1mm | Max.pressure: | 250T |
| Total Power: | 14.5kw | Net Weight: | 9.5 Ton |
The main features of Jiguo die-cutting machines include high efficiency, precision and stability. The equipment adopts downward suction technology to ensure that the material is stable and motionless during the die-cutting process, greatly improving the accuracy of die-cutting. Its high degree of automation can significantly reduce manual intervention, thereby improving production efficiency.
1. Downward suction technology : Ensure that the material is stable and motionless during the die-cutting process, improving die-cutting accuracy. 2. High degree of automation : Reduce manual intervention and improve production efficiency.
3. Humanized operation interface and intelligent control system : Operators can easily set and adjust die-cutting parameters.
4. Multiple safety protection measures : Ensure safety during operation.
5. High-precision die-cutting tools and advanced control systems : Ensure the accuracy of die-cutting.
6. Automated workflow : Greatly reduce production time and labor costs
Products Description
| PARAMETER | |

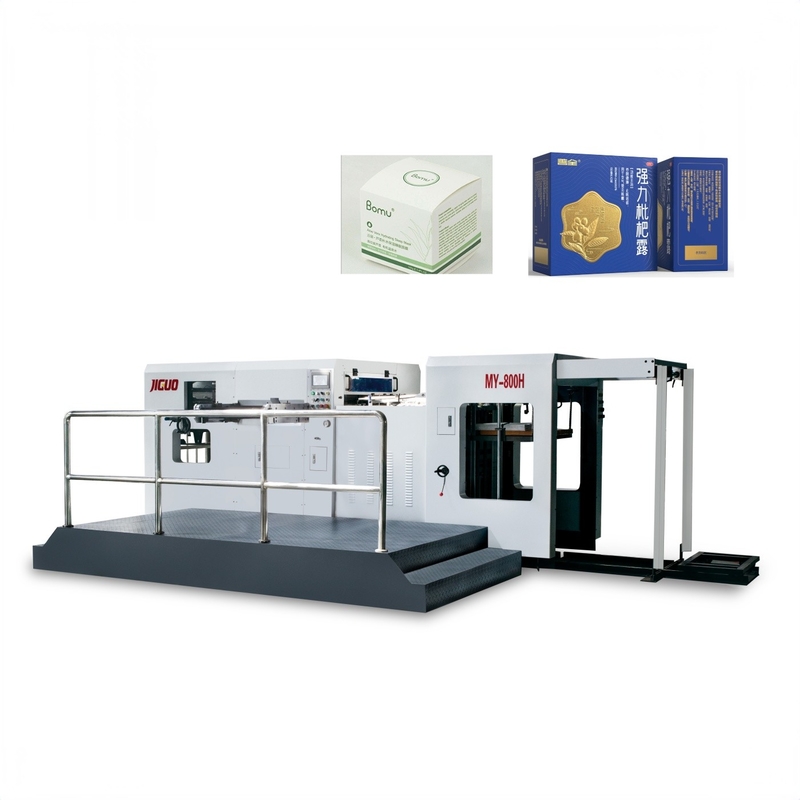

| Model | MY-800H |
| Max. sheet size | 810X610(mm) |
| Min. sheet size | 320X240(mm) |
| Max. die cutting size | 790X590(mm) |
| Max.cutting speed | 8500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1-1.5mm(Card paper) ≤4mm(corrugated paper) |
| Max.pressure | 250T |
| Total power | 14.5kw |
| Net weight | 9.5T |
| Overall dimension | 5600X3400X2000mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Partial Introduction
 |
■ Non-stop high-speed paper feeding unit ■ The enlarged paper feeding head (feeder head) has 9 paper suction nozzles, suitable for paper of different thicknesses; 5 paper feeding nozzles can be adjusted independently for parallel paper feeding; 4 paper lifting nozzles can move up and down with a large stroke; high-power air pump, strong suction, easy adjustment, reliable paper separation, fast and stable operation. |
■ The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine,
the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high
speed. However, common machines are tightened by screws.
■ The paper holding rack chain is imported from Germany, which provides a long service life and a stable
die-cutting precision.
|
■ The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan TOSHIBA frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting. |
Application
Applicable industries and application scenarios Jiguo die-cutting machines are widely used in multiple
industries, including: Packaging industry : Used to make packaging boxes of various shapes. Printing
industry : Used for precise cutting of printed materials. Electronics Industry: Used for cutting labels and
gaskets for electronic products
Comoany profile
Sino Jiguo Machinery Co., Ltd. (Tangshan JIGUO Printing Machinery Co., LTD.) , is a professional
manufacturer of Roll Paper Sheet Cutter Machine, Automatic Die Cutting And Creasing Machine,
Automatic Hot embossing & Foil Stamping & Die Cutting Machine, Automatic flute laminating machine,
Automatic window patching machine, Automatic Film Laminating Machine, Automatic Folder Gluer
Machine and other post press paper machines company.Classical models BMY-1100/1320/1500/
1680/1680/2100 etc. Semi automatic die cutting and creasing machine (with stripping unit). and MY(R/P)-800H/880/1050/1060/1080/1200/1320/1500/1680/2100E/Q/X/H etc. automatic
die cutting and creasing machine (With heating embossing & with stripping unit).TMY-800H/1050/
1060H/1320H/1500H/High (High Pressure) automatic die-cutting and foil stamping and hot embossing
machine popular in market more than 20 years.
Since first launched in market in 1996, with stable quality and reasonable price, our products have received
many praises for our quality and reputation. Our company has become an internationally famous enterprises
with products sold well all over the country and exported to over 20 countries, including the United States,
South Korea, Russia, India, Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on. JIGUO die-cutting
series products are the star products of our company. We have been incessantly pursuing our dream; with
excellent quality, preferential prices and excellent service, we have been cooperating with friends at home
and abroad closely to obtain mutual benefit and reciprocity, and create a better tomorrow.
Exhibition and shipping
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
