1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw
1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw

Large Image :  1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MY-800H die cutter
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: $10000-$56000
Packaging Details: standard
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1 set

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw

Description
Overall Dimension: 5600*3400*2000 Mm Net Weight: 9.5 Tons
Max.Cutting Size: 780×590mm Max.Die Cutting Speed: 8500s/h
Max. Feeding Pile: 1400mm Max. Delivery Pile: 1200mm
Min. Gripper Edge: 7mm Sheet Thickness: Corrugated Board: ≤4mm Cardboard:0.1-1.5mm
High Light:

Lightweight Used Paper Die Cutter

,

Paper Die Cutting Equipment 14.5 Kw

Product Description:

Paper Feeding Unit

The paper feeding unit is an essential component of our high-speed machines. It is equipped with advanced features to ensure a smooth and reliable paper feeding process.

Non-stop High-Speed Paper Feeding Section

Our paper feeding unit is designed for non-stop operation, allowing for continuous production without interruptions.

Enlarged Paper Feeding Head

The paper feeding head, also known as the feeder head, has been enlarged to accommodate a total of 9 suction nozzles. These nozzles are suitable for paper of various thicknesses. Additionally, there are 5 paper feeding nozzles that can be independently adjusted for parallel paper feeding. The unit also has 4 paper lifting nozzles that can move in a large stroke.

The large power wind pump provides a high suction force, making it easy to adjust and reliable for dividing paper. With its fast and stable performance, the paper feeding unit is perfect for high-speed production.

Lightweight and Durable Design



Our paper feeding unit comes equipped with a horizontal paper parting and blowing device, ensuring smooth and efficient operation.

Continuous Operation

The main and secondary stacking paper tables have been designed to operate continuously, allowing for seamless production.

The pre-stack device is designed with rails for easy and accurate loading by the operator.

Pneumatic Lifting Device

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 0

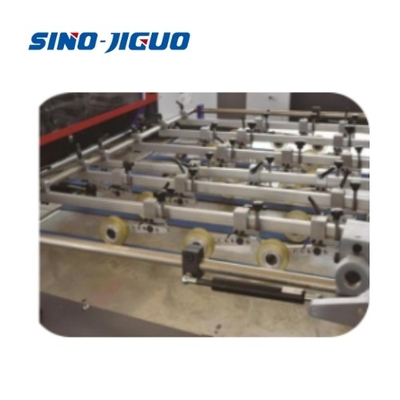

Paper Conveying Unit

Our paper conveying unit is made of high-quality stainless steel, preventing rust and providing stable and accurate paper conveying.

Versatile Paper Positioning

The paper is positioned by a pushing unit and a pulling unit, which can be conveniently shifted for different paper specifications.

For precise positioning, this unit is equipped with side gauge and front gauge paper photoelectric detection capabilities.

Die-cutting Unit

The die-cutting unit is a key component of our machine, delivering high-speed and precise die-cutting results.

Upgraded Design

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 1

Our die-cutting machine features a forced lubrication system with oil pumps from Taiwan to reduce wear and tear. Additionally, an oil cooler has been added to cool the lubricating oil, improving the efficiency of the main chain.

High-Speed Die-Cutting

Our machine is equipped with a pneumatic plate locking unit, ensuring a firm and fast fix for the upper frame. All four sides of the frame can be locked simultaneously, resulting in high accuracy and speed. In comparison, common machines are usually tightened with screws.

High-Quality Components

Our machine uses high-quality German paper holding rack chains that provide long service life and stable die-cutting precision.

The intermittent mechanism of our machine is imported from Taiwan, improving die-cutting speed, precision, and reducing noise. Domestic mechanisms cannot match its speed and accuracy.

Safety Features





1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 2

Features:

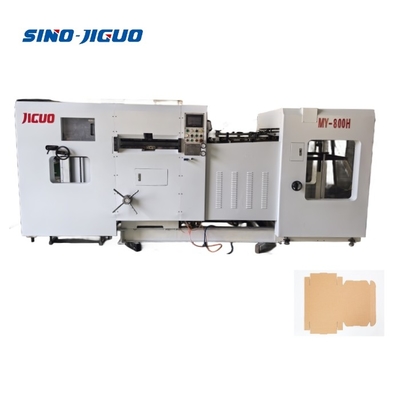

MY-800H Automatic Die Cutting & Creasing Machine

The MY-800H automatic die cutting & creasing machine is a key piece of equipment used in printing finishing processes such as die cutting, creasing, and embossing. It is equipped with electrical components and driving elements from internationally recognized brands to ensure precision and reliability in die cutting. The machine also features a user-friendly man-machine interface for monitoring its running status.

This machine utilizes unique drive gears, including a high-precision indexing mechanism, pneumatic closed up system, pneumatic clutch, overload protection, and automatic compression relief, to ensure stable and high-speed operation. It is also equipped with practical and reliable mechanisms such as a pre-stack device, secondary delivery mechanisms, and manual sampling, all of which contribute to the excellent performance of the machine.

Stable, Durable, and Safe Design

Our main focus in developing this model was to create a stable, durable, and safe machine that is easy to operate. This machine has been designed according to European CE safety standards and features innovative improvements to its frame and overall structure. We have also taken great care to enhance its safety protection, resulting in a more stable machine and a safer and more convenient operation.

The MY-800H is primarily used for die-cutting, creasing, and cold embossing various carton box and label designs in the packaging industry. It has proven to be especially effective for advanced prints such as cigarette cases, wine boxes, gift boxes, and appliance or cosmetic boxes. With this machine, it is possible to achieve three-dimensional and exquisitely beautiful prints through die-cutting, creasing, and cold embossing techniques.

1400mm Max. Feeding Pile Paper Die Cutting Equipment With Total Power Of 14.5 Kw 3

Technical Parameters:

Technical Parameters for Used Die Cutter
Parameter Value
Max. Paper Size 810×610mm
Max. Pressure 250 Tons
Min. Gripper Edge 7mm
Max. Delivery Pile 1200mm
Min. Paper Size 320×240mm
Sheet Thickness Corrugated Board: ≤4mm
Cardboard: 0.1-1.5mm
Die-Cutting Accurate ±0.1mm
Overall Dimension 5600*3400*2000mm
Max. Cutting Size 780×590mm
Max. Feeding Pile 1400mm

Key Features:

  • Cutting Die Equipment
  • Die-Cutting System
  • Die-Cutting Automation


Applications:

Used Die Cutter - JIGUO MY-800H

JIGUO MY-800H is a cutting die equipment designed and manufactured by the well-known brand JIGUO. With advanced die-cutting technology and precise specifications, this machine is the perfect solution for all your cutting needs. It is widely used in the cutting die equipment industry and is highly recommended by professionals for its high precision, efficiency, and durability.

Product Features
  • High Precision: JIGUO MY-800H die cutter is equipped with advanced technology that ensures accurate and precise cutting every time.
  • Efficient: With a maximum pressure of 250 tons, this machine can easily handle large and thick materials, making it highly efficient for cutting various materials.
  • Durable: Made with high-quality materials and advanced engineering, JIGUO MY-800H is a long-lasting and reliable cutting die equipment.
  • Versatile: This machine is suitable for a wide range of materials, including paper, cardboard, corrugated board, and more, making it a versatile choice for different cutting needs.
  • Cost-Effective: JIGUO MY-800H offers high precision and efficiency at a competitive price, making it a cost-effective choice for businesses.
  • Automated: With automated features, this machine can increase productivity and reduce labor costs, making it a smart investment for any business.


FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is JIGUO.
  • Q: What is the model number of this product?
    A: The model number of this product is MY-800H die cutter.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: Does this product have any certifications?
    A: Yes, this product is CE certified.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 set.
  • Q: What is the price range for this product?
    A: The price for this product ranges from $60000 to $200000.
  • Q: How is this product packaged?
    A: This product is packaged in a standard manner.
  • Q: What is the delivery time for this product?
    A: The delivery time for this product is 30 days.
  • Q: What are the payment terms for this product?
    A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 1 set.
