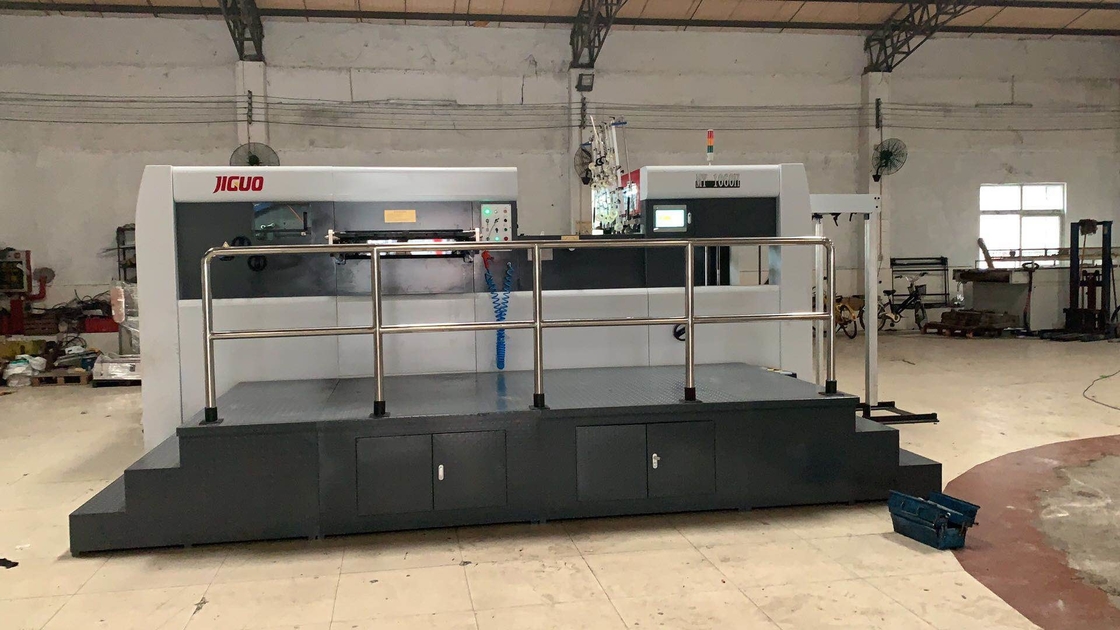

Precision Driven Automatic Die Cutting Machine Max Paper Size 1060*760mm

Product Description:

The Automatic Die Cutting Machine is a highly efficient and reliable cutting solution for various industries. With a maximum weight of 17 tons, it can provide a maximum diecutting size of 1040*740mm and a maximum paper size of 1060*760mm. The minimum paper size it can handle is 400*360mm. It is equipped with an automatic feeding system, making it an ideal choice for various applications with high accuracy and speed.

This Automatic Die Cutting Machine is designed to provide superior performance and reliable operation for a wide range of industrial and commercial applications. It is equipped with an advanced automatic feeding system, ensuring a smooth and fast operation. The heavy-duty construction ensures a reliable and durable operation, with a maximum weight capacity of 17 tons. The cutting size can reach 1040*740mm, and the maximum paper size is 1060*760mm, while the minimum paper size is 400*360mm.

This Automatic Die Cutting Machine is a highly efficient and reliable cutting solution that is perfect for a variety of industries. Its automatic feeding system and heavy-duty construction ensure reliable and durable operation, while the adjustable cutting size and paper size make it suitable for a wide range of applications. With its high accuracy and speed, this Automatic Die Cutting Machine is the perfect choice for any cutting job.

Features:

• Product Name: Automatic Die Cutting Machine
• Weight: 17T
• Cutting Thickness: Cardboard: 0.1-3mm, Corrugated Paper <= 4mm
• Feeding System: Automatic
• Max paper size: 1060*760mm
• Min paper size: 400*360mm

Technical Parameters:

Escriptions of the entire product

1,Paper Feeding Unit

• The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
• By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.
• To improve the working efficiency, paper feeding and collecting are realized by Taiwan WANSHSIN dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

2.Die-cutting Unit

• The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
• The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
• The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

3.Paper Collecting Unit

• Paper can be collected automatically and orderly.
• The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
• By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

5.The Torque Limiter

Adopt the imported torque limiters to ensure the safety of the machine, reduce the damage to the machine and improve the service life of the machine. It can highly protect the Gripper bar, help the operator and improve the machine life.

6.Electrical Control Unit

• The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan TOSHIBA frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
• The human-machine interface can display various working conditions, indicate fault positions and give solutions.
• The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.

Applications:

The Automatic Die Cutting Machine from SING JIGUO (Model Number MY-1060H) is an ideal solution for a variety of industries. Not only does it offer precise cutting of cardboard (thickness ranging from 0.1-3mm) and corrugated paper (thickness up to 4mm) but it also has a minimum paper size of 400*360mm, a weight of 17T, and a maximum diecutting size of 1040*740mm. And for added safety, the machine has an emergency stop system.

The Automatic Die Cutting Machine from SING JIGUO is designed to provide unmatched quality and accuracy while making the whole production process much faster and more efficient. It is an ideal solution for a variety of industries, from packaging to printing. With its advanced technology, it offers a reliable and accurate die cutting solution that can handle a wide range of materials and sizes.

The Automatic Die Cutting Machine from SING JIGUO is designed to provide maximum safety with its emergency stop system and is built to last with its high-quality construction. It is a reliable and efficient machine that can help you achieve the best possible results with minimal effort. With its ease of use and advanced technology, it is the perfect choice for any industry that needs an efficient and accurate die cutting solution.

Customization:

Support and Services:

We provide technical support and service for our Automatic Die Cutting Machines, so that you can use them with confidence and get the best performance from them.

We offer a full range of support services to ensure that our Automatic Die Cutting Machines operate at peak performance and reliability:

• Installation and setup assistance
• Regular maintenance and inspections
• Troubleshooting and repair services
• Software and firmware updates
• User training and education
• Online technical support via phone and email

We understand the importance of having reliable Automatic Die Cutting Machines and are here to help you get the most out of your investment. Contact us today to learn more about our technical support and service offerings.

Packing and Shipping:

Automatic die cutting machines are packaged and shipped in special boxes designed to protect the machine during transport. The box should include a layer of bubble wrap and other protective materials to ensure that the machine arrives safely.

The machine should be thoroughly inspected before shipping, and all necessary parts should be included in the package. All instructions should be included in the package for the customer to easily set up and use the machine.

The shipping company should be chosen carefully to ensure that the package arrives in good condition and on time. The customer should be informed of the expected arrival time and any potential delays prior to shipping.

FAQ:

Q1: What is the brand name of this Automatic Die Cutting Machine?

A1: The brand name of this Automatic Die Cutting Machine is SING JIGUO.

Q2: What is the model number of this Automatic Die Cutting Machine?

A2: The model number of this Automatic Die Cutting Machine is MY-1060H.

Q3: Where is this Automatic Die Cutting Machine manufactured?

A3: This Automatic Die Cutting Machine is manufactured in China.

Q4: What are the features of this Automatic Die Cutting Machine?

A4: This Automatic Die Cutting Machine features an adjustable speed, a high precision control panel, and a low noise level.

Q5: What is the warranty of this Automatic Die Cutting Machine?

A5: Please refer to the product manual for the warranty information of this Automatic Die Cutting Machine.
