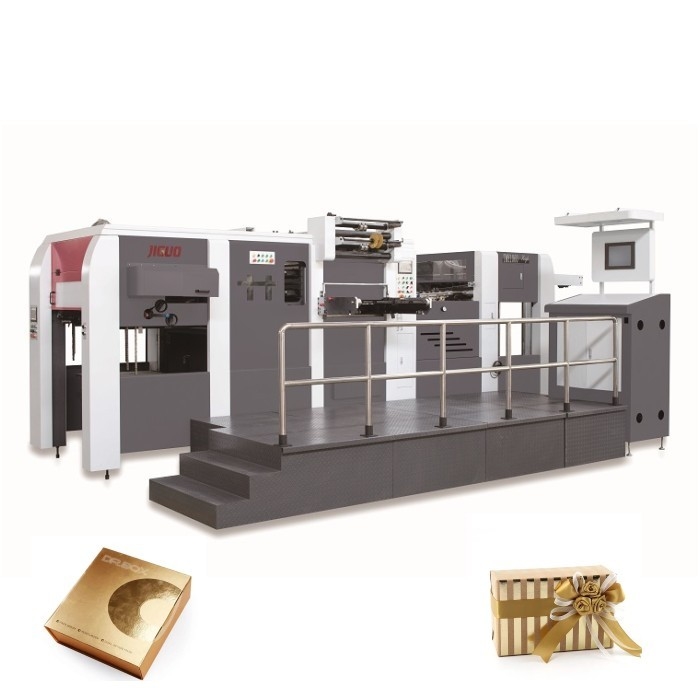

TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper

Description
Max Paper Size: 1060*760mm Min Paper Size: 400*360mm
Max Die Cutting Size: 1040*740mm Die Cutting Speed: 0.1mm
Sheet Thickness: Paper Cardboard 0.1-1.5mm Corrugated Board Max 4mm Max Pressure: 350T
Total Power: 34 Kw Net Weight: 18T
Overall Dimension: 7600*4050*2500mm Min Gripper Edge: 7mm
Max Feeding Pile Height: 1600mm Max Delivery Pile Height: 1400mm
High Light:

34kw Foil Stamping Die Cutting Machine

,

Holographic Foil Stamping Die Cutting Machine

,

Holographic Automatic Foil Stamping Machine

JIGUO TMY-1060H Max 1060*760mm automatic Foil Stamping and die cutting machine with holographic for high end package



Automatic foil stamping and  die-cutting  machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced.



Products Description​

Model TMY-1060H
Max.Paper Size 1060×760mm
Min. Paper Size 400×360mm
Max.Die cutting Size 1040×740mm
Max. Stamping Range 1030×730mm
Max.Diecutting Speed 7500s/h
Max.Stamping Speed 6000s/h
Max.Feeding Pile 1600mm
Max.Delivery Pile 1400mm
Sheet Thickness

Cardboard:0.1-3mm(80-2000gsm)

Corrugated board:≤4mm

Die-Cutting Precision ±0.1mm
Stamping Tempreture 0~200℃
Heating Plate Zone Number 12
NO.of Foil Rollers 3 Vertical and 2 Horizontal
Max. Length 1200~1500m
Max.Pressure 350t
Total Weight 18t
Heating Plate Zone Power 34kw
Total Power 70kw
Overall Dimension 7600×4050×2500mm
Max. foil width 1030mm
Min. foil width 25mm
Max. length of pull foil 760mm
Max. pull foil roll diameter φ200mm
Max. foil width 740mm
Min. foil width 25mm
Max. length of pull foil 1060mm
Max. pull foil roll diameter φ230mm







IV,Descriptions of the entire product

Paper Feeding UnitTMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 0

The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

Paper Conveying UnitTMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 1

  • The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
  • The incline-type paper moving table top is more suitable to high-speed thin paper and location.
  • Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

Main Chain

TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 2

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

Die Cutting Unit

TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 3





  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
  • The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
  • The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

Foil Stamping Unit



TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 4





,The foil can step in both cross and longitudinal two directions (2 transverse rollers and 3 longitudinal rollers), which can greatly meet different client's needs in various stamping.

2,The foil can step, which greatly meet client's needs in various stamping. 12 heating zones can be set individually and in constant temperature.

3,Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.

4,The adoption man-machine interface monitors to show the system, making the machine circulate the appearance to be clear at a glance; breaking down the manifestation, breaking down the exclusion with proficiency, real realizes person machine dialogue, person machine exchanges.

5,PLC and many electronic components are famous imported brand, which insure the machine to be safe and reliable.

6,Adopting imported servo-motor and computer for foil control system, the foil conveyed synchronal, tension is constant and the transmission leapfrogging is more accurate.

Paper Collecting Unit

TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 5

  • Paper can be collected automatically and orderly.
  • The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
  • By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

Electrical Control Unit

TMY-1060H Holographic Automatic Foil Stamping And Die Cutting Machine 1060*760mm Paper 6

  • The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
  • The human-machine interface can display various working conditions, indicate fault positions and give solutions.
  • The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.
