Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

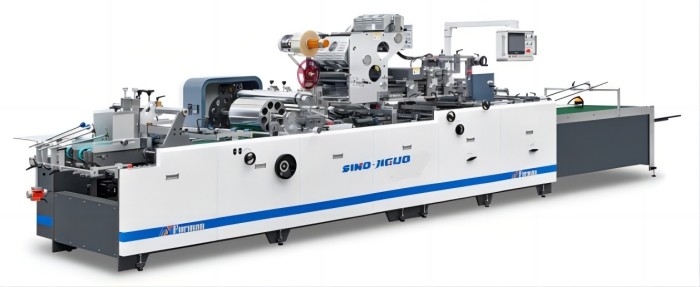

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size
Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size

Large Image :  Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size

Product Details:
Place of Origin: China
Brand Name: SINO-JIGUO
Certification: CE
Model Number: TC-920L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $46000 to $60000/1 Set
Packaging Details: film winding
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50sets per month

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size

Description
Product Type: WIndow Patching Machine Processing Type: Printing Machine
Max.Paper Size: 900*650mm Min. Paper Size: 100*150mm
Max. Film Size: 350*300mm Min. Film Size: 50*50mm
Corrugated Paper: 1-6mm Cardboards: 200-2000g/ M²
High Light:

Automatic Window Patching Machine 8000s/H

,

Automatic Flat Window Patching Machine

,

50*50mm Window Patcher

Automatic Window Patching Machine With Corner

Cutting & Creasing Function ( V Cutting )

Product Description:

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size 0

The Window Patching Machine is specifically designed for flat window, corner cutting line and automatic box window patching. It can be used to punch window film sheet with thickness ranging from 0.1mm to 0.3mm. The maximum paper size it can handle is 730*650mm, while the minimum paper size is 100*150mm. With a maximum working speed of 8000 sheets per hour, it offers an efficient and fast window patching solution.



Features:

■ Servo motion intelligent control



■ Air expansion shaft tension film unwinding



■ Multi-function can be used for normal pasting,V-cut & creasing line products



■ Automatic deviation correction system



■ Double sheet/empty sheet automatic glue lifting



■ High-precision point-to-point positioning



■ Paper jam automatic stop



■ Horizontal film corner cut & creasing Line



■ Printed film side tracking(Optional)



■ Some special shaped window customization(Optional)



Technical Parameters:



Model TC-920L
Max. Paper Size 900*650mm
Min. Paper Size 100*150mm
Max. Film Size 350*300mm
Min. Film Size 50*50mm
Film Sheet Thickness 0.1-0.3mm
Max. Working Speed 8000s/h
Cardboard 200-2000g/ m²
Corrugated Paper 1-6mm
Total Power 9.5 KW
Total Weight 3200KG
Overall Dimensions 6800*1570*1600mm



Branch Introduction:

Film Unwinding:

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size 1The film is mounted on an air-expanding shaft or a mechanical shaft, and it is convenient and quickly to change the film (film). The electromagnetic tension system keeps the film unloading tension constant in an ideal state, and is equipped with a coil limit device, which greatly reduces the time for changing the material and reduces the waste of film.



Electrical System:

Automatic Window Patching Machine 8000s/H 50*50mm Min. Film Size 2The whole machine adopts PLC program control.All kinds of electronic components and detector switches are made in Germany,Taiwan and Japan etc.



Applications:

The SINO-JIGUO TC-920L Automatic Window Patching Machine is an ideal solution for printing, flat window patching, corner cutting, and creasing lines in a single operation. It is suitable for processing films with thickness of 0.1-0.3mm, corrugated paper with 1-6mm and cardboards with 200-2000g/ M². It has a minimum film size of 50*50mm and offers automatic window patching, corner cutting and creasing function. With the help of this Automatic Window Patching Machine With Corner Cutting & Creasing Function, users can quickly and easily produce flat window, corner cutting line, creasing line. In addition, it provides excellent accuracy and high efficiency, making it the perfect choice for busy factories and production lines. It is a cost-effective and reliable solution for any window patching needs.



Customization:

Customized Service for SINO-JIGUO's Automatic Window Patching Machine With Corner Cutting & Creasing Function (Model Number: TC-920L)

SINO-JIGUO's Automatic Window Patching Machine With Corner Cutting & Creasing Function (Model Number: TC-920L) is the perfect choice for companies who are looking for a reliable and high-performance automatic window patching machine. With its unique features and reliable performance, it can effectively help you speed up the production process of window patching.

This automatic window patching machine comes with a Max. Paper Size of 920*650mm, a Max. Film Size of 350*300mm and a Min. Paper Size of 100*150mm. It boasts of an advanced design that ensures high efficiency and accurate results. It also comes with a 1-year warranty, allowing you to have peace of mind when using it.

With its Automatic Box Window Patching Machine, you can save time and money on box window patching. It effectively speeds up the production process, allowing you to get more done faster and easier.

For more information about SINO-JIGUO's Automatic Window Patching Machine With Corner Cutting & Creasing Function (Model Number: TC-920L), please contact us today. We look forward to hearing from you!



Support and Services:

Window Patching Machine Technical Support and Service

We provide technical support and service for Window Patching Machines. Our experienced technicians provide a wide range of services, including installation, maintenance, troubleshooting, and repair. We also offer training and advice for operators on the use and maintenance of Window Patching Machines.

For technical support, our experts are available 24/7 via phone, email, or live chat. We will provide prompt and accurate responses to your questions. Our technicians can also provide remote technical assistance to diagnose any potential problems with your Window Patching Machine.

For maintenance and repair services, we offer both on-site and off-site services. Our technicians are highly trained and experienced in the maintenance and repair of Window Patching Machines. We use only the highest quality parts and materials to ensure the safety and reliability of your machine.

If you have any questions or concerns about our Window Patching Machine Technical Support and Service, please do not hesitate to contact us. We are here to help.



Packing and Shipping:

Packaging and Shipping of Window Patching Machine

Window Patching Machine is a type of industrial machinery used to seal paper boxes with window patches. The machine needs to be properly packaged and shipped in order to ensure its safe arrival at its destination.

Packaging

The Window Patching Machine should be packaged in a sturdy box with adequate padding. The box should be large enough to fit the machine and all its components. All components should be wrapped in bubble wrap and placed in the box.

Shipping

The Window Patching Machine should be shipped using an express shipping service. The box should be clearly labeled with the destination address and contact information. The package should be insured in case of any damages during shipment.



FAQ:

  • Q: What is the brand name of the Window Patching Machine?
    A: The Window Patching Machine is made by SINO-JIGUO.
  • Q: What is the model number of the Window Patching Machine?
    A: The model number of the Window Patching Machine is TC-920L.
  • Q: Where is the Window Patching Machine made?
    A: The Window Patching Machine is made in China.
  • Q: What are the features of the Window Patching Machine?
    A: The Window Patching Machine has advanced technology, high efficiency, low noise, and is easy to operate.
  • Q: How do I maintain the Window Patching Machine?
    A: Regularly check the parts of the machine and the lubrication points of the machine. Replace worn parts in time and lubricate the machine in time.
