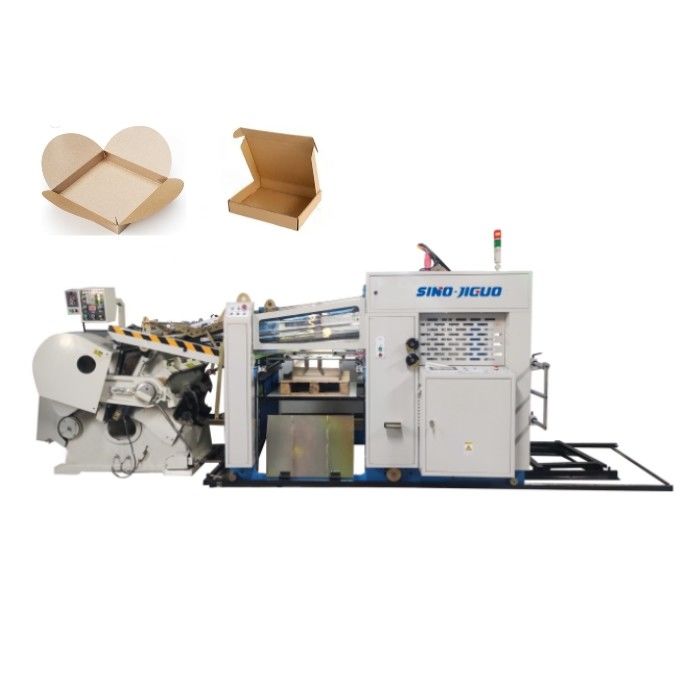

Manipulator Automatic Die Cutting Creasing Machine For Carton Large Size 1360*960mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Manipulator Automatic Die Cutting Creasing Machine For Carton Large Size 1360*960mm

Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm
Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm

Large Image :  Manipulator Automatic Die Cutting Creasing Machine For Carton Large Size 1360*960mm

Product Details:
Place of Origin: CHINA
Brand Name: SINO-JIGUO
Certification: CE, ISO9001
Model Number: ML-1400S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Manipulator Automatic Die Cutting Creasing Machine For Carton Large Size 1360*960mm

Description
Brand Name: SINO-JIGUO Product Name: Manipulator Automatic Die Cutting Machine
Max.Sheet Size: 1360*960mm Working Speed: 0-1800s/h
Feeding Pile Height: 1100mm Delivery Pile Heitht: 800mm
Total Power: 4KW Machine Dimension: 4600*2100*1800mm
High Light:

1800s/h Die Cutting Creasing Machine

,

Precision Die Cutting And Creasing Machine

,

Manipulator Automatic Die Cutting Creasing Machine

Product introductiont:



Among them, Manipulator Automatic Die Cutting Machine, the processing range includes models from 750 to 1300. This is our company professional designed Special for fellow the Manual die cutter and the Manual hot foil stamping machine. It can combine with the old machine very easily and simple, easy for operate. The equipment adopts advanced full servo control, which replaces manual paper feeding. It has the characteristics of simple operation, labor saving, high safety, high precision, safety and stability. Suitable for paper, coated paper, gray board paper, cardboard, corrugated paper, PVC materials.



Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 0



Technical Parameters:



Model ML-1400S
Max.Sheet size 1360*960mm
Min.Sheet size 500*400mm
Suitable sheet thickness Cardboard: 200-600gsm; Corrugated board≤8mm
Feeding pile height 1100mm
Delivery pile height 800mm
Total power 4kw
Working speed 0-1800s/h
Total weight 2000kg
Power 3p,380v
Machine dimension 4600*2100*1800mm

Detailed Configuration



1.Double Sheet Controller



The small details of double-sheet control, the contact wheel adopts soft and hard rubber wheels to reduce the friction between the paper and the lower roller. However, similar products use iron wheels directly to save costs, and iron grinds iron, which is easy to cause damage.

Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 1

2. Electric Adjustment Feeder System



In order to facilitate the replacement of different paper sizes, you can precisely control the position of the feeder's head and feet. After manually measuring the length of the paper, move the red pointer to the actual measured length of the paper through the electric button, or manually fine-tune it through the handle. The advantages of this system are: easy adjustment, saving time and effort.

Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 2

3. Professional Die-cutting Machine Pressure Wheel Structure



Since similar products adopt the round belt guide wheel structure, there are often broken belts, dropped belts, and deviation phenomena. Therefore, at the beginning of the design of this machine, the special pressure rollers for standard die-cutting machines are used to convey paper. The advantages are: extremely high stability and Durable.

Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 3

4. Professional Vacuum Pump



This machine adopts the 80 dry vacuum pump specially used for post-press packaging, which provides stable suction for the manipulator and all suction cups, and blows with the large flow required by the feeder part. Advantages: low noise and low energy consumption. However, similar products use vacuum generators, and the suction cup must use a high-power screw compressor to provide a stable air source to work. Due to the large air consumption and instability, it is not recommended to use a vacuum generator.



                Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 4

5. Install Frequency Conversion



The feature of this machine is to install a frequency converter on the side of the control panel of your die-cutting machine or bronzing machine, and control the speed of the die-cutting machine through frequency conversion speed regulation. It come up to combine the Feeder system and your machine together, then it can help operate the machine by the button, the feeder and the machine working speed can be increase or decrease the speed together. The advantage is: the installation position of the frequency conversion control is together with the control button of the die-cutting machine, making it very convenient to operate.

Manipulator Automatic  Die Cutting Creasing Machine For Carton Large Size 1360*960mm 5



Applications:

The SINO-JIGUO ML-1400S Manipulator Automatic Die Cutting Machine is a high-precision cutting and creasing machine that is certified with CE and ISO9001. It is capable of cutting and creasing a wide range of materials including cardboard, corrugated board, fibboard, plastic, and PVC with thicknesses ranging from 0.2 to 5 mm with speeds of up to 1800s/h. This machine is available in wooden cases and a minimum order of one set. Payment terms are available via L/C and T/T, and 50 sets can be supplied per month. The minimum sheet size of this machine is 500*400mm.

This Automatic Die Cutting Machine is suitable for a variety of applications, such as paper cutting, card making, pattern cutting, box making, and more. It is perfect for both small and large businesses that need high-precision and high-speed cutting and creasing solutions. It can be used in a variety of industries, such as packaging, printing, advertising, and more. With its high accuracy and fast speed, this machine is the ideal choice for businesses looking for a reliable and efficient cutting and creasing solution.



Support and Services:

We provide technical support and services for our Die Cutting Creasing Machine. Our technical support and services include:

  • Repair and maintenance services
  • Installation services
  • Operator training
  • Software and hardware upgrades
  • Remote troubleshooting
  • On-site technical support
  • Online support
  • Parts replacement


FAQ:

Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
