Home ProductsAutomatic Hot Foil Stamping Machine

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

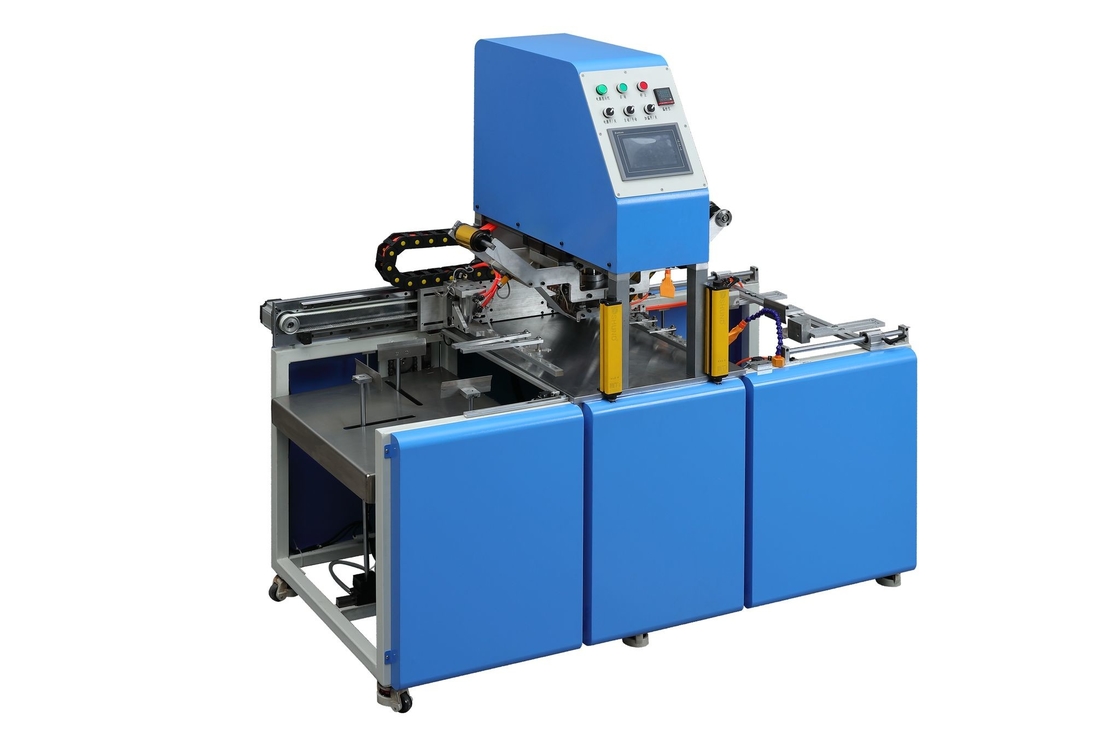

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package
Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package

Large Image :  Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package

Product Details:
Place of Origin: China
Brand Name: SINO JIGUO
Certification: CE
Model Number: YH-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD29000-35000 PER SET
Packaging Details: Export package please check photos in below.
Delivery Time: 15-25 depend on stock
Payment Terms: L/C, D/P, D/P, T/T
Supply Ability: 400 SETS PER YEAR

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package

Description
Max Paper Size: 500*550mm Min Sheet Size: 100*100mm
Max Stamping Size: 150*150mm Min Stamping Size: 10*10mm
Sheet Thickness: 120-2000gsm Power: 2.5kw
Air: 0.6-0.8 Mpa,>0.36 M³/min Delivery Height: 340 Mm
Stamping Precision: 0.20 Mm
Highlight:

Wood Hydraulic Automatic Hot Stamping Machine

,

Leather Package Hydraulic Hot Stamping Machine

,

Wood Automatic Hot Foil Stamping Machine



SPECIFICATIONS

Model

YH-500

Max. sheet size

500X550 (mm)

Min. sheet size

100X100 (mm)

Max. stamping size

550X450 (mm)

Min. stamping size

10X10 (mm)

Suitable sheet thickness

100-2000gsm

Stamping working speed

1200~1500 s/h

Power

2.5 kw

Air requirements

0.6-0.8 Mpa,>0.36 m³/min

Voltage

220V

Delivery height

340 mm

Max. Stamping pressure

1.5 tons

Stamping accuracy

0.105mm

Net weight

 620kg

Overall Dimension

1700x825x1664 mm

SINO JIGUO MACHINERY CO., LTD. (Tangshan JIGUO Printing Machinery Co., LTD.)

is a professional manufacturer of Roll Paper Sheet Cutter Machine, Automatic Die Cutting Machine, Automatic Foil Stamping And Hot Embossing Machine, Automatic flute laminator machine, Automatic window patching machine, Automatic Film Laminating Machine, Automatic Folder Fluer Machine and other series Paper packaging machines company.
Among them YH-500/700/700S/800S is a machine that automatic intelligent servo control Automatic (Hydraulic )hot foil stamping machines. The product features the advantages of saving labor for users, simple and convenient operation, improving factory production efficiency and high bronzing precision.Machine small , and easy operation, suitable most of the products, can stamping on the paper, cardboard, plastic, corrugated board, solid board, leather, wooden board, etc.
Since first launched in market in 1996, with stable quality and reasonable price, our products have received many praises for our quality and reputation. Our company has become an internationally famous enterprises with products sold well all over the country and exported to over 20 countries, including the United States, South Korea, Russia, India, Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on. JIGUO die-cutting series products are the star products of our company. We have been incessantly pursuing our dream; with excellent quality, preferential prices and excellent service, we have been cooperating with friends at home and abroad closely to obtain mutual benefit and reciprocity, and create a better tomorrow.
Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 0

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 1

                                                              Machine introduction



Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 2

Adopt high performance Stepping motor control the feeding and delivery paper, Centralized control, Stepping more accuracy.

Professional designed feeder can working the leather, solid board, wooden board, plastic board, etc.

Servo motor control feeding, more stable and high precision.


Foil Stamping UnitHydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 3

Including three working mode, according to customer needed, choose the mode suitable your products.

Adopt the servo motor control the push and pull lay gauge, highly improved the stamping accurate. Stamping precision within ±0.10mm.

Using high-performance motion controller, centralized control, more accurate jumping

Delivery UnitHydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 4 1.Adopt high performance Stepping motor control the feeding and delivery paper, Centralized control, Stepping more accuracy.
2. Adopt two stamping foil rolls, it can working two colors or two position stamping at same time, highly increase the working efficiency.

Operation panel

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 5

Adopt the WEINVIEW Touch Screen Easy operate and working more stable and convenient.

Electrical Unit

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 6

1) The electrical control system is Japan MITSUBISHI PLC computer automatic control for fully detecting and controlling, stable and accuracy.

2) All the Contactor, Relay, air switch use SCHNEIDER, and all the Photoelectric switch use the OMRON, ensure the machine electric working stable.
3) The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.




Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 7





Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 8

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 9

Hydraulic Automatic Hot Stamping Machine YH-500 For Leather Wood Plastic Package 10

More Machine Running Video and Customer Cases Please contact

Claire:+8619963969307
