Home ProductsAutomatic Hot Foil Stamping Machine

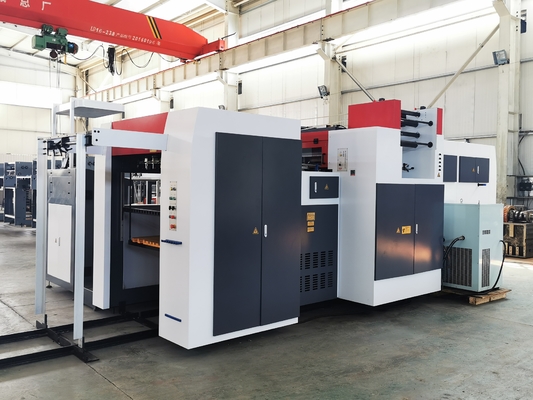

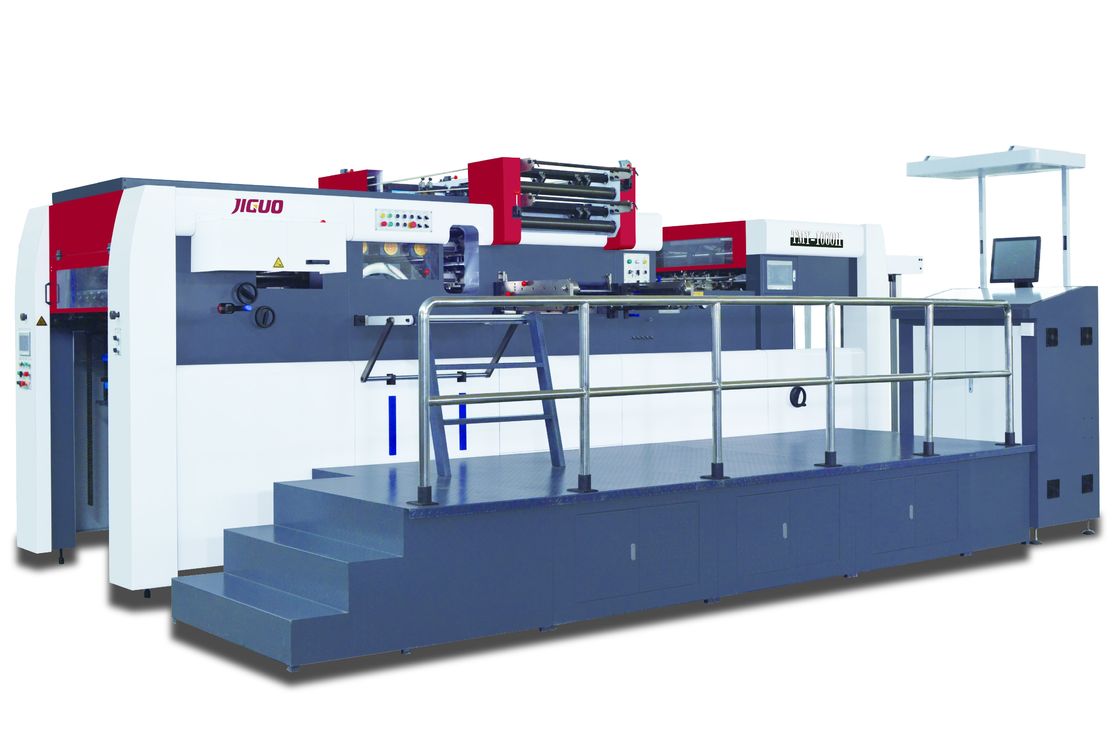

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm
34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm

Large Image :  34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm

Product Details:
Place of Origin: CHINA
Brand Name: SING JIGUO
Certification: CE
Model Number: TMY-1060H Automatic Foil Stampig & Die Cutting machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $120000 to $170000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50Set

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm

Description
Max.Paper Size: 1060×760mm Min. Paper Size: 380×340mm
Max. Stamping Range: 1030×740mm Max.Diecutting Speed: 7500s/h
Max.Stamping Speed: 6000s/h Sheet Thickness: Cardboard:0.1-3mm (80-2000gsm) Corrugated Board:≤4mm
Stamping Tempreture: 20~200℃ NO.of Foil Rollers: Horizontal: 3, Vertical:2
Max. Length: 1200~1500m Max.Pressure: 320 Tons
Total Weight: 18 T
High Light:

Heating Plate Foil Die Cutting Machine

,

Automatic Hot Foil Stamping Machine 7500s/h

,

380×340mm Paper Hot Foil Stamping Machine

Product Description:

Fully automatic bronzing machine is another office text printing equipment after printers, all-in-one machines, label machines, barcode machines, scanners, etc. As a product mainly aimed at high-end stamping shops, its advent enables bronzing products to be completed in stamping shops, eliminating the need to go to the production factory to customize as before, simplifying the process and improving efficiency; for the bronzing demand side In other words, enterprises, schools, flower shops, etc., do not need frequent confirmation, which reduces the production process. After the demand is put forward to the printing shop, it can be completed in the printing shop. Simple bronzing needs can even be done "on the fly" Desirable", changed the traditional process that requires frequent communication, confirmation, and modification among "demand side, supplier, and production factory", making the bronzing process more time-saving, labor-saving, and communication-saving.

Advantages of automatic hot stamping machine

1 ,Paper Feeding Unit

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 0

1) The enlarged paper feeding head (Feida head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

2 ,Paper Conveying Unit:

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 11) The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying



2) Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper



3 ,Paper Die-Cutting Unit

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 234KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 3



1. Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
2. Automatic pressure control and automatic adjust compasses make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.



4 ,Hot Foil Stamping Unit

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 4

1,The foil can step in both cross and longitudinal two directions (2 cross rollers and 3 longitudinal rollers), which can greatly meet different client's needs in various stamping.
2,The foil can step, which greatly meet client's needs in various stamping. 12 heating zones can be set individually and in constant temperature.
3,Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.

Technical Parameters

34KW Heating Plate Automatic Hot Foil Stamping Machine For 380×340mm 5







Customization:

Customized Services for SING JIGUO TMY-1060H Automatic Hot Foil Stamping Machine
  • Brand Name: SING JIGUO
  • Model Number: TMY-1060H Automatic Foil Stampig & Die Cutting machine
  • Place of Origin: CHINA
  • NO.of Foil Rollers: Horizontal: 3, Vertical:2
  • Stamping Tempreture: 20~200℃
  • Max.Pressure: 320 Tons
  • Min. Paper Size: 380×340mm


Support and Services:

Automatic Hot Foil Stamping Machine offers technical support and service. Our technical support team is available to answer any questions you may have and to help you troubleshoot any issues you may encounter. We also offer a wide range of services, such as installation, maintenance, custom engineering, and repair services. If you have any questions or need any assistance, please do not hesitate to contact us.





FAQ:

Q1: What is the Brand Name of Automatic Hot Foil Stamping Machine?

A1: The Brand Name of Automatic Hot Foil Stamping Machine is SING JIGUO.

Q2: What is the Model Number of Automatic Hot Foil Stamping Machine?

A2: The Model Number of Automatic Hot Foil Stamping Machine is TMY-1060H Automatic Foil Stampig & Die Cutting machine.

Q3: Where does Automatic Hot Foil Stamping Machine come from?

A3: Automatic Hot Foil Stamping Machine is from CHINA.

Q4: What is the feature of Automatic Hot Foil Stamping Machine?

A4: Automatic Hot Foil Stamping Machine is the combination of hot foil stamping and die cutting on one machine. The machine is equipped with a precision servo system, a self-diagnosis system and a user-friendly touch-screen operating interface.

Q5: What materials can Automatic Hot Foil Stamping Machine process?

A5: Automatic Hot Foil Stamping Machine can process paper, cardboard, film, leather and other materials.
