Product Details:
|
Weight: | 18T | Warranty: | 1 Year |
---|---|---|---|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7500*4600*2260mm |
Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
Power(w): | 20KW | Name: | Die Cutting Machine |
Highlight: | MY-1320E Automatic Die Cutting Machine,Automatic Die Cutting Machine 1500E,1680E Auto Feed Die Cutting Machine |
Products Description
PARAMETER | |||

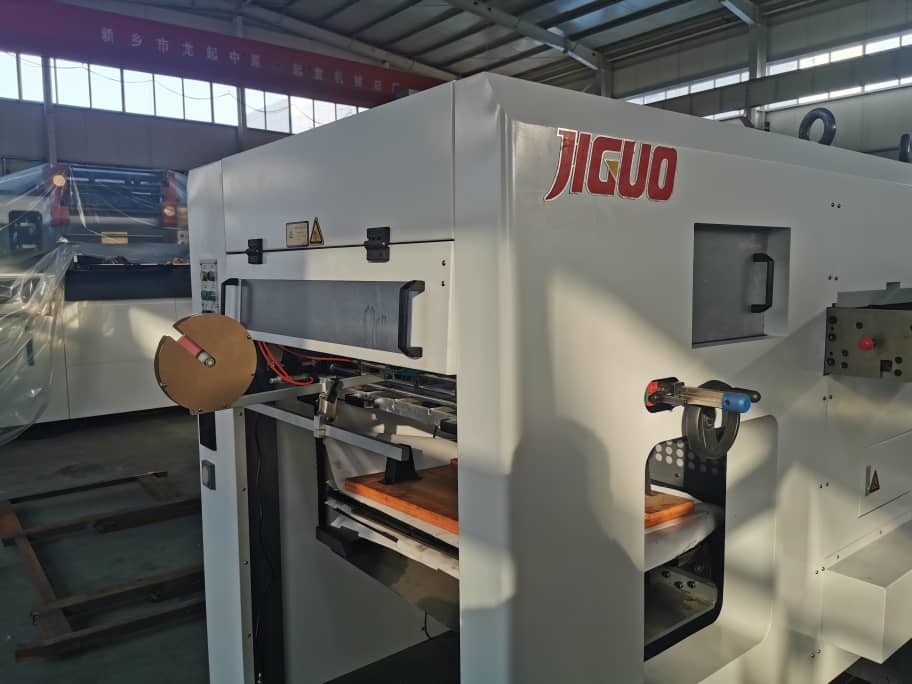

Model | MY-1320E | MY-1500E | MY-1680E |
Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
Min. sheet size | 450X400(mm) | 500X420(mm) | 580X500(mm) |
Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
Max.cutting speed | 6000s/h | 5000s/h | 4500s/h |
Die cutting precision | ±0.15mm | ±0.18mm | ±0.2mm |
Sheet thickness |
200-2000g/㎡(Cardboard) ≤8mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤8mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤8mm(corrugated board) |
Max.pressure | 380T | 400T | 480T |
Total power | 20kw | 20kw | 20kw |
Net weight | 18T | 20T | 23T |
Overall dimension | 7500X4600X2260mm | 7990X5100X2260mm | 8900X5450X2500mm |
Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
