Product Details:
|
| Weight: | 20T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | (5100+1450)*(2280+1850)*(2230+670)mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 21KW | Name: | Die Cutting Machine |
| High Light: | MYR-1060 High Automatic Die Cutting Machine,Automatic Die Cutting Machine Hot Embossing,Hot Embossing Automatic Die Cutter |
||

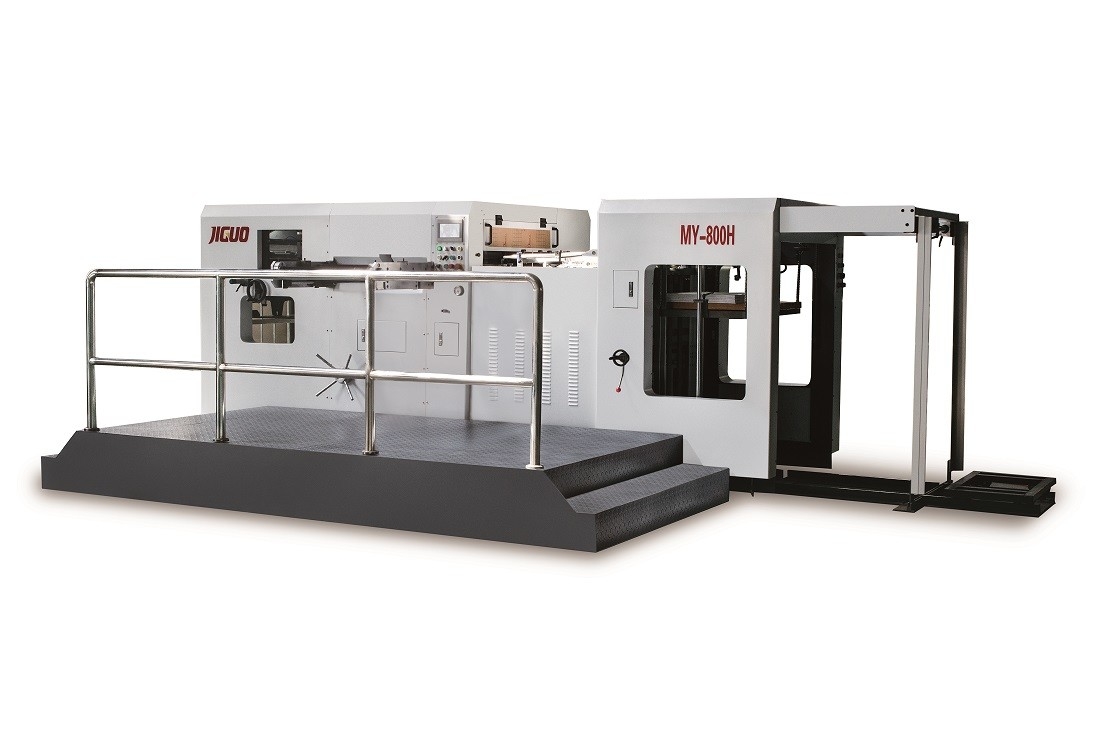

1. Automatic Die Cutting Machine is designed for die cutting specially. It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.
Products Description
| PARAMETER | ||
| Model | MYR-1060High | MYR-1150High |
| Max. sheet size | 1070X770(mm) | 1180X770(mm) |
| Min. sheet size | 400X360(mm) | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) | 1130X750(mm) |
| Max.cutting speed | 7000s/h | 7000s/h |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Sheet thickness |
0.1~4mm |
0.1~4mm |
| Max.pressure | 600T | 600T |
| Total power | 57kw | 57kw |
| Net weight | 17T | |
| Overall dimension | 6700 x 4100 x 2350mm | 6700 x 4260 x 2350mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
FAQ
1.Q:Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q:What is your delivery time ?
A:Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q:How was your machine warranty ?
A:our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q:How can you do after sales service ?
A:beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q:What’s your payment terms ?
A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
