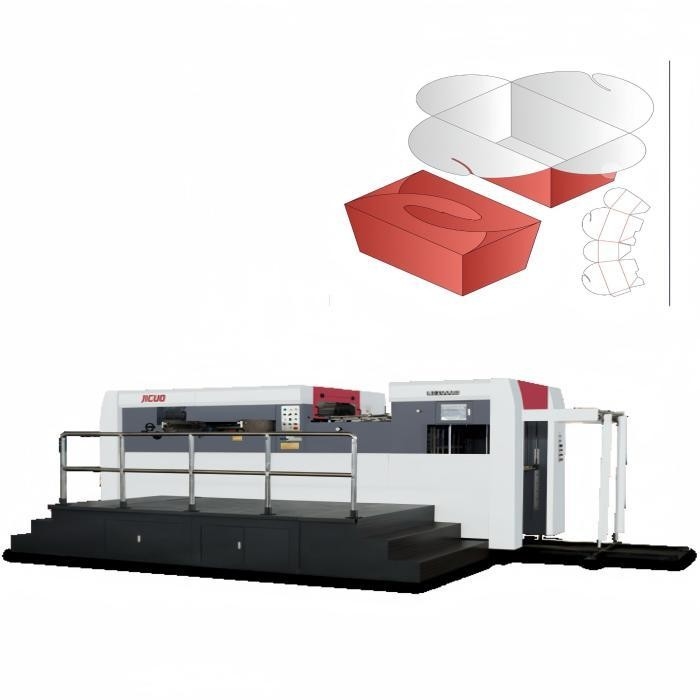

JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package

JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package
JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package
JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package

Large Image :  JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MY-1060H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000 to $800,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 set

JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package

Description
Name: Die Cutting Machine Condition: New
Place Of Origin: Hebei,China Brand Name: JIGUO
Max.paper Size: 1060*760mm Min.paper Size: 400*360mm
Max.cutting Speed: 7500s/h Max.pressure: 350T
Weight: 17T Power(w): 21KW
Dimension(l*w*h): 6550*4130*2900mm Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Type: Die-cutting Machine,Paper Cutting Machine
High Light:

1060 Automatic Die Cutting Machine

,

Automatic Die Cutting Machine Paper Package

,

Auto Cutting Creasing Machine 1060

JIGUO 1060 Automatic Die Cutting And Creasing Machine Paper Package

    Main Feature

JIGUO 1060 Automatic die-cutting & creasing machine is the key equipment for die-cutting, creasing and cold-pressing embossing for cartons, cartons, trademarks and other paper packaging and decoration products. This machine adopts Japanese intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, manual pressure regulation and other transmission mechanism design to ensure the high-speed and stable operation of the equipment.Refer to the Bobst system.At the same time, the machine is equipped with practical and reliable mechanisms such as pre-stack device, auxiliary paper delivery mechanism, and manual sampling, so that the machine can give full play to its working efficiency during use. The electrical components and transmission components of this machine adopt imported brands to ensure die-cutting accuracy and operational reliability during use. Use the man-machine interface to monitor the working status of the equipment, display the location of the fault point, the troubleshooting method and related help information, and fully realize the man-machine communication.



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 0



   Products Description



PARAMETER
Model MY-1060H
Max.paper size 1060X760mm
Min.paper size 400X360mm
Max. die cutting size 1040X740(mm)
Max.cutting speed 7500s/h
Sheet Thickness 0.1-4mm
Max.pressure 350T
Total power 21kw
Net weight 17T
Overall dimension 6550X4130X2900mm
Air requirements 0.8Mpa,>0.36m³/min



   Paper Feeding Unit



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 1



■ Non-stop high-speed paper feeding section



■ The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.



■ Adjustable air suction tube, suction head and air distribution valve superhard alloy treatment.



■ Horizontal paper parting and blowing device.



■ The main and secondary stacking paper table does not stop alternately, and feeder does not stop operation.



■The pre-stack device is equipped with rails so that the operator can accurately and easily load the stack into the feeder.



■ Side gauge, front gauge paper photoelectric detection.



             ■ Import paper conveyor belt and stainless steel conveyor plate.



             ■ Pneumatic lifting device for feeding frame.



■ Single point clutch: the conveying part and the main part can be separated and combined synchronously at any time, simplifying and facilitating the operation sequence. No matter the sample, test pressure, etc., can be arbitrarily separated and closed conveyor section.



              ■ PLC and electronic CAM control the timing of the whole machine.



   Paper conveying Unit



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 2



               ■ The paper conveying part is made of stainless steel plate to prevent rust and

                   provide stable and correct paper conveying.



               ■ Paper is positioned by a pushing unit and a pulling unit which can be shifted

                  conveniently for different specifications of paper.



   Die-cutting Unit



        JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 3              JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 4



■ Nodular cast iron main body and left and right wall panels and upper platform, lower platform.



■ This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.



■ The oil route is forcibly lubricated by a oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.



                ■ The novel transmission mechanism provides high speed die-cutting, and the                        highly precise swing link platform improves the padding speed (almost without                      padding), as it is known the pressure can be hardly balanced in most of other                       common machines.



■ The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.



■ The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.



■ The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.



■ The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.



   Delivery Unit



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 5

               ■ Rolling curtain type auxiliary paper collecting frame, can realize non-stop                               machine paper collecting.

■ The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.



■ By the pneumatic sampling, the die-cut paper can be conveniently inspected        at  any time.



   The Torque Limiter



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 6



Adopt the imported torque limiters to ensure the safety of the machine, reduce the damage to the machine and improve the service life of the machine. It can highly protect the Gripper bar, help the operator and improve the machine life.



   Main Transmission Section



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 7



The German machine usually adopts the gear type synchronous belt drive, and the Japanese machine usually uses the main chain drive. This machine design adopts the advanced technology of the tooth synchronized with the high grade German model. Compare with chain design, performance has been greatly improved. Noise reduction is the essential function of the high end type, with the gear type synchronous belt drive, stable,safe,no noise and long life. Avoids the defects that are easy to vibrate and stretch when the chain is used.



   Gripper bar



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 8



7 gripper bars made of cutting edge latest technology running extremely smoothly, thanks to the unique design of large motion angle eccentric worm gear drive system.



   Auto lubrication system



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 9



Adopt concentrated auto lubrication system to make sure the driven parts working better.



   Electrical System



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 10



■ The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan TOSHIBA frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.



■ The human-machine interface can display various working conditions, indicate fault positions and give solutions.



■ The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.



JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 11

JIGUO 1060 Automatic Die Cutting Machine Auto Cutting Creasing Machine Paper Package 12
