Product Details:
|
| Name: | Automatic Die-Cutting & Creasing Machine | Type: | Die Cutting Machine,Paper Cutting Machine |
|---|---|---|---|
| Max.Paper Size: | 1060*760mm | Max.Cutting Speed: | 7500s/h |
| Power(w): | 21KW | Weight: | 17T |
| Dimension(l*w*h): | 6700*4100*2350mm | Computerized: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Multi-function: | Die Cutting, Creasing& Embossing Paper, Cardboard |
| Cutting Materials: | Paper, Paperboard, Carton, Corrugated Sheet | Display Area: | Mexico, UK, Egypt, Turkey, Saudi Arabia, Etc |
| Highlight: | Flatbed Die Cutter Machine,21KW Flatbed Die Cutter Machine |
||

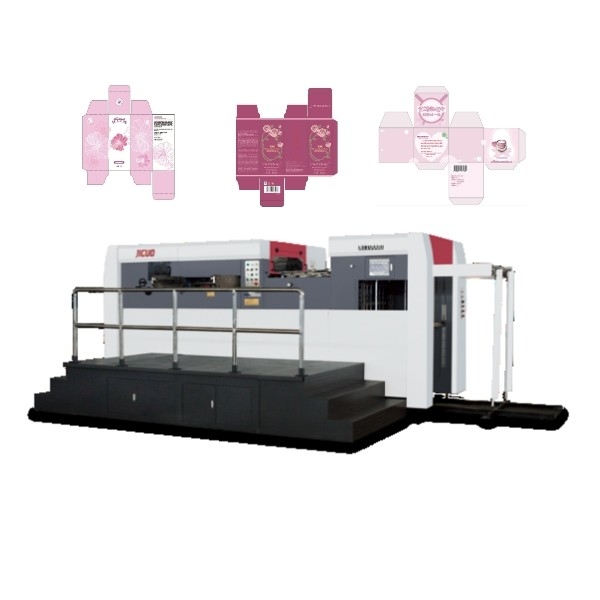

JIGUO MY-1060H Automatic Die Cutting Machine Paper Die Cutting Machine Flatbed Die Cutter Machine
The advantages of flat die cutting machine are:
1. Wide range of application: cardboard above 250g and corrugated cardboard below 9mm can be processed.

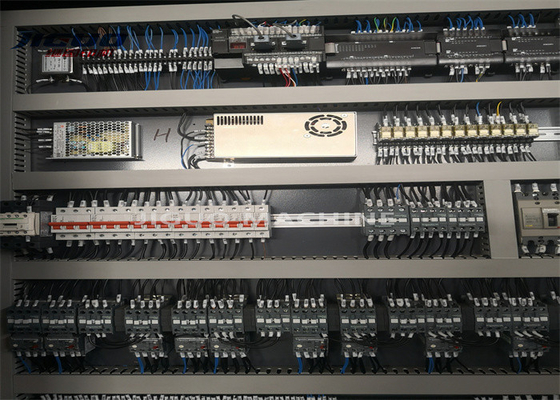

2. All electrical components are controlled by PLC, running smoothly and starting quickly.
3. Exquisite processing technology: every process has been carefully processed.
4. Safer operation: photoelectric switches are installed at 17 places, with complete functions.
5. Higher work efficiency: matching with pre-press equipment, the efficiency is increased by 30%.
The automatic flat die-cutting machine is the key equipment for improving labor productivity in the post-press processing of printed and packaged products. It is not only an efficient, safe and high-quality die-cutting and molding equipment, but also an updated product of the "slot machine". , By the majority of packaging and printing enterprises of all ages.
With the development of packaging machinery, food packaging, gift packaging, and wine packaging are becoming more and more important. The shape of the packaging box is various, and the flat die-cutting machine is the earliest packaging machinery product used in the product packaging machinery. The cutting speed of the flat die-cutting machine is very fast. Compared with the previous die-cutting machine, the speed has been improved several times. The paper-cutting speed is the guarantee of the efficiency of the whole die-cutting machine; the traditional paper feeding method is to use The new type of pens adopts the automatic paper suction technology, which can achieve the characteristics of fast and accurate paper suction.
| PARAMETER | |
| Model | MY-1060H |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X740(mm) |
| Max.cutting speed | 7500s/H |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 350T |
| Total power | 21kw |
| Total weight | 17T |
| Overall dimension | (5100+1450)X(2280+1850)X(2330+670)mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Detailed Images of flat die cutting machine
|
1. Paper Conveying Unit: 1) The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
2) Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper. |
|
2. Paper Collecting Unit 1) Paper can be collected automatically and orderly.
2) The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
3) By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time. |
