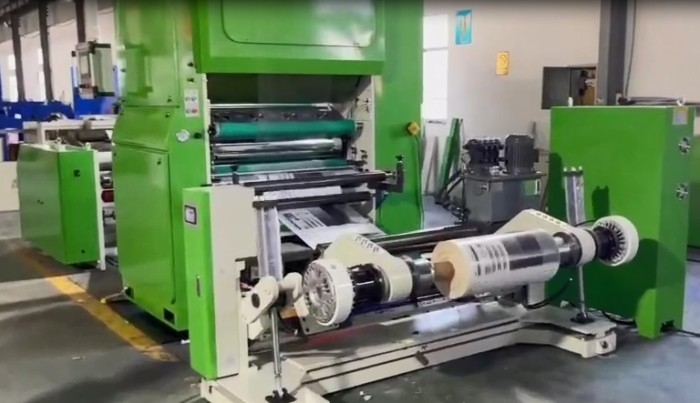

JIGUO Roll To Roll Lamination Machine Film Laminating Machine FMZ-1500J

JIGUO Roll To Roll Lamination Machine Film laminating Machine FMZ-1500J

 Roll To Roll Lamination Machine Description

1. Shaftless Unwinding: The unwinder adopts shaftless feeding system that both suitable for 3inch and 6inch paper core and could support big jumbo roll. Shaftless unwinder is easy for loading and unloading.

2. Compact machine structure design that would easy for cross the paper materials in machine and save the materials waste.

3. Ultrasonic Web guide: Adopts ultrasonic web guide system, that with sensitive correction sensor.

4.Teflon coated drying roll: Exclusive treatment of drying roll with Teflon coating that make the roll surface smooth and glue stickless. Compare with chrome plate, the temperature will more balanced.

5.Double metal roll glue coating system: High precision treatment double rolls coating system with Rubber blade (metal blade) that could available for various glue, and also save a lot glue (3-4g/m2).

6. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

7.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

8. Synchronous Belt Driving System: Special structure design in minimum transmission line , adopts synchronous belt to drive the laminating unit to guarantee the high laminating speed with low noise.

9. Pneumatic Pressure System: fully pneumatic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

10.Man-Machine Interface System: Advanced 10inch color screen with PLC system make the operation easy and convenient.

11. Automatic tension system: The machine comes with auto tension system to control the jumbo materials. And adopts independent tension system for film roll.

12. Rewinder: Thicken machine body to support big rolls and make sure the reminded materials roll edge flat and smooth.

 Roll To Roll Lamination Machine Specifications

Performance of Roll To Roll Lamination Machine

1. Shaftless unwinding system with ultrasonic Web guide system   Shaftless unwinding system, suitable for 3-inch and 6-inch paper cores, easy to load and unload.   The hydraulic system can support heavy load and large jumbo reel ultrasonic correction device, mainly advanced technology with high precision and sensitivity.

3. Drying system   Specially designed infrared lamps are set inside the drying roller to make the glue dry quickly but with low power consumption. Blower plus exhaust fan to recover hot air and save energy. Telfon coated surface for uniform temperature and glue anti-blocking for easy cleaning and maintenance

Roll To Roll Lamination Machine

FAQ

Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.

Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?
A: Normally about 20-30 days.

Q4. What is the delivery time?
A: 35-50days after deposit.

Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.

Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
