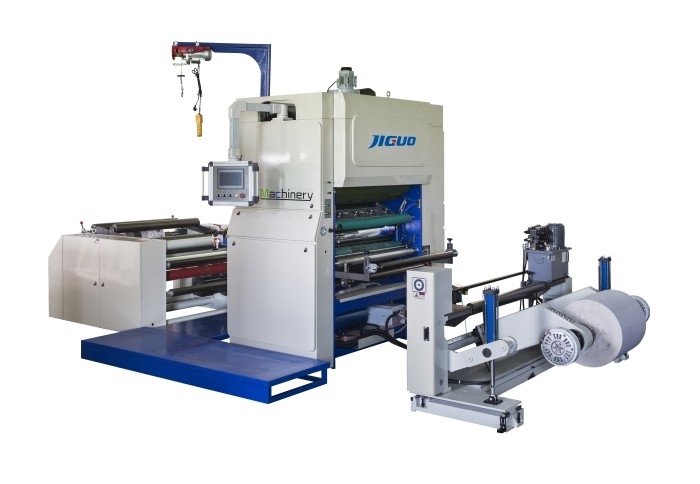

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together
Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together

Large Image :  Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: JIGUO FMZ-1300J Roll to Roll Laminating Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-50000/set
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together

Description
Type: Laminating Machine Computerized: Yes
Place Of Origin: China Video Outgoing-inspection: Provided
Max. Width: 1250mm Working Speed: 80-100m/min
Total Power: 45KW Diameter Of Rewinding: 1400mm
Machine Weight: 8200kg Overall Dimension: 6500*3000*2800
High Light:

2Roll Laminating Machine

,

45KW Roll To Roll Laminating Machine

JIGUO Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Laminating Together



 Roll To Roll Lamination Machine Description



1. Time saving and high efficiency: Compared with the original laminating machine, there will be no overlapping error, and the working speed can be increased by 100%.



2. Low waste rate: especially thin paper, which greatly reduces the waste of materials.



3. The machine adopts a powerful hot air circulation drying system, which is fast, stable and energy-saving.



4. The heating roller adopts oil heating + electromagnetic heating, double heating system, which can be switched at any time to ensure uniform temperature and high temperature control.



5. Automatic hydraulic loading and unloading system, convenient for machine operation.



6. The humanized design of the touch screen brings a simple operating system, and can display error codes on the touch screen, which is convenient for tracking and solving machine problems.



7. Unwinding adopts shaftless feeding system with automatic deviation correction system.



8. The rewinding machine adopts frequency conversion motor to control tension and speed, with high precision.

                  Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together 0



 Roll To Roll Lamination Machine Specifications

PARAMETER
Model FMZ-1300J

Max. width

1250mm

Working speed

80-100m/min

Paper thickness

80-500gsm

Total power

45kw

Diameter of unwinding

1400mm

Overall dimension

6500*3000*2800mm

Machine weight

8200kg





Performance of Roll To Roll Lamination Machine

1. Film Unwinding



Install air shaft for film unwinding with auto tension controller. Special design for big diameter film roll and the roll can be adjusted to right and left..

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together 1

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together 2

2. Laminating Unit



Heating roller by electromagnetic heating plus oil heating, double heating systems guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.

Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform and easy to adjust without bubbles,spots or wrinkle.

3. Drying system



Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power comsuption.

Blowing fans plus exhaust fan rececle the hot air and energy saving

Telfon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together 3



Roll To Roll Lamination Machine

Roll To Roll Laminating Machine FMZ-1300J Two Different Roll Materials Together 4
