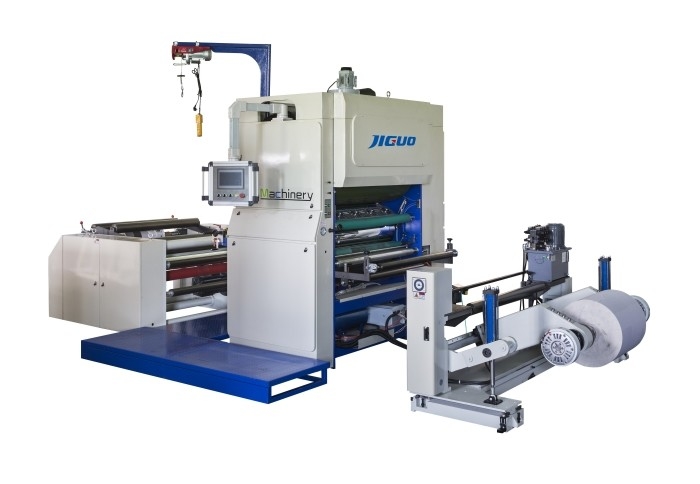

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J
JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J

Large Image :  JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J

Product Details:
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: JIGUO FMZ-1100J Roll to Roll Laminating Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-50000/set
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J

Description
Place Of Origin: China Type: Laminating Machine
Computerized: Yes Video Outgoing-inspection: Provided
Max. Width: 1050mm Working Speed: 80-100m/min
Paper Thickness: 80-500gsm Overall Dimension: 6500*2800*2800mm
High Light:

100m/min Roll To Roll Lamination Machine

,

1050mm width Laminating Machine

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J



 Roll To Roll Lamination Machine Description



1. Time saving and high efficiency : Compared to the original sheet laminating machine there will be no overlapping error and working speed can be 100 % higher .



2. Low waste rate : High reduce the waste of material especially for thin paper .



3. Machine adopts strong hot cyclic air drying system , drying fast , steady and energy saving .



4. Heating roll adopts oil heating + electromagnetic heating , double heating system that can switch any time and make sure unifrom temperature and high temperature controlling .



5. Automatic hydraulic material loading and unloading system that easy for machine opertion .



6. Humanization design with touch screen that bring simple operation system , and could show the error code in touch screen that easy for following and solving machine issue .



7. Unwinding adpots shaft less loading system with auto web guide system .



8.Rewinder with variable frequency motor to control the tension and speed with high precision .



                  JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J 0



 Roll To Roll Lamination Machine Specifications

PARAMETER
Model FMZ-1100J

Max. width

1050mm

Working speed

80-100m/min

Paper thickness

80-500gsm

Total power

42kw

Diameter of unwinding

1400mm

Overall dimension

6500*2800*2800mm

Machine weight

6800kg





Performance of Roll To Roll Lamination Machine

1. Shaftless unwinding system with ultrasonic Web guide system



Shaftless unwinding system that could suitable for 3inch and 6-inch paper core, and easy for loading and unloading.

Hydraulic pressure system that could support load heavy and big jumbo roll ultrasonic web guide, that mostly advance technology with high precision and sensitive.

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J 1

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J 2

2. Laminating Unit



Heating roller by electromagnetic heating plus oil heating, double heating systems guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.

Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform and easy to adjust without bubbles,spots or wrinkle.

3. Drying system



Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power comsuption.

Blowing fans plus exhaust fan rececle the hot air and energy saving

Telfon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J 3



Roll To Roll Lamination Machine

JIGUO Roll To Roll Lamination Machine Laminating Machine FMZ-1100J 4



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
