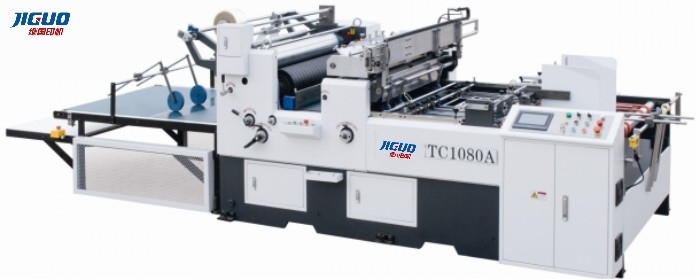

Automatic Window Patching Machine For Carton Box / Corrugated Paper

Automatic Window Patching Machine For Carton Box / Corrugated Paper
Automatic Window Patching Machine For Carton Box / Corrugated Paper
Automatic Window Patching Machine For Carton Box / Corrugated Paper Automatic Window Patching Machine For Carton Box / Corrugated Paper Automatic Window Patching Machine For Carton Box / Corrugated Paper Automatic Window Patching Machine For Carton Box / Corrugated Paper Automatic Window Patching Machine For Carton Box / Corrugated Paper

Large Image :  Automatic Window Patching Machine For Carton Box / Corrugated Paper

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-1080A Automatic Window Patching Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD30000-100000/set
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Automatic Window Patching Machine For Carton Box / Corrugated Paper

Description
Applicable Industries: Manufacturing Plant, Printing Shops Condition: New
Processing Type: Laminating Machine Product Type: Window Patching Machine
Max. Paper Size: 1080*650mm Min. Paper Size: 100×100mm
Max Window Size(mm): 780×450mm Min Window Size(mm): 40×40mm
Cardboard (g/㎡): 200-1000 Max Working Speed(s/h): 10000s/h
High Light:

Carton Box Window Patching Machine

,

Corrugated Paper Window Patching Machine

,

ISO9001 Automatic Window Patching Machine

JIGUO TC-1080A Automatic Window Patching Machine



Automatic Window Patching Machine Product features:



TC-1080A Automatic window patching machines are special equipment for carton box, color box window lamination; They are advanced models in domestic market. Perfect design ensure the machines have the feature of high efficiency, high-precision, high stability and easy operation.



These machines are available for both cardboard and corrugated paper.Like tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons and so on.

Automatic Window Patching Machine For Carton Box / Corrugated Paper 0



Automatic Window Patching Machine Product types:

Automatic Window Patching Machine For Carton Box / Corrugated Paper 1Automatic Window Patching Machine For Carton Box / Corrugated Paper 2Automatic Window Patching Machine For Carton Box / Corrugated Paper 3

Automatic Window Patching Machine Technical Parameter

Model TC-1080A Automatic Window Patching Machine
Max paper size(mm) 1080*650
Min paper size(mm) 100*100
Max window size(mm) 780*450
Min window size(mm) 40*40
Cardboard (g/㎡) 200-1000
Corrugated thickness(mm) ≤4.0
Film thickness 0.05-0.25mm
Max working speed(s/h) 10000
Total power (kw) 10
Total weight (T) 3.0
External dimension(mm) 4958*1960*1600



Automatic Window Patching Machine Local display

Rotation rubber roller(can pull-out)



◆ Single rubber roller cooperate with baffle to gluing.

◆ Avoid the waste of glue,reduce the volatilization.

◆ When the machine stopped,the rubber roller can rotation driving by the motor. Avoid the glue solidify on the face of rubber roller.

◆ When cleaning the rubber roller, this part can pull-out entirely,reduce cleaning time.

Automatic Window Patching Machine For Carton Box / Corrugated Paper 4



Gluing



◆ Use automatic gluing instead of hand movement.

◆This part can adjust the glue roller right or left,up or down.

◆ When the photoelectric sensor reacted the paper. If there are papers pass,the machine will use the air cylinder to control platform to uplift.

◆ If there are no papers pass,the platform will decline.

◆Avoid the glue smear on the belt.

Automatic Window Patching Machine For Carton Box / Corrugated Paper 5

Suction belt



◆ The two suction belts are wide and thick,increase service life.

◆ With the device of adjust the wind power.

◆ Can adjust wind power according to the sizes of papers.

◆ Ensure that no position offset.

Automatic Window Patching Machine For Carton Box / Corrugated Paper 6



Automatic Window Patching Machine Product display

                  Automatic Window Patching Machine For Carton Box / Corrugated Paper 7



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
