High Speed Two Color Printers And Die Cutting And Slotting With Stacker

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

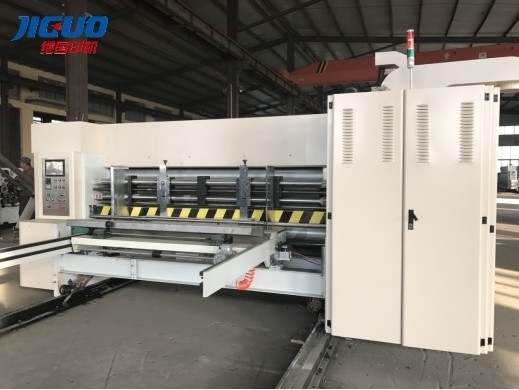

High Speed Two Color Printers And Die Cutting And Slotting With Stacker

High Speed Two Color Printers And Die Cutting And Slotting With Stacker
High Speed Two Color Printers And Die Cutting And Slotting With Stacker High Speed Two Color Printers And Die Cutting And Slotting With Stacker High Speed Two Color Printers And Die Cutting And Slotting With Stacker

Large Image :  High Speed Two Color Printers And Die Cutting And Slotting With Stacker

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-2200*900 Flexo Printing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-300000/set
Packaging Details: wrapping film
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month

High Speed Two Color Printers And Die Cutting And Slotting With Stacker

Description
Type: Flexo Printing Machine Applicable Industries: Manufacturing Plant, Printing Shops
Condition: New Plate Type: Flatbed Printer
Place Of Origin: Hebei, China Usage: Carton Box Printer
Automatic Grade: Automatic Color & Page: Multicolor
/Design Speed: 200 Piece/min Max Cardboard Size: 2000*900 Mm
Min Cardboard Size: 650*270 Mm Printing Material: Corrugated Cardboard
High Light:

Cardboard Two Color Flexo Printing Machine

,

2000x900mm Carton Box Flatbed Printer

,

2000x900mm 2 Color Flexo Printing Machine

JIGUO FMZ-2200*900 High Speed Two Color Printers And Die Cutting And Slotting With Stacker Flexo Printing Machine



Flexo Printing Machine Function and characteristics



1. The whole machine electric appliance and computer software all adopt international famous brand, schneider, omron, Siemens.the quality is stable and reliable .Man-machine interface, computer order management, easy operate.



2. Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.



3. The machine shaft, roller are adopted high quality steel, grinding processing,high precision computer dynamic balancing correction and surface hard chromium plating.



4. The engine drive gear is adopted 40Cr alloy steel, carburizing quenching treatment, hardness HRC58-62And gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision.



5. Machine transmission parts (shaft, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance. It is suitable for long-term high speed running with high torque.



6. The machine drive bearing ,important driving parts adopt international famous brand: NSK,simple maintenance,long service life.



7. The engine lubrication system is adopted automatic spray type lubrication, equipped with double oil level balance system.



8. It adopts Working gap adjustment, rapid adjustment without wrench, quick performance and convenient adjustment.



9. This machine adopt double frequency changer design ,start and run more steady ,energy saving .



10. The machine is adopted adjustment preset functions, feeding , printing, slotting, die-cutting, automatic zero resetting and memory automatic reset.



High Speed Two Color Printers And Die Cutting And Slotting With Stacker 0



Flexo Printing Machine Products Description​

PARAMETER
Model FMZ-2200*900
Design speed 200(piece/min)
Economic speed 180 (piece/min)
Max Cardboard size
2000*900mm
Min cardboard size
650*270mm
Max printing size 2000*900mm

Main motor power

15kw

Air fan power

7.5kw

Producing power

25kw

Total power

25kw

Die cutting precision

±1mm

weight about

5 Ton



Flexo Printing Machine Local Details



一,Auto Feeder department

1. The machine clutch:

1) The machine clutch electric control with alarm, moving last warning bell ring, Ensure workers safety.

2) Pneumatic interlocking device,Lock firmly, convenient and accurate.

3) The main motor adopts frequency conversion motor, frequency conversion controller, energy saving, stable starting, attached to the motor start protection device.

4) Main engine self-locking function: the unit didn't completely locking state, the main engine cannot be started, ensure the safety of the operator and machine; Host under normal working condition, the on-off function is automatically locked, avoid the wrong operation of the machine and personnel injury.



2. Lead Feeder paper system:

1) The suction assist feeder paper, draught fan 7.5 kw, different levels can be bent according to the board, air volume adjustment, ensure bent cardboard and thin and min cardboard feeding smoothly.

2) Lift paperboard,drop paperboard adopt cylinder push, move quick and powerful.

3) Feeder wheel is from Taiwan MaxDura brand, Durable Wear Resistant.

4) Skip feeding paper device,( can choose according to need continuous or skip feeder paper).To ensure a large cardboard can also processing.

5) Install 7 inch touch screen, which can be displayed automatically production quantity, production speed, can be set production quantity.

6) Side baffle and front baffle is electric synchronous adjustment,back baffle box is electric adjustment.



3. Feeder paper roller:

1) Up roller Outer diameter: ɸ 136 mm.

2) 45 # seamless steel tube, parcel wear-resisting rubber, and do dynamic balance correction.

3) Down roller,external diameter ɸ 126 mm, embossing and hard chromium plating , and do dynamic balance correction .

4) Feeder Paper roller gap dial manual adjustment, adjustment range 0-16mm .

5) The front feed rubber roll (elastic rubber roll) pressure adjustment, can reduce the strength of corrugated cardboard damage.



二,Printing department:(Optional 1-6color printing unit)

High Speed Two Color Printers And Die Cutting And Slotting With Stacker 1

1. Printing roller:

1) The outer diameter :288mm, (including the plate of the outer diameter is:ɸ 300mm).

2) The steel tube surface grinding , hard chrome plating.Roll horizontal direction and circumferential direction have its benchmark scribed line, convenient to Installation the printing plate .

3) Computer dynamic balancing correction,smooth operation.

4) Ratchet fixed volume edition axis.

5) Full Plate Hanging plate slot, suitable for 9 -10mm plate of the article.

6) Loading and unloading of the print plate , pedal switch of electric control forward and reversing.

7) About printing roller horizontally move by electric adjustment, the maximum amount of mobile for about 10 mm, with a limit switch.



2. The printing press roller:

1) The outer diameter : 156mm . Steel pipe surface grinding, hard chromium plating.

2) Adopt the high quality fine machining of seamless tube,Computer dynamic balance correction, smooth operation.

3) The printing press roller gap dial manual adjustment,adjustment range0-12mm.



三, Die cutting unit(with slotting attachment )

High Speed Two Color Printers And Die Cutting And Slotting With Stacker 2

1. The roller is good quality steel and is chromed with dynamic balance , it can increase the running steady and reliable.

2. The cutter mold roller and cushion roller gap adjusts manual adjustment.

3. The cutter mold roller adopts planet gear structure , high precision and bearing power , no matter it stops or runs , it can adjust with electric 360 degrees adjustment.

4. When stop feeding paper , the two rollers will be separate and decrease the rubber roller attrition.

5. The linear speed compensating device , when the cushion roller diameter changes , the linear speed will compensate automatically , no need worker to adjust speed and guarantee each batch carton box size is the same and prolong the cushion and cutter life.



四, Stacking unit:

High Speed Two Color Printers And Die Cutting And Slotting With Stacker 3

1. Catch paper arm can be manual or automatic operation, has insurance mechanism, prevent paper arm suddenly whereabouts, ensure the safety of operating.

2. Bed table lifting and down force, the chain drive.

3. Stack height is 1800 mm.

4. Bed table with cardboard stacking automatically adjust tilt height, lifting motor, with brake function. Bed Table can maintain a fixed position, not falling.

5. Vapour-pressure type Lift the paper mechanism ,when cardboard stack to a predetermined height, catch paper pallet automatically open, the support hold up the cardboard.

6. Planar wrinkles belt , prevent the cardboard down glide .

7. Use vibrator to remove cardboard waste.To achieve the waste and cardboard separation clean.

8. Conveying cardboard with PU round belt.

9. The speed can be adjusted arbitrarily according to the speed of die-cutting machine.



High Speed Two Color Printers And Die Cutting And Slotting With Stacker 4



High Speed Two Color Printers And Die Cutting And Slotting With Stacker 5



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
