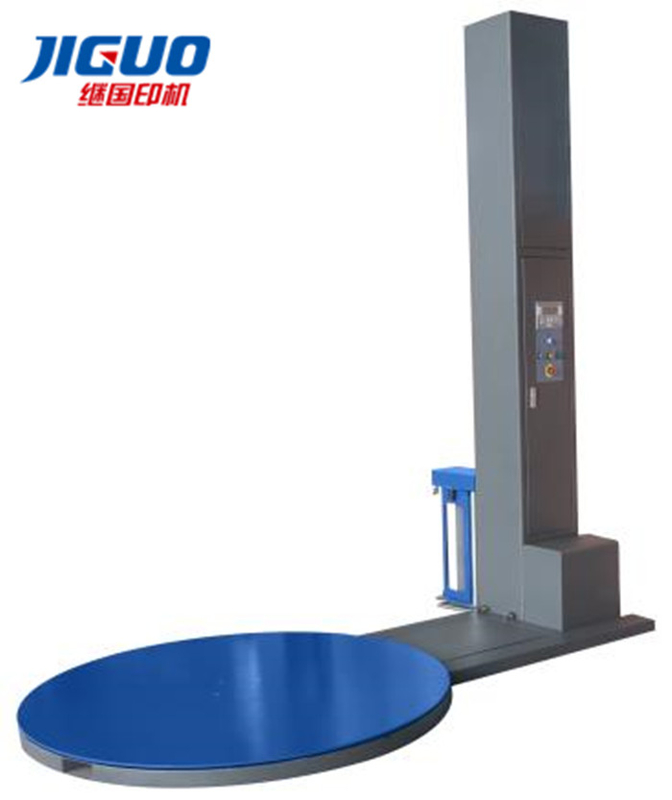

T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines

T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines
T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines

Large Image :  T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: T1650F-L Semi-Auto Pallet Stretch Wrapper Corrugated Box Machines
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-3000/set
Packaging Details: wooden case
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 60sets per month

T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines

Description
Name: Semi-Auto Pallet Stretch Wrapper Corrugated Box Machines Max Load Size(mm): 1200× 1200×2400mm
Turntable Diameter: 1650mm Mast Heigh: 2800mm
Turntable Heightht: 78mm Bearing: Max 2000kgs
Place Of Origin: Hebei, China Key Selling Points: Easy To Operate
High Light:

T1650F-L Semi Auto Corrugated Box Machines

,

CE Wrapper Corrugated Box Machines

,

Pallet Stretch corrugated box making machine

T1650F-L Semi-Auto Pallet Stretch Wrapper Corrugated Box Machines



Controls

Photo-eye pallet height sensor

0-9 separate top,bottom&up-down wrap count selectors

Reinforce wrap allow more wrap on same location

0-15RPM variable turntable speed by frequency inverter

Separate variable carriage up/down speed

Cycle pause capability



Turntable

Go home position after wrap cycle finished

Soft start/soft stop

Heavy duty chain drive

Rotating turntable thickness 10mm



Film carriage

Powered pre-stretch system up to 1:3.5 to min film consumption

Carriage door opens for effortless roll change and thread film

Film delivery variable speed by separate AC Drive Motor.

Heavy duty double-chain carriage lift, calm and safety.



Packing Material

Stretch wrapping film: Core size: 3’’

Film width: 500mm

Diameter: inner76.2mm; outer max 240mm

Thickness: 14-35μm

T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines 0

T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines 1                       T1650F-L Semi Auto Pallet Stretch Wrapper Corrugated Box Machines 2







Specifications of Semi-Auto Pallet Stretch Wrapper Corrugated Box Machines

PARAMETER
Model T1650F-L

Max load size(mm)

1200× 1200×2400

Turntable diameter

1650mm

Mast height

2800mm

Turntable height

78mm

Turntable speed

0-15rpm

Bearing
Max 2000kgs

Machine weigh

600 kg

Electrics

220V, 50HZ, 1P



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
