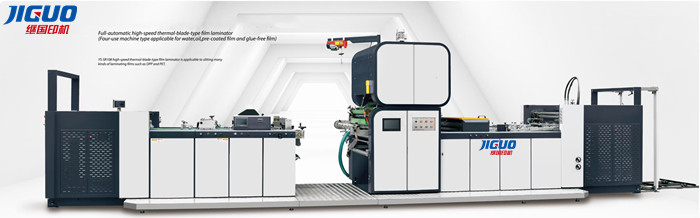

FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine

FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine
FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine

Large Image :  FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-S108 Automatic film laminator machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine

Description
Name: FMZ-S108 Automatic Film Laminator Machine Max. Sheet Size: 1080*1000mm
Min. Sheet Size: 350*300mm Working Speed: 80-100m/min
Total Power: 55kw Place Of Origin:: Hebei, China
Key Selling Points: Easy To Operate Machine Speed: 90m/min
Core Components: Motor, Other, Bearing, Gear, Pump, Gearbox, Engine Applicable Industries: Printing Shops, Advertising Company, Packaging Workshop
Certification: CE
High Light:

Automatic Film Laminator Machine CE

,

bopp film lamination machine

,

BOPP Film Laminator Machine

JIGUO FMZ-S108 Automatic Film Laminator Machine



Machine introduction Automatic Film Laminator Machine

FMZ-S108 full-automatic film laminator is a large-format post-printing packaging, finishing and processing device for recombination of OPP film gluing, glue free film, pre-coated film and paper, which is timely elaborately designed and promoted by our company according to the ever-increasing demands in the current domestic film laminating market and in order to satisfy people’s increasingly increasing demands and applications.

This type of machine has compact and perfect structural design, of which performance is stable and reliable and operation adjustment is simple and convenient, rapid and correct. This machine is integrated with the functions including paper auto-feeding system, cleaning system, gluing system, drying system, film laminating system, conduction oil heating system, pneumatic system, paper separating and finished product auto-collecting system. The electrical control system with high automatic degree is centrally controlled by PLC (programmable logical controller), whose data is inputted through the touch screen and all the function systems are controlled by servo motor/variable frequency motor.



FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 0



Specifications Automatic Film Laminator Machine

PARAMETER
Model FMZ-S108
Max. sheet size 1080*1000mm
Min. sheet size
350*300mm
Paper thickness
150-500Gsm
Film material

BOPP,OPP

Height of feeding pile 1300mm
Height of stacker pile 1270mm
Machine speed 105m/min
Working speed 80-100m/min
Working power
w25-30kw/h
Total power 55kW
Machine weight 8500kg
Machine Dimension 10300×2700×2900mm



Local introduction Automatic Film Laminator Machine



FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 1

(1) The paper feeder ensures stable production during the lamination process, saves time and increases productivity. The equipment adopts Feida, four suctions and four feedings, and the two suction strokes take the orbital pneumatic paper feeding to ensure the smooth feeding of high-speed paper.


(2) Over-limit protection for the rise and fall of the platen.


(3) Pre-stacking mechanism to realize non-stop paper feeding.

















FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 2 Optional configuration - direct push paper function:
It can directly push the whole sheet of neat paper to the lifting platform, so as to save labor and labor; it is easy to learn.









FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 3

(1) The powder removal system adopts double-channel electric heating roller hot pressing.



(2) Electric heating powder remover and refined scraper are used to ensure the removal of paper scraps and dust to the greatest extent; dust cleaning directly falls into the powder chute, which is convenient and easy to handle.











FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 4

(1) The gluing part mainly ensures the uniformity of gluing. The gluing hard chrome roller is generally controlled to be less than 0.002mm.


(2) The drying part adopts large diameter (Φ800mm) heating roller, which adopts intelligent electromagnetic heating device and built-in oil heating system to save electricity. At the same time, ensure that the film will not be thermally deformed or broken;


(3) The hot pressing roller adopts intelligent electromagnetic heating device and built-in oil heating system, with a diameter of 370mm, which ensures that the surface temperature of the roller is more uniform and meets the requirements of high-speed lamination. The maximum total pressure reaches 10T to ensure the quality requirements of high-speed lamination.


(4) The intelligent electromagnetic heating device adopts imported core circuit and PLC automatic temperature control device, the heat loss during the energy transfer process is extremely small, and the heating efficiency is as high as 90% or more.


(5) The whole machine is controlled by PLC and man-machine, and each part is connected with frequency conversion and servo to ensure speed synchronization
It is easy to operate by one person (the main motor adopts variable frequency motor).















































FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 5

(6) Fitting pressure system, automatic hydraulic station adjustment, easy to operate



(7) Automatic magnetic powder control system for film roll tension;



(8) Waste film slitting device: The slitted waste film is wound with a force distance motor, and the winding motor can adjust the current to realize the winding tension.


(9) Equipped with a hanger with a rated load of 200kg, it is easy to hoist the roll film or roll paper (the maximum diameter of the roll film or roll paper is 200mm, and the maximum weight is 150kg).

























FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 6

The paper cutter can be equipped with a two-knife system, which are often equipped with: disc flying knife, sandpaper knife; for PET film, a chain knife can be added.


(1) The automatic laminating machine usually adopts a rotary knife cutting structure, which can ensure the effective breaking of the paper above 128g, but for the paper below 128g, the working speed should be appropriately slowed down.


(2) The adjustment-free conveying belt is suitable for conveying various sizes of thick and thin paper without deformation, making the operation faster and more convenient.


The programmable special module linkage system can automatically increase or decrease with the speed of the laminating machine.

































FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 7

(1) Pneumatic paper aligning mechanism is adopted to ensure neat delivery.



(2) A paper counter is provided.



(3) The electric eye induction automatically drops, and the paper output air pressure adjustment function.



(4) Automatically use deceleration paper delivery function at high speed.



(5) The intelligent automatic waste discharge system automatically discharges the uncut products to avoid scrapping due to paper jams.


(6) The upper/lower double-layer design is suitable for thin paper feeding operation (the spacing can be adjusted according to the thickness of the paper,

So that the thin paper can be accurately sent to the whole paper mechanism, suitable for high-speed production).



































FMZ-S108 Automatic Film Laminator Machine BOPP Film Laminator Machine 8



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
