TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm

Description
Name: Window Patching Machine Max. Paper Size: 1100×650mm
Min. Paper Size: 100×100mm Max. Film Size: 500×500mm
Min. Film Size: 40×40mm Film Sheet Thickness: 0.03-0.4mm
Condition: New Max. Working Speed: 11000s/h
Cardboard: 200-1200g/m² Total Weight: 3000kg
Corrugated Paper: ≤ 5mm Total Power: 9Kw
Warranty: 1 Year Processing Type: Paper Folding Machine
Brand Name:: JIGUO Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing...
Place Of Origin: HeiBei,CHINA Marketing Type: Bestsellers
High Light:

1100×650mm Window Patching Machine

,

PLC Window Patching Machine

,

1100×650mm window patching film machine

TC-1100 Window Patching Machine One Plane With Multiple Windows

TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm 0

TC-1100 Window Patching Machine One Plane With Multiple Windows



Features Window Patching Machine:


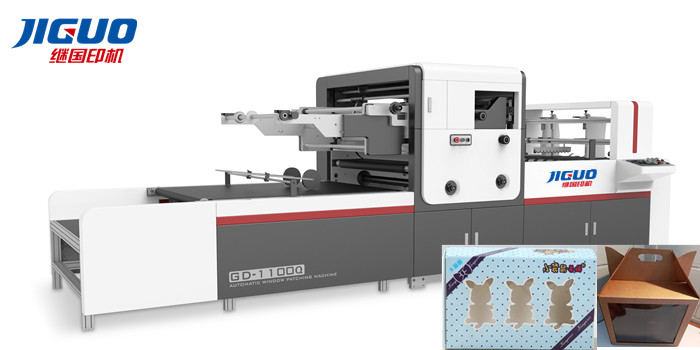

TC-1100 type automatic window sticking machine is a special equipment for opening window color boxes and color box filming. This machine can open multiple windows on one plane. It is one of the most advanced types of window sticking machines in China. The perfect humanized design concept makes this machine have the characteristics of high efficiency, high precision, high stability and easy operation. This machine is suitable for cardboard and corrugated paper. It adopts the bottom feeding method of non-stop paper feeding to separate paper stacks. After pushing the positioning, flexographic module printing glue, stable and accurate film incision and cutting, the paper towel box is realized. , Gift boxes, toy boxes, shirt boxes, milk boxes and other windows have film function.



The machine is divided into five parts: paper feeding, positioning, gluing, filming, and paper delivery.



This machine is reasonable in design, stable in quality, simple in operation and easy to learn. It is a powerful tool in the printing and packaging business.



TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm 1



Specifications Window Patching Machine

PARAMETER
Model TC-1100A/B/C
Max. Paper Size
1100×650mm
Min. Paper Size 100×100mm
Max. film Size
500×500mm
Min. film Size
40×40mm
Film Sheet Thickness
0.03-0.4mm
Max. Working Speed
11000s/h( Corner Cutting 4500s/h)
Cardboard
200-1200/m²
Corrugated Paper
≤ 5mm
Total Power
9Kw
Total Weight
3000kg
Overall Dimensions
4998×1800×1520mm
Overall Dimensions(When
the roller is pulled out)
4998×2650×1520mm



local description Window Patching Machine
1. Human-machine interface
This machine adopts a 7-inch touch screen and a host computer (PLC) to digitally adjust the film length and counting.



2. Servo feeding
The feeding part is driven by a 1.5kw servo motor to ensure the high-speed stability of feeding.



3. Infer positioning
The most common deduction positioning in the world is adopted to ensure the fitting accuracy.



4. Hob cutting film
Using a rotary hob, the entire roll of film is precisely cut to the required length.



5. Whole roll frame film
Install the whole roll of film on the film frame, and can adjust the left and right positions.



6. Diaphragm cut
The cam structure is used to intermittently cut the boxes (such as tissue boxes, etc.) where the diaphragm needs to be opened.


7. Diaphragm left and right adjustment
The left and right position of the diaphragm can be adjusted without stopping by hand twisting.



8. Adjust the glue position left and right
Through the rotation of the hand button, the non-stop adjustment of the left and right glue level is realized.



9. Adjustment of glue level before and after
Through the harmonic differential, the position before and after gluing can be adjusted without stopping.



10. Film front and rear adjustment
Non-stop adjustment of the front and rear position of the diaphragm through the harmonic differential.



11. Paper belt
The paper feeding belt adopts 8-10 endless paper feeding belts made of natural rubber to improve the stability of paper feeding.



12. Accuracy Calibration
Use encoder and photoelectric switch to adjust accurate paper feeding time.



13. Feed Servo
1.5KW well-known brand servo motor is used to ensure the high-speed stability of paper feeding.



14. Servo to film
750W well-known brand servo motor is used with high-precision reducer to achieve precise film feeding, so that the film length accuracy is guaranteed to be within ±0.1mm.



15. Glue volume adjustment
The amount of glue can be adjusted without stopping by rotating the hand knob.



16. Push gauge left and right adjustment
The left and right position adjustment of the push gauge chain is realized by the rotation of the screw rod.



TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm 2

TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm 3        TC-1100 Window Patching Machine One Plane With Multiple Windows 1100×650mm 4
