Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

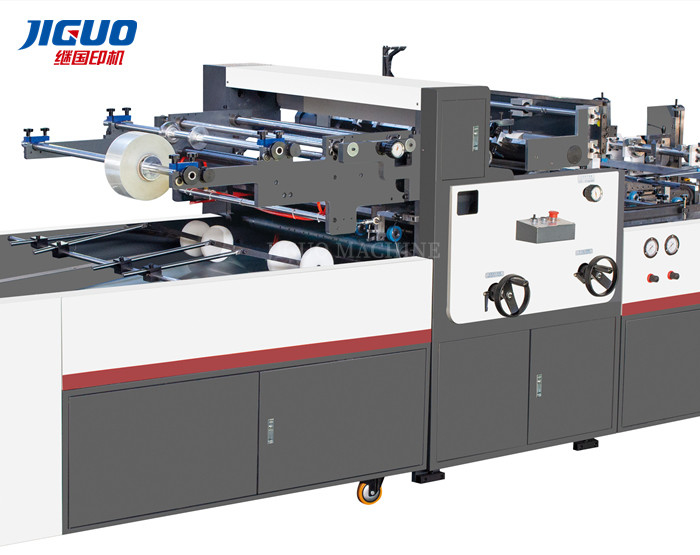

Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box

Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box
Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box
Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box

Large Image :  Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-1500A/B/C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD90000-100000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box

Description
Max. Paper Size: 1500×1050mm Min. Paper Size: 100×100mm
Max. Film Size: 750×750mm Min. Film Size: 40×40mm
Film Sheet Thickness: 0.03-0.4mm Condition: New
Max. Working Speed: 7000s/h Cardboard: 200-1200g/m²
Warranty: 1 Year Total Weight: 3000kg
Corrugated Paper: ≤ 5mm Total Power: 11Kw
High Light:

Shirt Box Window Patching Machine

,

100mm Window Patching Machine

,

7000s/h window filming machine

TC-1500A/B/C China Manufacturer Full-Automatic Window Patching Machine For Tissue Box Medicine Box And Shirt Box



This machine adopts servo motor to control paper feeding and film feeding respectively, and stepping motor independently drives the strap. The origami distance and count can be adjusted in batches. The paper feeding belt of this machine adopts vacuum adsorption. It has the function of automatic lifting and lowering of the coating section when there is no paper. It can mark and cut printed films. It can also be additionally equipped with a tissue box cutter. The machine runs smoothly at high speed and is easy to adjust. The film length and the left and right film positions can be adjusted without stopping. This machine adopts PLC computer control, which has the characteristics of high precision, maintenance-free, abnormal operation protection and so on.



Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box 0



Specifications

PARAMETER
Model TC-1500A/B/C
Max. Paper Size
1500×1050mm
Min. Paper Size 100×100mm
Max. film Size
750×750mm
Min. film Size
40×40mm
Film Sheet Thickness
0.03-0.4mm
Max. Working Speed
7000s/h( Corner Cutting 4000s/h)
Cardboard
200-1200/m²
Corrugated Paper
≤ 5mm
Total Power
11Kw
Total Weight
3700kg
Overall Dimensions
5800×2300×1600mm
Overall Dimensions(When
the roller is pulled out)
5800×3500×1600mm



Local display



1) The paper feeding part is controlled by a servo motor, the paper pile moves intermittently during the paper feeding process, the belt has a long service life, and the paper products are processed to the conveying part in a smooth and orderly manner.



2) Four conveyor chains and four push blocks are installed in the paper feeding part, which can be adjusted according to the shape of the paper.



3) The gluing part adopts an adjustable gluing structure, which is easy to adjust according to the paper requirements and the gluing position, saves the gluing amount, and the gluing part is easy to pull out and clean. The gluing roller stops gluing when the machine stops.



4) The cutting part includes two blades. The upper roll is a film cutting roll with two blades, which completes the cutting of the film. If customers require angled cutting and scoring options, we will add units to this feature. But the maximum speed is 5000-6000 pieces/hour.



Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box 1



Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box 2



Full Automatic Window Patching Machine 7000s/H For Tissue Paper Box 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
