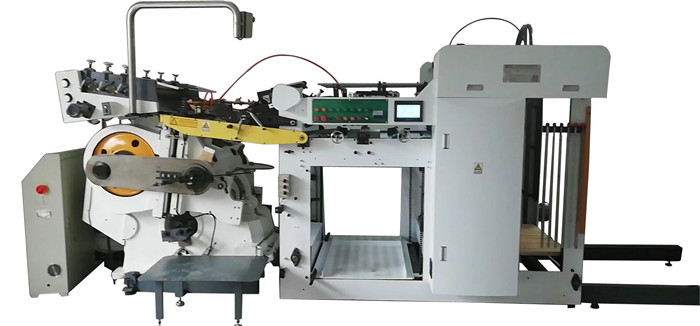

Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet

Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet
Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet

Large Image :  Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: ML-1500S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet

Description
Max.Sheet Size: 1050*1530mm Min. Sheet Size: 540*660mm
Max.Die-cutting Size: 950*1480mm Working Speed: 700-1000s/h
Total Weight: 2600kg Suitable Sheet Thickness: 0.2-5.0mm
Total Power: 12KW Machine Dimension: L7550*W2800* H2300mm
Feeding Pile Height: 1200mm Delivery Pile Height: 900mm
Type: Die-cutting Machine Certification: CE Certificate
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Condition: New
Warranty: 1 Year Place Of Origin: HeBei.China
High Light:

Pvc Card Automatic Die Cutting Machine

,

1530mm Automatic Die Cutting Machine

,

1530mm Pvc Card Die Cutting Machine

ML-1500S Pvc Plastic Card Die Cutting Machine Manipulator Automatic Die Cutting Machine



Main featlures of construction:



1.The machine was converted into a machine that it can walk foil left and right ,up and down.



2.Feeding adopts cylinder to separate and merge.



3.Adjust the pressure adopts servo motor driven,it can be adjusted on the touch screen,and it can fun-tune,it also can adjust without stopping the machine.



4.Lubrication adopts oil pump,the oil can be recycled filter and use.



5.The main motor adopts alternating current inverter control,starting and braking adopts pneumatic clutch device,so that the machine can be operated in any case freely,and more secure.





 Products Description​

PARAMETER
Model ML-1500S
Max. sheet size 1050*1530mm
Min. sheet size 540*660mm
Max. die cutting size
950*1480mm
Suitable sheet thickness 0. 2-5.0mm
Feeding pile height
1200mm
Delivery pile height

900mm

Motor power 7KW
Total power 12KW
Working speed 700-1000s/h
Total weight 2600kg
Machine dimension L7550*W2800*H2300mm



Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet 0



Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet 1



Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet 2





Plastic Pvc Card Automatic Die Cutting Machine Manipulator 1050x1530mm Sheet 3

FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
