1300s H Ml 1300 Automatic Die Cutting Machine Vertical Paper Creasing Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

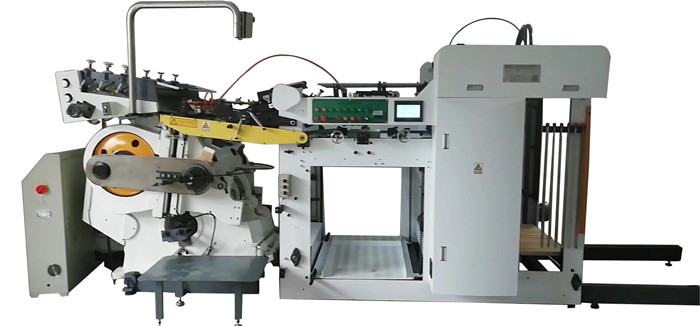

1300s H Ml 1300 Automatic Die Cutting Machine Vertical Paper Creasing Machine

1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine
1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine

Large Image :  1300s H Ml 1300 Automatic Die Cutting Machine Vertical Paper Creasing Machine

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Model Number: ML-1300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

1300s H Ml 1300 Automatic Die Cutting Machine Vertical Paper Creasing Machine

Description
Certification: CE Certificate Max.Sheet Size: 1000*1350mm
Min. Sheet Size: 390*520mm Max.Die-cutting Size: 950*1250mm
Working Speed: 1000-1300s/h Machine Dimension: L5900*W2100* H2100mm
Type: Die-cutting Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Condition: New Warranty: 1 Year
Total Weight: 2400kg
High Light:

1300s h Automatic Die Cutting Machine

,

ml 1300 Automatic Die Cutting Machine

,

Vertical ml 1300 die cutting machine

ML-1300S Automatic Die Cutting Vertical Creasing Matrix Die Making Machine



Main features of construction:



1. The paper feeder adopts air cylinder to separate and merge.



2. The pressure adjustment is driven by a servo motor. The pressure can be adjusted on the touch screen, and it can also be fine-tuned or adjusted without stopping.



3. Oil pump is used for lubrication, and the oil can be recycled and filtered.



4. The transmission of the main engine is controlled by an AC frequency converter, and the pneumatic clutch device is used for starting and braking, so that the machine can be operated freely under any circumstances, and the safety is higher.

 1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 0



 Products Description​

PARAMETER
Model ML-1300S
Max. sheet size 1000*1350mm
Min. sheet size 390*520mm
Max. die cutting size
950*1250mm
Suitable sheet thickness 0. 2-5.0mm
Feeding pile height
1100mm
Delivery pile height

800mm

Motor power 5.5KW
Total power 9KW
Working speed 1000-1300s/h
Total weight 2400kg
Machine dimension L5900*W2100*H2100mm



1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 1

1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 2





1300s H Ml 1300 Automatic Die Cutting Machine Vertical  Paper Creasing Machine 3

FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
