Product Details:
|
| Max.Sheet Size: | 830*1200mm | Min. Sheet Size: | 360*460mm |
|---|---|---|---|
| Max.Die-cutting Size: | 800*1160mm | Motor Power: | 4.5KW |
| Total Power: | 7.5KW | Working Speed: | 1000-1500s/h |
| Machine Dimension: | L5900*W2100* H2000mm | Type: | Die-cutting Machine |
| Certification: | CE Certificate | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 4.5KW automatic paper creasing machine,1200mm automatic paper creasing machine,830mm plastic paper cutting machine |
||

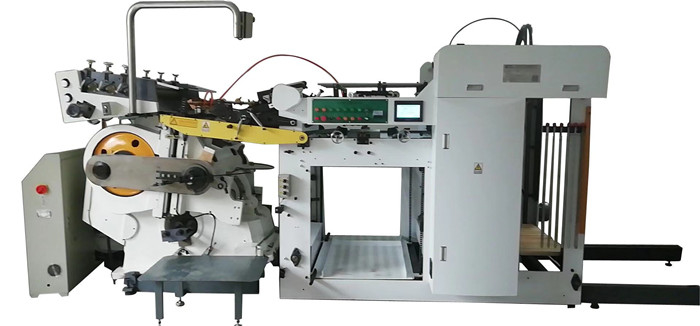

ML-1200S Automatic Creasing Machine For Paper Carton And Paper Cardboard In China
Product Overview
ML-1200s automatic die-cutting machine is composed of four major parts: main engine, automatic paper feeding mechanism, die cutting part and electrical control.
The operation process of the main engine is completed by the crankshaft connecting rod mechanism to drive the press frame to reciprocate and the pressure adjustment mechanism. On the main machine, after installing the hot stamping mechanism and connecting with the automatic paper feeding mechanism, the working cycle of automatic paper feeding - die cutting / hot stamping - peeling and receiving can be performed.
The electrical control box adopts an advanced PLC control system, and its main components are provided by famous foreign companies.
Products Description
| PARAMETER | |
| Model | ML-1200S |
| Max. sheet size | 830*1200mm |
| Min. sheet size | 360*460mm |
| Max. die cutting size |
800*1160mm
|
| Suitable sheet thickness | 0. 2-5.0mm |
|
Feeding pile height
|
1100mm |
| Delivery pile height |
800mm |
| Motor power | 4.5KW |
| Total power | 7.5KW |
| Working speed | 1000-1500s/h |
| Total weight | 2300kg |
| Machine dimension | L5900*W2100*H2000mm |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
