Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine

Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine
Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine

Large Image :  Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: ML-930S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine

Description
Max.Sheet Size: 670*930mm Min. Sheet Size: 350*460mm
Max.Die-cutting Size: 660*920mm Type: Die-cutting Machine
Certification: CE Certificate After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Condition: New Warranty: 1 Year
Highlight:

CE Creasing plastic paper cutting machine

,

930mm plastic paper cutting machine

,

460mm sheet die making machine

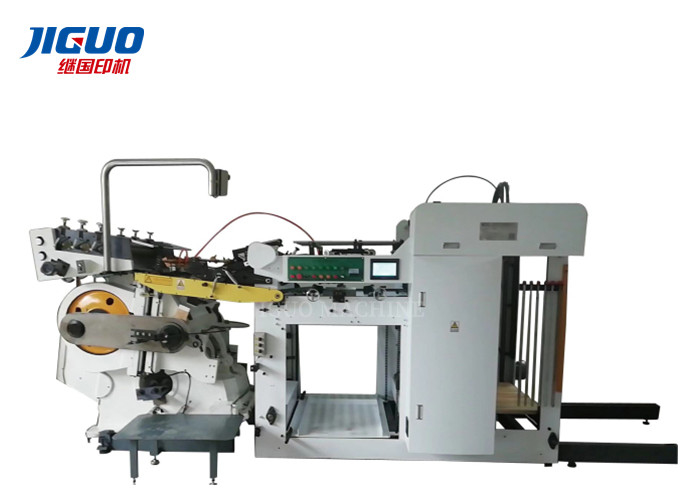

ML-930S Automatic Die Cutting Vertical Creasing Matrix Die Making Machine



The ML-930S automatic die cutting machine is composed of four parts: main motor, die cutting part,auto feeder and electric equip. The machine is designed for embossing, die cutting, hot cutting, creasing etc technology, it’s suitable for paper, cardboard and all kinds of plastic film. To meet the large area of stamping and embossing stamping molding process.



Main Feature



1.The machine is converted into a machine that it can wail foil left-right and up-down.



2.The feeding adopts cylinder to separate and merge.



3.Adjust the pressure adopts servo motor driven,it can be adjusted on the touch screen,and fine-tune,it also can adjust without stopping the machine.



4.Lubrication adopts oil pump,the oil can be recycled filter and use.



5.The main motor adopts alternating current inverter control,starting and braking adopts pneumatic clutch device,so that the machine can be operated in any case freely,and more secure.



 Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine 0

 Products Description​

PARAMETER
Model ML-930S
Max. sheet size 670*930mm
Min. sheet size 350*460mm
Max. die cutting size
660*920mm
Suitable sheet thickness 0. 2-5.0mm
Feeding pile height
1100mm
Delivery pile height

800mm

Motor power 4KW
Total power 7.5KW
Working speed 1000-1700s/h
Total weight 2200kg
Machine dimension L5900*W2100*H2000mm



Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine 1



Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine 2





Vertical Creasing Plastic Paper Cutting Machine 930mm Die Making Machine 3

FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
