Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing
Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing

Large Image :  Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-1050L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-500000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing

Description
Max. Paper Size: 1030*720mm Min. Paper Size: 150×150mm
Max. Film Size: 450×350mm Min. Film Size: 50×50mm
Total Weight: 4000kg Warranty: 1 Year
Machine Speed: Over 7000 Sheets/hour Power Voltage: 380V/50HZ(3Phase)
High Light:

150×150mm paper window box patching machine

,

1030×720mm window box patching machine

,

Window Patching gluing machine

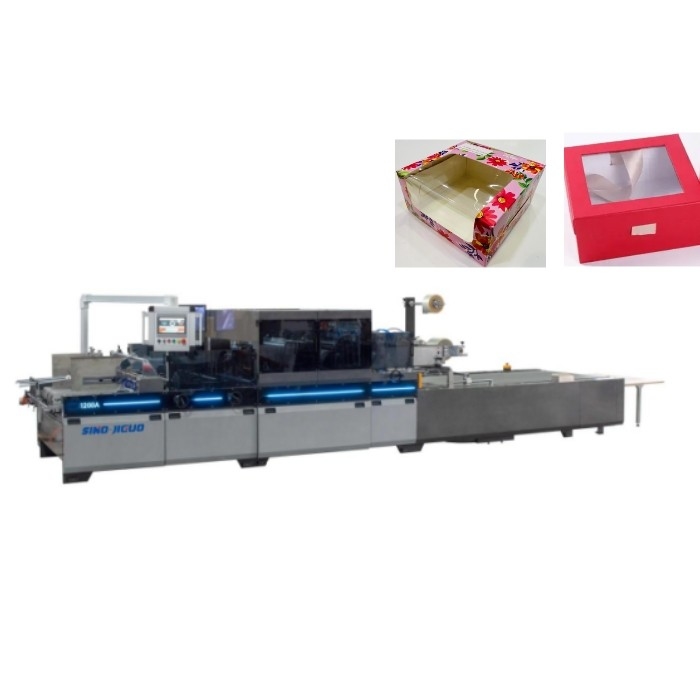

JIGUO TC-1050L Automatic Toy Paper Display Box Window Patching Gluing Machine With Corner V Cut And Creasing



TC-1050L window patching machine is widely used for gluing transparent films on the windows of various carton boxes such as tissue box, medicine box and shirt box, etc. The machine combines following five units: paper sheets feeding unit, positioning adjustment unit, gluing unit, film patching unit, delivery unit. Heavy duty steel structure equipped ensures the machine running in high stability and reliability.



Features



1. Horizontal knife cutting film+Single group film applicator



2. 7 servo motors + Full digital-control



3. 100 groups of order saving and reading



4. One key automatic adjustment of V-punching mould



5. Paper receiving stepper with batch counting



6. Paper vacuum adsorption transport



7. Double sheet / empty sheet gluing rising automatically



8. Film with creasing and cutting angle function



9. Follow label of film printing surface



10. Film with punching holes



11. Film with transverse creasing (optional)



12. Film constant temperature leveling system (optional)

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 0



Specifications

PARAMETER
Model TC-1050L
Max. Paper Size
1030×720mm
Min. Paper Size 150×150mm
Max. film Size
450×350mm
Min. film Size
50×50mm
Suitable Paper Thickness
Cardboard:200 ~ 2000g/ ㎡
Corrugated board:1-6mm
Film Thickness
0.1 ~ 0.3mm
Positioning Accuracy Top/bottom±0.5mm left/right±0.1mm
Machine Speed
Over 7000 Sheets/hour
Power Voltage
380V/50HZ(3Phase)
Total Weight
4000KG



Local Display

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 1

Paper Feeding Section:

The Paper Feeding Belt of the machine adopts the Japanese Brand Nita which well solves the problem of unsmooth UV printing paper feeding. The paper feeding is realized through bottom belt with the vacuum absorption function. Driven by Servo Motor enables it to switch among multiple paper feeding modes.



Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 2

Paper Transmission Correcting Rail:

The track with self-locking linear bearing is free to slide. It takes the place of traditional slow screw-driving hand-shaking regulation. The chains orbits which contain high polymer nylon material are in high wear resistance and low noise .Correction pin adopts servo motor separately driving.

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 3

Gluing Section:

The gluing roller is made from 304 Stainless steel material which is in high corrosion resistance and is easy to clean.
Transverse and longitudinal gluing model roller are driven by servo motor which can realize the dual-directional regulation
directly without stopping. The gluing part is equipped with the automatic lifting function. It avoids the glue touching the belt
which reduces the trouble of frequently machine stop for cleaning because of the lack for paper problem.

Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 4

Film Patching Section

Transverse cutting knife is driven by servo motor with high cutting angle precision control. Compared with traditional cylinder Driving.It has got the advantages of low noise, high speed with the angle able to control etc. Roller absorption continuous pasting is in higher speed and requires less towards film compared with traditional intermittent pasting way. The pasting roller is separately driven by servo motor and can freely adjust the film pasting position under machine running circumstances.



Toy Paper Window Box Patching Machine Automatic V Cut Creasing Gluing 5



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
