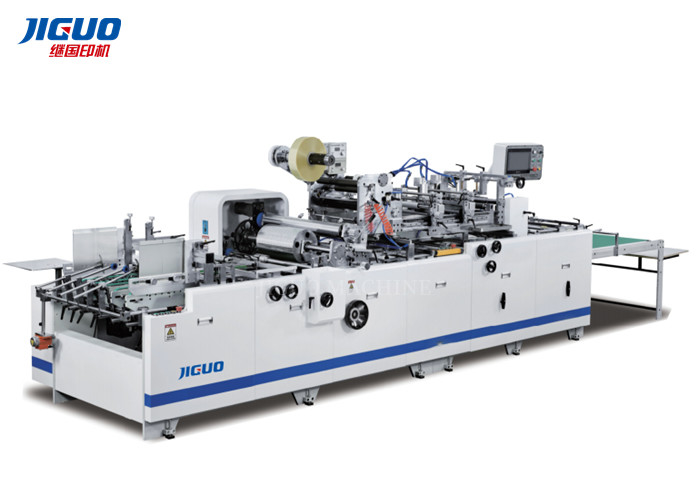

JIGUO TC-750L Automatic Window Patching Machine With Corner Cutting & Creasing Function ( V Cutting )



JIGUO TC-750L Automatic Window Patching Machine With Corner Cutting & Creasing Function ( V Cutting ) has been the latest model pushed to market.The whole machine is equipped with 7-10 servo motors and 8-10 stepping motors with all digital control function through which you only need to micro adjust the parameters during running. It has got the memory and saving functions for customer order documents. One key to adjust the repeated products or the replacement order with the fastest adjustment time of 10 minutes. Optional equipped with online diagnostic control function. This machine can realize the double creasing&cutting, auto gluing and patching film. It is also equipped with multi-sensor detection of each station, real-time monitoring of running state and abnormal speed reduction alarm functions etc.



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 0



Specifications

PARAMETER
Model TC-750L
Max. Paper Size
730×620mm
Min. Paper Size 150×150mm
Max. film Size
350×300mm
Min. film Size
50×50mm
Suitable Paper Thickness
Cardboard:200 ~ 2000g/ ㎡
Corrugated board:1-6mm
Film Thickness
0.1 ~ 0.3mm
Positioning Accuracy Top/bottom±0.5mm left/right±0.1mm
Machine Speed
Over 8000 Sheets/hour
Power Voltage
380V/50HZ(3Phase)
Power
8.5KW
Total Weight
3000KG
Overall Dimension 6800*1400*1700mm



MAJOR FUNCTION



1. Horizontal knife +Hob cutting film + double film feeding+Double group film applicator


2. 10 servo motors + Full digital-control


3. 100 groups of order saving and reading


4. One key automatic adjustment of V-punching mould


5. Paper receiving stepper with batch counting


6. Paper vacuum adsorption transport


7. Double sheet / empty sheet gluing rising automatically


8. Film with creasing and cutting angle function


9. Follow lable of film printing surface


10. Film with punching holes


11. Film with transverse creasing (optional)


12. Film constant temperature leveling system (optional)


13. Tissue box film middle cut (optional)



LOCAL DISPLAY





150×150mm Paper Window Patching Machine Corner V Cutting Creasing 1

1. Man-machine interface

This machine uses a 7-inch touch screen display and a host computer (PLC) to digitally adjust the film length and count.



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 2 2. Feeding
The paper feeder parts is controller by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life ,process the paper products to the conveying parts steady and orderly. Perfect for the cardboard and corrugated



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 3 3. Conveying Parts
Double paper servo control
The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection.



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 4 4. Gluing Parts
The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirement and the gluing position ,save the gluing quantity, it is easy for pulling out the gluing parts,convenient for washing. The gluing roller stopped the gluing when stopped the machine. And the conveying parts dropped automatically, the gluing is not easy to print on the conveyor belts.



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 5 5. Double gluing system
The upper roller is the cutting film roller with the two blade ,one the upper blade, the other is the lower blade, finishing the cutting of the film The below roller is the suction roller, the film is patched on the suction roller Servo film adjustment



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 6 6. Paper Delivery parts
The patching products conveying to the paper delivery plate, finish the paper accumulation and collection Paper delivery parts can
be adjust single.



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 7



150×150mm Paper Window Patching Machine Corner V Cutting Creasing 8
