BOPP Film Laminator Machine Patching Automatic Window Laminating Machine

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine
BOPP Film Laminator Machine Patching Automatic Window Laminating Machine BOPP Film Laminator Machine Patching Automatic Window Laminating Machine BOPP Film Laminator Machine Patching Automatic Window Laminating Machine

Large Image :  BOPP Film Laminator Machine Patching Automatic Window Laminating Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1080KN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine

Description
Max. Sheet Size: 1080*1000mm Min. Sheet Size: 350*295mm
Paper Thickness: Standard Laminating 80-500Gsm Window Laminating >157gsm Film Material: PET/PVC/BOPP/CPP/Metalized Film…..
Machine Speed: 105m/min Place Of Origin:: Hebei, China
Key Selling Points: Easy To Operate Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel,
High Light:

BOPP Film Laminator Machine

,

Patching Film Laminator Machine

,

Automatic window laminating machine

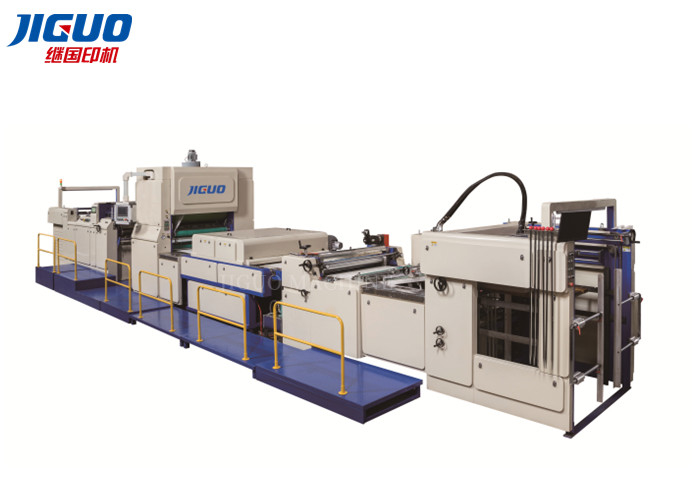

JIGUO FMZ-1080KN Automatic Window Laminating Machine (Window Patching)



vertical series fully automatic laminating machine (water base glue coating dry laminating and thermal laminating dual functions machine), widely applicable for laminating in advertising poster, Picture books and magazine, display book, color paper box, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof.



BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 0



Specifications

PARAMETER
Model FMZ-1080KN
Max. sheet size 1080*1000mm
Min. sheet size
350*295mm
Paper thickness
Standard laminating 80-500Gsm
Window laminating >157gsm
Film material

PET/PVC/BOPP/CPP/Metalized film…..

Height of feeding pile 1060mm
Height of stacker pile 1060mm
Machine speed 105m/min
Working speed
Standard laminating: 80-100 m/min
Window laminating: 50-60 m/min
Working power
25-40kw/h
Total power 100kW
Machine weight 13000kg
Machine Dimension 16000×3000×3100mm



LOCAL DETAILS



1. HIGH SPEED NON-STOP FEEDER PART
1.1 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
1.2 The paper feeding table has upper and lower over-limit protection
1.3 The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding





2. CONVEYING TABLE AND OVERLAP
2.1 The conveying table adopts customized stainless steel corrugated board
2.2 The brush wheel and rubber pressing wheel move smoothly
2.3 Servo motor overlap, improve accuracy of lap, error≤±2mm



3. LAMINATOR HOST
3.1 Glue roller and metering roller are driven by dual independent motors, making adjustment more convenient
3.2 Drying roller diameter increased to 800mm, using electromagnetic heating system.
3.3 The heating press roller adopts a segmented heating system, efficient and energy-saving
3.4 Max pressure of press roller is 12T
3.5 Gluing system Teflon process treatment, easy to clean and non-sticky



4. WINDOW LAMINATING UNIT(OPTIONAL)
4.1 Window coating (optional), composed of gluing machine head and infrared oven. After the paper is glued, it is bonded to the film after passing through an infrared oven.
4.2 Drying unit with 12 pcs IR light, Total heating power 14.4kw.
4.3 When not using window products, this part can be used as a water powder removing device



5. CUTTING PART(HOT KNIFE WITH ROUND KNIFE)
5.1 The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.
5.2 The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials
5.3 The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference
5.4 Hot knife low pressure direct heating and slitting without tail film, detecting paper thickness and slitting, accurate and
efficient



6. NON-STOP COLLECTING PART
6.1 Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process 2.with a reduction
6.2 wheel to prevent the paper from being damaged due to too fast hitting the baffle 3.Counting electric eye, the number of running
6.3 paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated 4.Induction electric eye,
6.4 sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up
machine will overturn and lift the paper



BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 1

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 2

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 3

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 4

BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 5



BOPP Film Laminator Machine Patching Automatic Window Laminating Machine 6



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
