Product Details:
|
Max. Sheet Size: | 1080*1000mm | Min. Sheet Size: | 350*295mm |
---|---|---|---|
Paper Thickness: | 80-500Gsm | Working Speed: | 80-100m/min |
Total Power: | 60kw | Place Of Origin:: | Hebei, China |
Key Selling Points: | Easy To Operate | Machine Speed: | 105m/min |
Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, | Applicable Industries: | Printing Shops, Advertising Company, Packaging Workshop |
Certification: | CE | ||
Highlight: | 1000mm sheet Film Laminator Machine,Feed Film Laminator Machine,1080x1000mm automatic laminating machine |

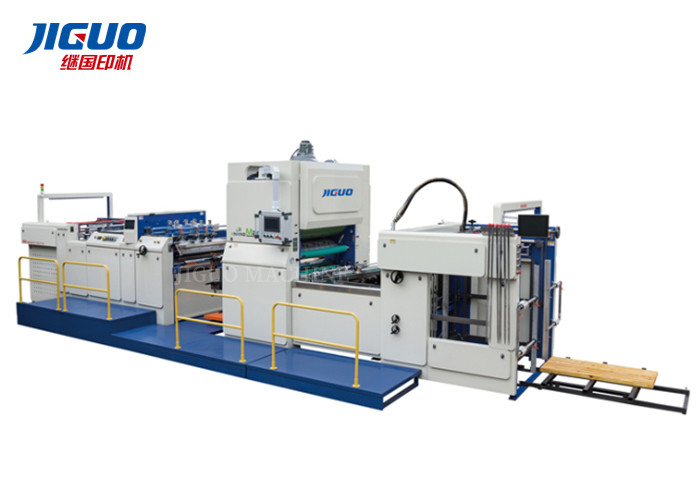

JIGUO FMZ-1080AN Automatic Feed Laminating Machine High Precision Film Laminating Machin
Fully Automatic Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales.
Specifications
PARAMETER | |
Model | FMZ-1080AN |
Max. sheet size | 1080*1000mm |
Min. sheet size |
350*295mm
|
Paper thickness |
80-500Gsm
|
Film material |
BOPP |
Height of feeding pile | 1060mm |
Height of stacker pile | 1060mm |
Machine speed | 105m/min |
Working speed | 80-100m/min |
Working power
|
w25-30kw/h |
Total power | 60kW |
Machine weight | 8500kg |
Machine Dimension | 9000×3000×3100mm |
Local introduction
FEEDING UNIT
1. 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h.
2. The paper feeding table has upper and lower over-limit protection.
3. The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding.
CONVEYING TABLE AND OVERLAP
1. The conveying table adopts customized stainless steel corrugated board.
2. The brush wheel and rubber pressing wheel move smoothly.
3. Servo motor overlap, improve accuracy of lap, error≤±2mm.
LAMINATOR HOST
1. Glue roller and metering roller are driven by dual independent motors, making adjustment more convenient.
2. Drying roller diameter increased to 800mm, using electromagnetic heating system.
3. The heating press roller adopts a segmented heating system, efficient and energy-saving.
4. Max pressure of press roller is 12T.
5. Gluing system Teflon process treatment, easy to clean and non-sticky.
CUTTING UNIT
1. The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.
2. The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials.
3. The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference.
4. Hot knife low pressure direct heating and slitting without tail film, detecting paper thickness and slitting, accurate and efficient.
NON-STOP COLLECTOR
1. Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process.
2. with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
3. Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated.
4. Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
