Automatic Thermal Film Laminator Machine Flying Knife Optional

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

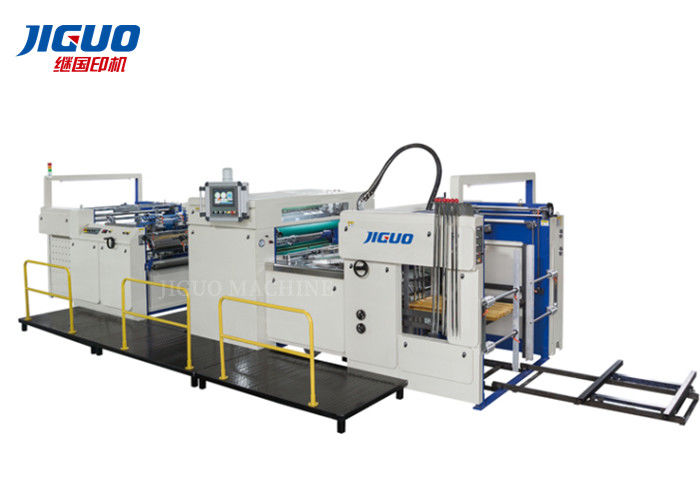

Automatic Thermal Film Laminator Machine Flying Knife Optional

Automatic Thermal Film Laminator Machine Flying Knife Optional
Automatic Thermal Film Laminator Machine Flying Knife Optional Automatic Thermal Film Laminator Machine Flying Knife Optional Automatic Thermal Film Laminator Machine Flying Knife Optional

Large Image :  Automatic Thermal Film Laminator Machine Flying Knife Optional

Product Details:
Place of Origin: China
Brand Name: JIGUO
Model Number: FMZ-1080YAN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Automatic Thermal Film Laminator Machine Flying Knife Optional

Description
Certification: CE Max. Sheet Size: 1080*1000mm
Min. Sheet Size: 350*295mm Paper Thickness: 80-500Gsm
Working Speed: 80-100m/min Total Power: 45kw
Place Of Origin:: Hebei, China Key Selling Points: Easy To Operate
Machinery Test Report: Provided Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel,
Application: Food, Beverage, Commodity, Medical, Chemical, Applicable Industries: Printing Shops, Advertising Company, Packaging Workshop
High Light:

1080mm Film Laminator Machine

,

Flying Knife Film Laminator Machine

,

Automatic thermal film laminating machine

JIGUO FMZ-1080YAN Automatic Thermal Film Laminating Machine (Flying Knife Optional)



Thermal laminator Introduction



FMZ-1080YAN fully automatic thermal lamination machine is designed for thermal (pre-coated) lamination, easy to use without glue coating unit. Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate, with high cost-performance.



Configuration & Functions:



1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.



2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.



3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.



4. Thermal Laminating System:The 360mm diameter mirror laminating roller is equipped with Electromagnetic Heating Device, at the same time supported with Built-in Oil Conduction Heating System, can realize high speed booting and heating, 2 times heating performance than traditional heating device meanwhile save much power consumption.



5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.



6. Man-machine Interface System:Equipped with color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.



7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film, increase laminating performance.



8. Slitting System:Adopt disc knife, coordinated with pneumatic pull and separating device, can slit BOPP and OPP film perfectly.(If you use PET or thin foil, we have Chain knife slitting machine optional.)



9. Anti-Curvature System: Adopt corrugrated delivery and anti-curvature system, especially designed for thin paper, avoid paper curvature.



10. Automatic Stacker:Equipped with IR sensor, automatically count the sheets. Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.





Automatic Thermal Film Laminator Machine Flying Knife Optional 0



Specifications

PARAMETER
Model FMZ-1080YAN
Max. sheet size 1080*1000mm
Min. sheet size
350*295mm
Paper thickness
80-500Gsm
Film material

BOPP

Height of feeding pile 1060mm
Height of stacker pile 1060mm
Machine speed 105m/min
Working speed 80-100m/min
Working power
w20-25kw/h
Total power 45kW
Machine weight 13000kg
Machine Dimension 8500×3000×3100mm



Local introduction



1. Feeder Part

Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min,smoothly without stop, obviously increase the efficience.



2. Delivery Platform
Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, can deliver sheets in high speed without curvature.



3. Hot Powder Cleaning (Optional)
Cleaning printing powder, especially for dark color paper, improve the laminating performance.



4. Lamination Main Part
Adopt 360mm diameter mirror laminating roller, equipped with electromagnetic heating system, high heating speed and performance, 2 times heating performance than traditional oil heating device meanwhile save much power consumption. The hydraulic system automatically provides stable and large pressure to ensure high laminating quality.



Air shaft with dividing ruler, can adjust the position of film roll accurately, easy to load film. The tension of film is adjusted accurately by the tension controller.



Equipped with color touch screen and man-machine control panel, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.



5. Slitting Part
Adopt disc knife, coordinate with pneumatic pull and separating system, can slit BOPP and OPP film perfectly.(If you use PET or thin foil, we have chain knife slitting machine optional)



6. Stacker Part
Automatic stacker, stack sheets in 3 directions fast, makes sheets pile aligned, convenient to transport and ready for next process.



Automatic Thermal Film Laminator Machine Flying Knife Optional 1



Automatic Thermal Film Laminator Machine Flying Knife Optional 2



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
