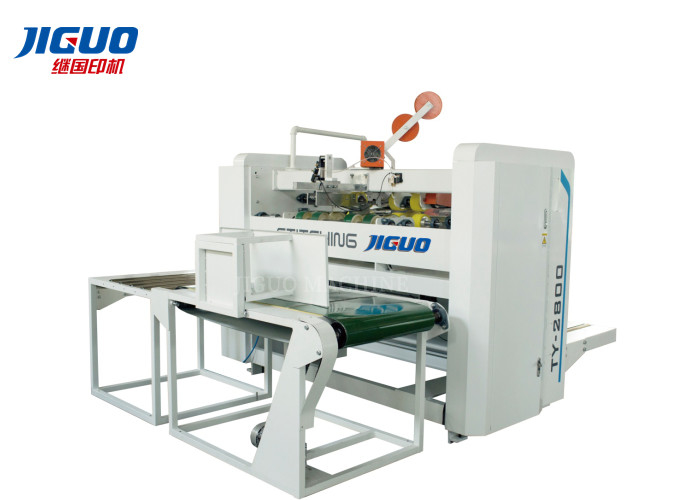

Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet

Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet
Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet

Large Image :  Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TY-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet

Description
Max. Sheet Size(Long+Wide)×2: 2800mm Min. Sheet Size(Long+Wide×2: 720mm
Delivery Paper Height: 900mm Automatic Grade: Semi-automatic
Certification: CE Certificate,CE ISO9001 Power: 4.4KW
Machine Speed: 600stitches/min Suitable Sheet Thickness: 3 And 5 Layer Corrugated Board
High Light:

Corrugated Automatic Box Stitching Machine

,

Cardboard Automatic Box Stitching Machine

,

2800mm sheet Single Piece Stitching Machine

JIGUO TY-2800 Single Piece stitching machine for corrugated cardboard carton box



Usage and Charateristics



1. The semi-auto stitching machine has a double-servo driven part, machinery failure rate is reduced effectively.



2. The machine can be optionally equipped with a rear manual or electric baffle plate driven by a step motor With accurate positioning performance,the rear baffle plate allows the carton stapler to stitch cartons of different sizes, and the machine supports carton size change in a minute.



3. When operate the machine, you can adjust the paper feeding rubber wheel clearance manually or electrically as you like.



4. An intelligent touch screen is mounted to semi-auto stitching machine, which means that you can change the parameters including stitching space, nail quantity, nail type, rear baffle plate position in an easier way.



5. With the machine, you are free to nail with single nail, double-nail or three-nail mode according to your special demands.



6. The machine can also count the paper fed into it(0-999)automatically and when one bundle is completed, it will be sent out automatically for bundling machine and the minimum space between the first nail to the carton edge is 25m auto carton stitching.



7. Carton with cover and carton without cover can both be nailed through this semi-auto carton stitching machine.



8. If no stitching line is available, an alarm will be activated to avoid bad products with omitted nail or less nail.

Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet 0

Specifications

PARAMETER
Model TY-2800
Max. Sheet size(Long+Wide)×2 2800mm
Min. Sheet size(Long+Wide×2 720mm
Max. Sheet size(Wide+Height ) 1600mm
Min. Sheet size(Wide+Height ) 300mm
Delivery Paper Height 900mm
Power 4.4kw
Weight 2000kg
Machine Speed 600stitches/min
Pitch of Nail 30~100mm
Pitch Number 2~99stitches
Suitable sheet thickness 3 and 5 layer corrugated board
Machine Dimension(Long/Wide) 2800×2800mm





Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet 1



Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet 2



Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet 3



Corrugated Cardboard Automatic Box Stitching Machine Single Piece 2800mm Sheet 4



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
