Product Details:
|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation |
|---|---|---|---|
| Dimension(l*w*h): | 7500*4600*2260mm | Type: | Die-cutting Machine,Paper Cutting Machine |
| Computerized: | Yes | Power(w): | 20KW |
| Name: | Die Cutting Machine |
√ Exclusively for laminated board and corrugated board with the newest servo-drive feeding system.
√ Accurate die-cutting from E flute to AB flute.
√ Completed stripping is by stripping system and grip edge waste removal device.
√ Excellent adaptability for small and big production.
√ Reliable safety performance and dual safety security device designed. (Air brake and power-off shutdown devices.)
√ All operation is on the exterior of the machine.
√ High Productivity, Precise Die-cutting, Precise Creasing, Smooth Stripping and Convenient Operation.
Main Features
1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Lead edge feeding paper. The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is. Equipped with light-adjusted device and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper aligning.
4. Automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly. Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.
5. Pneumatic take samples when machine working, can check the die cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.
Products Description
| PARAMETER | |||
| Model | MY-1320Q | MY-1500Q | MY-1680Q |
| Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
| Min. sheet size | 450X465(mm) | 500X465(mm) | 580X500(mm) |
| Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
| Max.cutting speed | 6000s/h | 5500s/h | 4500s/h |
| Die cutting precision | ±0.18mm | ±0.2mm | ±0.25mm |
| Sheet thickness |
200-2000g/㎡(Cardboard) ≤10mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
| Max.pressure | 380T | 400T | 480T |
| Total power | 37kw | 37kw | 38kw |
| Net weight | 22T | 25T | 28T |
| Overall dimension | 8200X4600X2260mm | 9200X5100X2260mm | 9900X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage

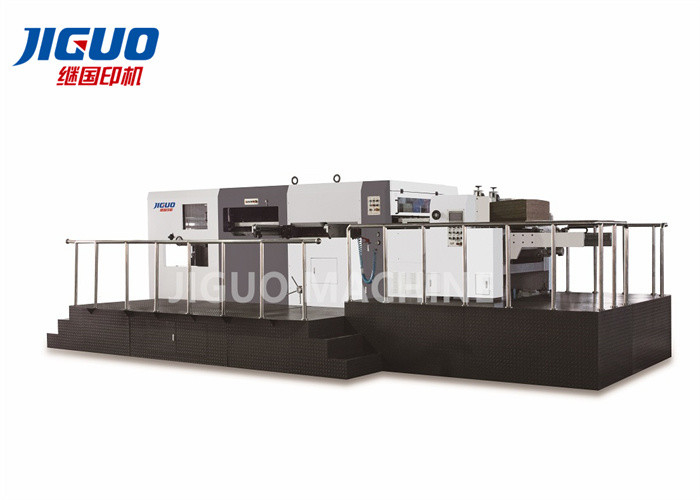

This MY-1680Q automatic die cutting machine for corrugated board is equipped with front conveyor delivery mechanism. The two groups of pressing wheels and two times positioning function will make the products much flatter, and improve the accuracy and speed. The machine’s development is combined with advantages of similar products in domestic and other countries, is ideal equipment for packing products such as cartons and paper box.
Features:
1. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.
2. Frontal, back and side registration mechanism ensures great precision of die –cutting.
3. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
4. The interface can display various digital information of machine such as working speed, amount of paperprocessed, total running timeetc. It is easy to eliminate troubles according to the display of trouble shooting
5. Transducer is adopted to control the main motor in achieving step-less speed variation.
6. Optional: Stripping function.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
