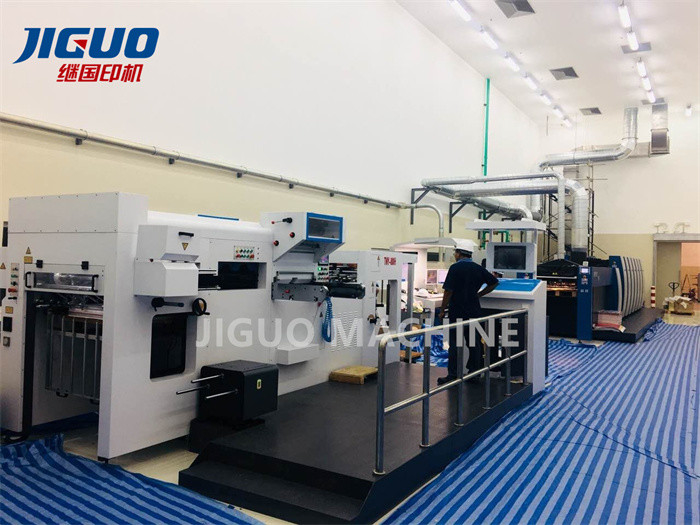

Paper Automatic Hot Foil Stamping Machine 7500s/H Die Cutting Machine

TMY-1320H/1500H High Quality Automatic Hot foil stamping and die cutting machine

JIGUO TMY-1320H can efficiently complete the hot stamping, die cutting and embossing of products, as well as maintaining the highest precision and product quality. JIGUO full-automatic hot foil stamping & die cutting machine are well equipped and almost can adapt to all hot stamping and die cutting requirements of printing products.

Details Specifications:

Advantages of our machine:

1) Paper Feeding Unit

• The enlarged paper feeding head (Feeder head) has 4 suction nozzles applicable for paper in different thicknesses and 2 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 2 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
• By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.
• To improve the working efficiency, paper feeding and collecting are realized by Taiwan WANSHSIN dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

2) Paper Conveying Unit:

• The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
• Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

3) Paper Die-cutting Unit

• Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
• Automatic pressure control make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.
• Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.
• It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.
• Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.
• Gripper bar chains are imported from Germany, to ensure the service life and stable die cutting precision.
• Taiwan intermittent institutions is the main transmission requirements for die-cutting machine, it can improve die cutting speed, die-cutting precision, lower noise. Using home-made intermittent cannot reach the speed and precision on this level.
• Torque limit device can do overload protection, in overload situation, master-slave separation will guarantee safety of machine in operating. Italian imported pneumatic brake clutch, and Japan SMC rotating adapter, satisfies European standards, clutch rapidly, great strength smoothly, long life and low noise.

4) Foil Stamping Unit

• The foil can step in both cross and longitudinal two directions (2 transverse rollers and 3 longitudinal rollers), which can greatly meet different client's needs in various stamping.
• The foil can step, which greatly meet client's needs in various stamping. 12 heating zones can be set individually and in constant temperature.
• Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.
• The adoption man-machine interface monitors to show the system, making the machine circulate the appearance to be clear at a glance; breaking down the manifestation, breaking down the exclusion with proficiency, real realizes person machine dialogue, person machine exchanges.
• PLC and many electronic components are famous imported brand, which insure the machine to be safe and reliable.
• Adopting imported servo-motor and computer for foil control system, the foil conveyed synchronal, tension is constant and the transmission leapfrogging is more accurate.

 5) Delivery Unit

• Automatic vacuum paper, orderly and clean
• Non-stop delivery gate plate can improve efficiency. When the paper stack is high enough, we can pull out the collect cardboard and push-in another piece deceive paper gate plate to change at the same time, thus achieved the non-stop delivery.
• Pneumatic sampling, which are accessible at any time to check the die cutting paper, very convenient.

6) Electrical Unit

• Imported numerical control system with 15’’LCD touch-display terminal is convenient for data input and control.
• The machine has all servo controller system will control five rollers leapfrogging and twelve heating zones pressure.
• Electric control system adopts Germany SIEMENS PLC computer automatic controller, it has function of full-automatic detection and control from giving paper, lose paper to die cutting, deceive paper.
• The man-machine interface display system can display various working conditions, point out that the fault location and put forward the corresponding solutions
• It is equipped with various safety protection devices. When one unit is at fault, there will be an acousto-optic alarm, and automatic stop to ensure safety of both man and machine.
