Corrugated Folder Gluer Machine

Corrugated Folder Gluer Machine
Corrugated Folder Gluer Machine Corrugated Folder Gluer Machine Corrugated Folder Gluer Machine

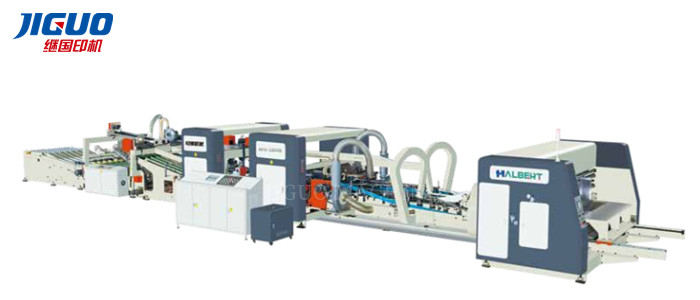

Large Image :  Corrugated Folder Gluer Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Model Number: AFS-2800B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Corrugated Folder Gluer Machine

Description
Certification: CE Certificate,CE ISO9001 Type:: Gluing Machine
Packaging Material:: Paper Key Selling Points:: High Productivity
Machine Width: 4595 Stitching Speed(Nails/Min): 1100
Weight:: 22T Driven Type: Electric
Packaging Type: Cartons Warranty: 1 Year
Name: Corrugated Carton Folder Gluer Machine,auto Box Folder Gluer Machine/box Folding Gluing Machine,Cheap Carton Box Fully Automatic Paperboard Folder Gluer Machine Box Forming: Either Side Folds; Both Sides Fold; Bottom Fold,4/6 Corner Box,Folder Gluer
High Light:

Corrugated Folder Gluer Machine

,

Stitching Folder Gluer Machine

,

Paperboard folding gluing machine

AFS-2800B Automatic Stitching And Folder Gluer Machine

Corrugated Paperboard Folding Gluing Machine

Function and features



1.The whole machine's steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable.


2.It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer.


3.Adopts PLC and frequency speed regulator.


4.New human-oriented design, easier operation, decreased test run time, better university, various complicated box making.


5.Can be applied to crash lock box, pre-fold box and straight line box.


6.Adopts cold and hot-melt glue system(optional).

Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .



It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.



Corrugated Folder Gluer Machine 0

Specifications

PARAMETER
Model AFS-2800B
Max. Paper Width 1200mm
Min. Paper Width 300mm
Machine Width 4595
Machine Length

Stitching 15.5m

Stitching/Folder Gluer 18.1m

Max. Paper Length 2800mm
Min. Paper Length 850mm
Max. TS Width 40mm
Power Required 28.5Kw
Installation Area 18100×4595mm
Stitching Speed(Nails/Min) 1100
Machine Weight 22T
Pitch of Nails for Single Nail and Double Nails (Min.-Max.) 30-90mm
Pitch of Nails for Intensive Nail(Min.-Max.) 30-70mm
Paste Speed 130 Meter/Min
Air Pressure 0.6-0.8Mpa



Production Component



1. Paper feeding department



* Adopting the leading edge of the belt suction paper feeding way, accurate and reliable.



* Using high-grade electromagnetic clutch and electromagnetic brake system,so that the paper feeding part can be controlled

independently,simple and reliable operation.


* The height of the press wheel can be adjusted.Suitable for cardboard thickness of 2-8mm.


* With the folding section linkage, frequency conversion speed regulation.


* The front baffle of the paper feeding department and the paper belt are adjustable.



2.Stapling department



* Imported double servo driving,accurate,reduced mechanical transmission,can effectively prevent mechanical failure rate.


* Using touch screen operation,parameters (stitching distance, nail number, stitching type, tailgate) can be changed easily and quickly.


* The whole control system adopts Taiwan Yonghong PLC control system.


* All switches in the electric control box adopt Schneider brand.


* Bottom die,blade made of German tungsten steel (wear - resistant).


* The whole nail head is made of special steel and precision machined by computer.


* One minute size change, simple operation without experience, can stitch single nail, double nail, reinforcing nail.


* The paper feeding part counts automatically and sends out automatically after forming a bundle for easy binding.


* The nail distance can reach 100mm,can set on the display screen,can staple covered and uncovered carton.


* The cardboard thickness can be directly adjusted.



3.Automatic gluing part



* Automatic gluing part adopts full electric control,automatically adjust the gluing position according to the size of the cardboard.


* The gluing width of the carton is 20-25mm, and the lower gluing method.


* The glue box can be moved left and right according to the type of carton.


* Gluing volume can be adjusted,stable,high capacity,easy to maintain.


* All the materials are pure stainless steel,never rust,resistant to various types of corrosion.



4.Automatic Folding Department



* Automatic folding adopts full computer control,according to the size of the cardboard, automatically adjust the folding position and ganged with feeding unit,frequency control.



* Adopt imported high-friction belt and synchronous belt to transport paperboard,folding automatically,effectively avoid the phenomenon of scissors mouth caused by different cardboard thickness or different belt tightness on both sides.



* The feeding speed is synchronized with folding of the main machine, variable frequency speed regulation, can be controlled separately.



* After entering the size when replacing the product, It can be adjusted automatically. Convenient and fast.



* Indentation wheel, indentation knife, side wheel, slapping board, etc. can well control the occurrence of scissors mouth.



Corrugated Folder Gluer Machine 1



Corrugated Folder Gluer Machine 2Corrugated Folder Gluer Machine 3



Corrugated Folder Gluer Machine 4





FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
