Product Details:
|
Product Name: | Computer Programmed Die Cutting & Stamping Machine | Usage:: | Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather |
---|---|---|---|
Max. Sheet Size: | 1300*920 | Machine Speed (Strokes/Min: | 18±2 |
Total Power (kw): | 32KW | Total Weight: | 5600Kg |
Machine Pressure: | 380 Tons | Max.Foil Stamping Size: | 1280*900 |
Highlight: | 380 Tons Die Cutting Creasing Machine,Programmed Stamping Die Cutting Creasing Machine.,TYMB 1300 sample cutting machine |

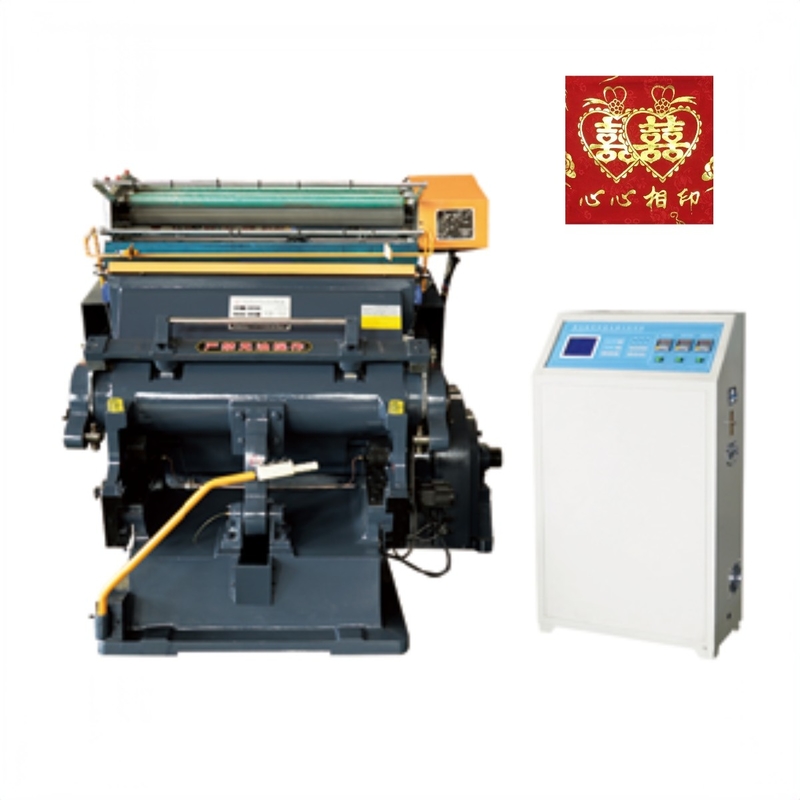

JIGUO TYMB-1300 Computer Programmed Stamping Die Cutting & Creasing Machine Sample Cutting Machine
Machine Introduction
The machine consists of motor seat, pressing frame, electromagnetic clutch transmission, electrical control components. Motor is located in the back right side of the machine, through the Vbelt reduction drive. Drag the flywheel running. Electromagnetic clutch flywheel and shaft coupling. Pull through the electromagnetic clutch, disengaging operation or braking operation of the control shaft. After the operation of the drive shaft, through a reduction gear speed reduction system, the crank shaft at both ends ofthe wheel rotational speed, so affecting the connecting rod
drives the reciprocating rocking motionswing frame completely Creasing task. Paper features a threestep jump, Story or aluminum foil can be
reversed,computer-controlled heat evenly.
Features
1.Sliding Bearings are made of high quality alloy,thus to get the character of antifriction and shock absorption.
2.The frame is made of high alloy,it has high strength and the same type continuous.
3.There are three fuctions:single,continuous and delay time,the time can be adjusted from 0.1s to 9.9s.
4.Flywheel torque is big ,so the pressure is lager.
5.Single plate electronic clutch is sensitive and reliable.
6.Operating position height is rational designed,moving-frame has a big open angle.
Products Description
Main Parameters | |
Model | TYMB-1300 |
Max. Sheet Size | 1300X920(mm) |
Max.Foil Stamping Size | 1280X900(mm) |
Foil Roller Number | 3 Rollers |
Foil-Delivered Length
|
920mm
|
Heating Plate Zone Number | 3 Zone |
Range of Skip order |
0-99 time |
Machine Speed (Strokes/Min) | 18±2 |
Motor Power(kw) | 7.5KW |
Total Power (kw) | 32KW |
Machine Pressure | 380Tons |
Total weight | 5600kg |
Dimension | 2600*2100*2500mm |
We have full series die cutting machine as your refer:
No. | Model No. | Max. sheet Size(mm) | Weight (kg) |
1 | TYMB-750 | 750X520 | 2000kg |
2 | TYMB-930 | 930X670 | 3000kg |
3 | TYMB-1100 | 1100X800 |
4000kg
|
4 | TYMB-1300 | 1300X920 | 5600kg |
5 | TYMB-1500 | 1500X1050 | 6800kg |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one year (12 monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
